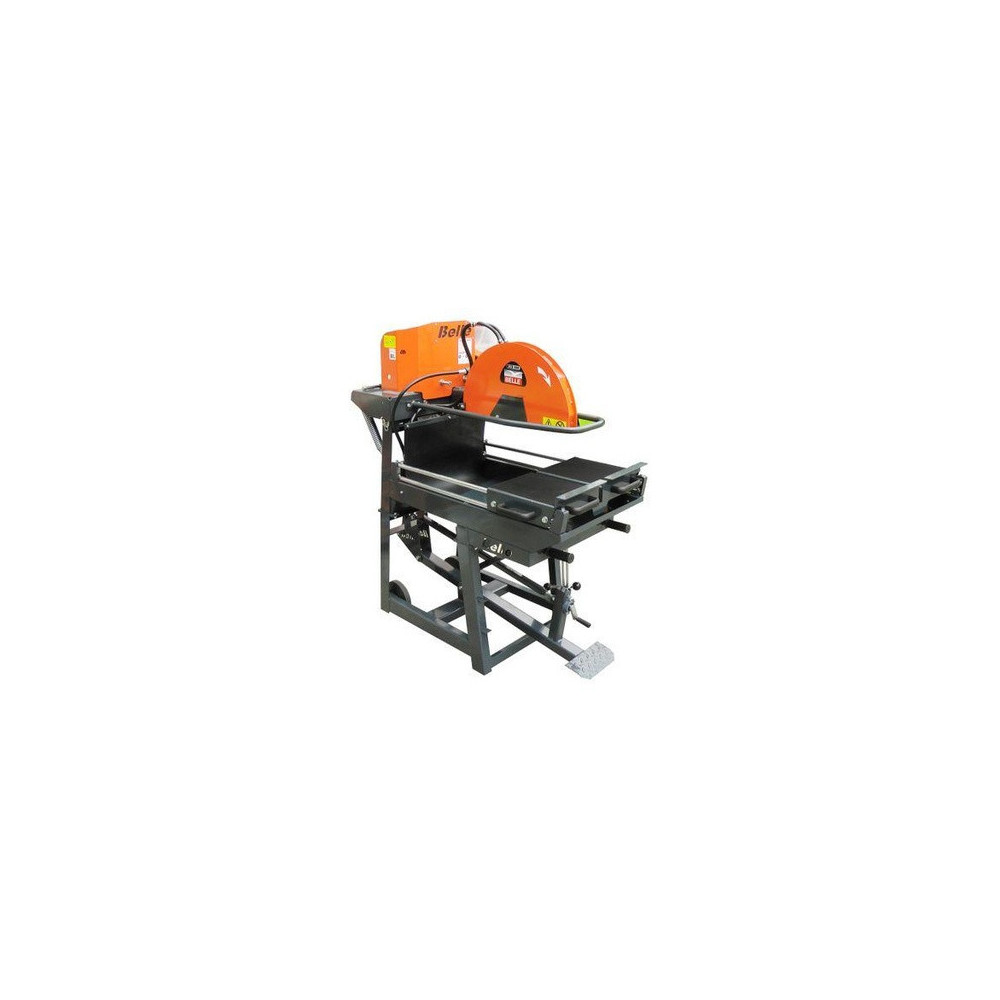

Altrad Belle Ambassador 500 table saw - Honda GX160 engine
Reference
MS501
Reference
Availability
Technical Data
- Weight: 202,5 kg
- Engine power: 4,1 kW / 5,5 KM
- Voltage: 400 V
- Engine: Honda GX 160
- Model: Ambassador 500
Altrad Belle Ambassador 500 table saw - Honda GX160 engine - reliability and performance in one
The Altrad Belle Ambassador 500 table saw with Honda GX160 engine is an indispensable tool for professionals. Its versatility makes it ideal for a wide range of applications, including cutting hollow blocks and other building materials. The device is designed for high performance and reliable operation in harsh conditions, making it an ideal choice for both construction companies and individual contractors. Stability, power and precise operation are a guarantee of efficiency during the execution of each cut.
Compact solution with modern features
The 4.1 kW / 5.5 hp Honda GX160 engine used in the saw provides optimal performance and stability for long-term use. The machine is powered by 400 V, which guarantees low energy consumption while maintaining efficiency. The saw offers a maximum cutting depth of up to 195 mm and a maximum cutting length of up to 560 mm, making it easy to work with materials of different dimensions.
Thanks to the blade with a diameter of Ø 500 mm, it is possible to precisely cut heavy materials weighing up to 50-70 kg - without the risk of damaging the machine. The robust design ensures full stability even during advanced work. With a speed of 2256 rpm it is possible to process materials quickly and accurately, which significantly reduces operating time and increases the efficiency of the entire process. The whole is complemented by effective electrical protection with the symbol IP 44, which further protects the equipment from damage.
The device also features ergonomic working dimensions of 715 x 1590 x 1410 mm and a weight of 202.5 kg, providing a balanced weight-to-strength ratio. Optimization of work is further supported by the possibility of using a generator set with a minimum power of 13 kVA. The Ø 25.4 mm bore disc makes installation and replacement of cutting tools easier and faster, significantly reducing downtime.
Altrad Belle Ambassador 500 table saw - available at NORWIT.PL!
Order Altrad Belle Ambassador 500 table saw at NORWIT store and benefit from professional service and warranty. We also offer a wide range of other construction tools in the category Saws for hollow blocks 500 - 1000 mm. Check out our offer now!
Data sheet
- Weight
- 202,5 kg
- Engine power
- 4,1 kW / 5,5 KM
- Voltage
- 400 V
- Engine
- Honda GX 160
- Model
- Ambassador 500
- Speed
- 2256 obr/min
- Maximum cutting length
- 560 mm
- Disc diameter
- Ø 500 mm
- Dimensions of the table
- Brak danych
- Maximum depth of cut
- 195 mm
- Working dimensions
- 715 x 1590 x 1410 mm
- Minimum power of the generator set
- 13 kVA
- Disc bore diameter
- Ø 25,4 mm
- Maximum weight of cut material
- 50-70 kg
- Electrical protection
- IP 44
- Maximum thickness of cut material
- Brak danych
- Engine type
- Spalinowy
12-miesięczna Gwarancja na Produkty Altrad Belle
Firma Altrad Belle zapewnia swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Oznacza to, że każda maszyna zakupiona od Altrad Belle jest objęta pełną ochroną przez rok od daty zakupu.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, co zapewnia bezproblemowe użytkowanie przez cały okres ochrony.
