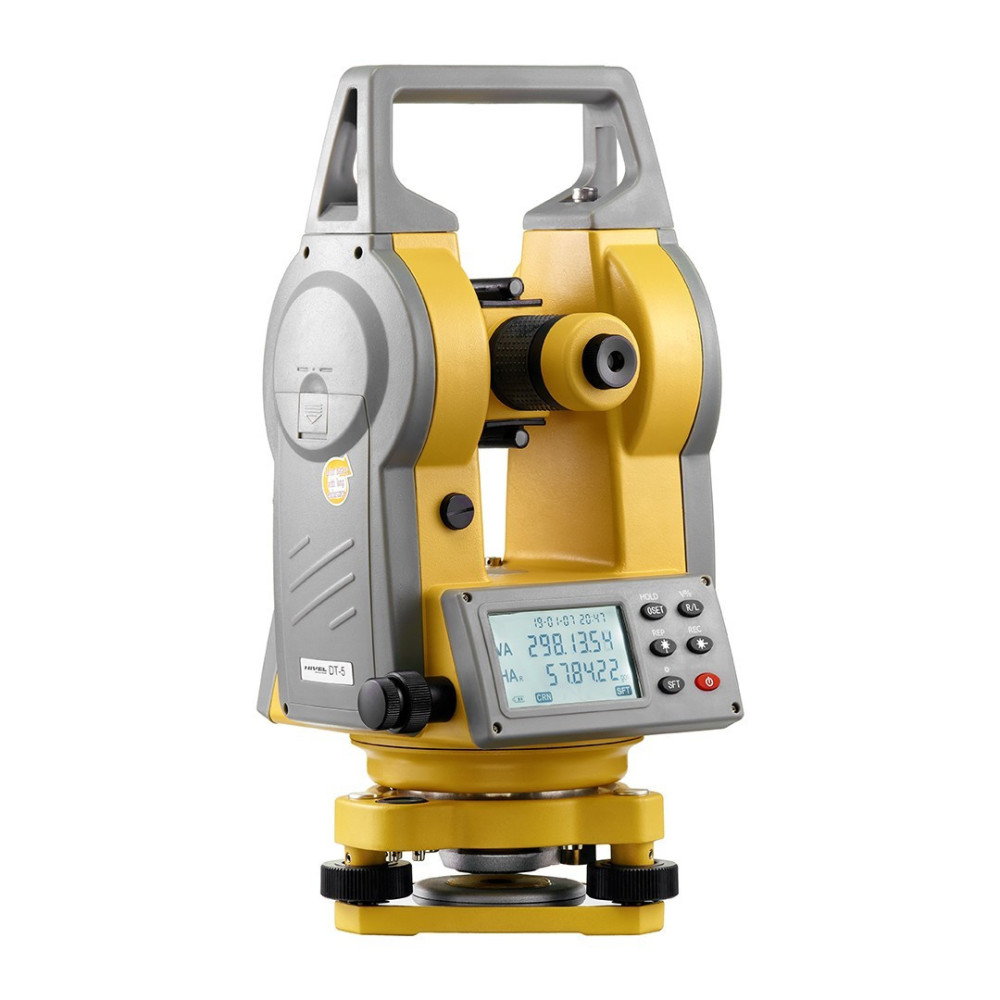

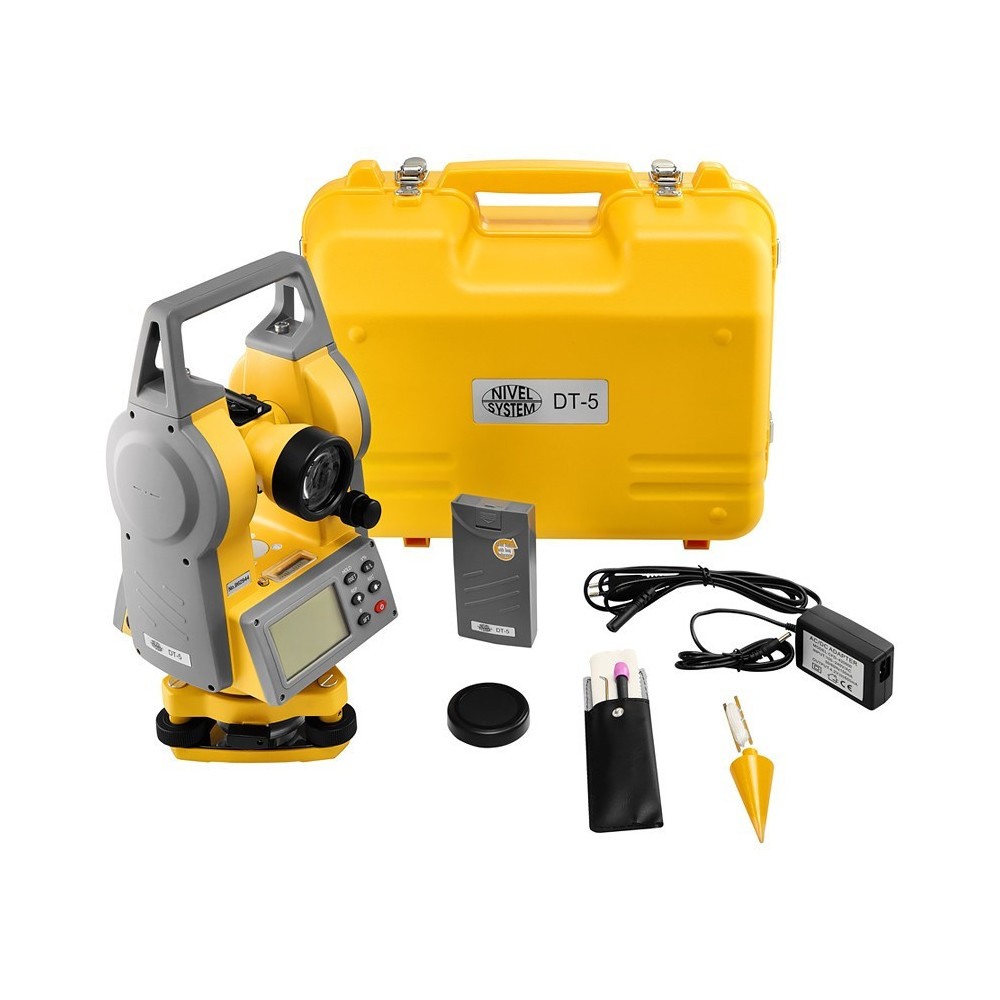

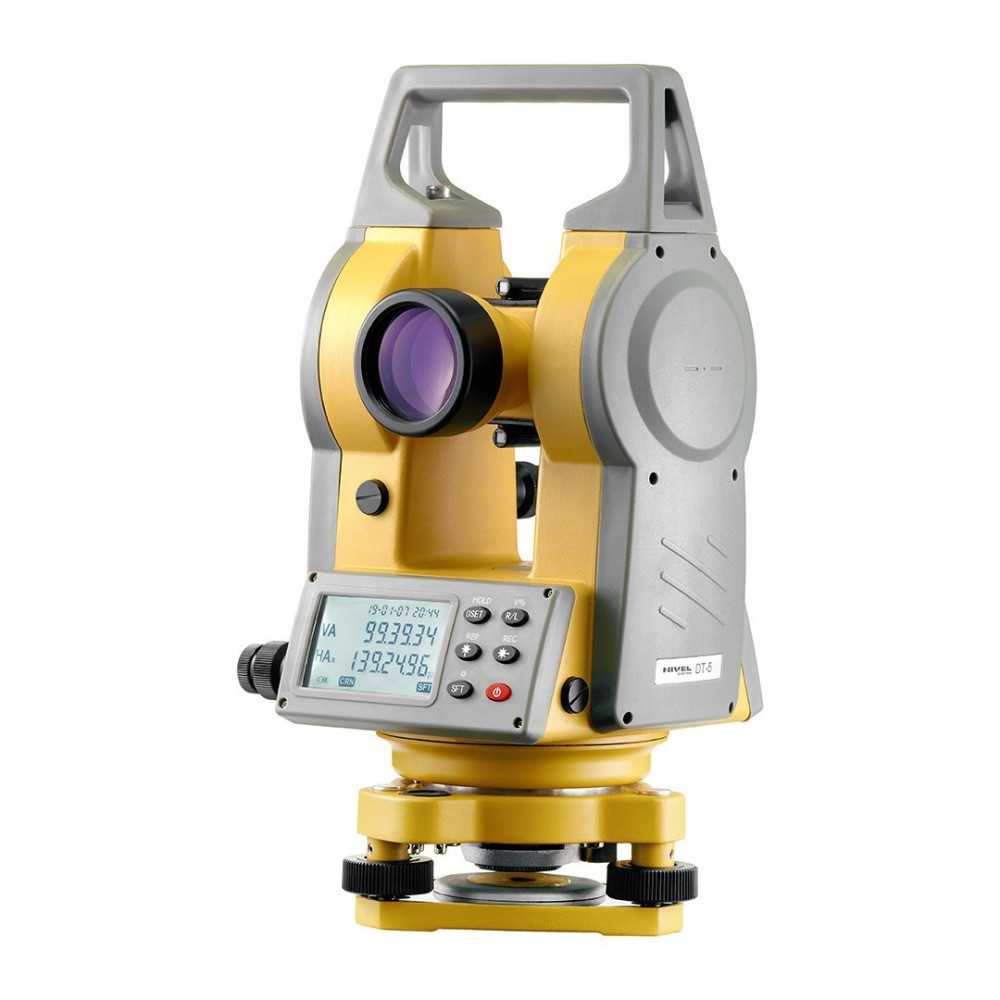

Electronic theodolite Nivel System DT-5

Name: Electronic theodolite Nivel System DT-5
Brand: Nivel System
SKU: DT-5
Price: 3987 PLN
Availability: BackOrder

Reference

DT-5

Questions & Answers

Availability

Shipping from supplier warehouse

Technical Data

Weight: 5 kg
Dimensions: 345 x 190 x 155 mm
Brand: Nivel System
Power supply: Akumulator (3,7 V)
Operating temperature range: -20 °C do +50 °C

Full Specifications keyboard_arrow_down

zł3,987.00 tax incl. 3241,46 zł tax excl.

In installments from: 79,74 zł

Availability

Shipping from supplier warehouse

Technical Data

Weight: 5 kg
Dimensions: 345 x 190 x 155 mm
Brand: Nivel System
Power supply: Akumulator (3,7 V)
Operating temperature range: -20 °C do +50 °C

Full Specifications keyboard_arrow_down

In installments from: 79,74 zł

Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!

Free delivery over PLN 1,500

24 years on the market

Own warehouse 1200 m²

Returns up to 14 days

Nivel System SJJ1 tripod

zł198.00 tax incl. 160,98 zł tax excl.

Electronic theodolite Nivel System DT-5 - precise measurement in all conditions

Nivel System DT-5 electronic theodolite is a professional tool created for surveyors and construction workers who value accuracy (5"), reliability and comfort of work. Its versatility makes it ideal for precise angular measurements on construction sites, in industry or in field work. Equipped with modern features and robust construction, it impresses with its durability and intuitive operation.

Compact design with advanced technical features

The Nivel System DT-5 theodolite combines precision with performance. Its compact dimensions of 345 x 190 x 155 mm and lightweight design of 5 kg allow it to be easily carried even in difficult conditions. Thanks to its rechargeable battery (3.7V), the device operates effectively over a wide temperature range of -20°C to +50°C, making it reliable in all weather conditions.

Advanced optical features, such as the scope' s 30x magnification, 155mm scope length, 45mm objective diameter, and 1.5m minimum focal length, guarantee exceptional precision and a wide 1°30' field of view. A single-axis compensator with a working range of ±3' and a resolution of 2.5" facilitate fast and accurate leveling. With an IPX6 rating, the design is resistant to water and dust, increasing equipment life and reliability on the construction site.

Equipped with a detachable saucer type, the device allows for easy attachment and stability during measurements. This precision tool is suitable for both complex leveling projects and everyday professional challenges.

Electronic theodolite Nivel System DT-5 - available at NORWIT.PL!

Choosing Nivel System DT-5 in our store, you get a guarantee of the highest quality, professional service and access to warranty service. Also check out other products from the levelers category and find the perfect device for you! We invite you to shop at NORWIT.PL!

Reference DT-5

Data sheet

Weight: 5 kg
Dimensions: 345 x 190 x 155 mm
Brand: Nivel System
Power supply: Akumulator (3,7 V)
Operating temperature range: -20 °C do +50 °C
Leveling accuracy: 5"
Resistance class: IPX 6
Minimum focal length: 1,5 m
Field of view: 1°30'
Scope length: 155 mm
Scope magnification: 30x
Lens diameter: 45 mm
Image: Prosty
Compensator operating range: ± 3'
Resolution: 2,5"
Built-in compensator: Jednoosiowy
Type of saucer: Odłączalna

Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia

Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.

Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
