Husqvarna Construction · Cat. no. 967913402

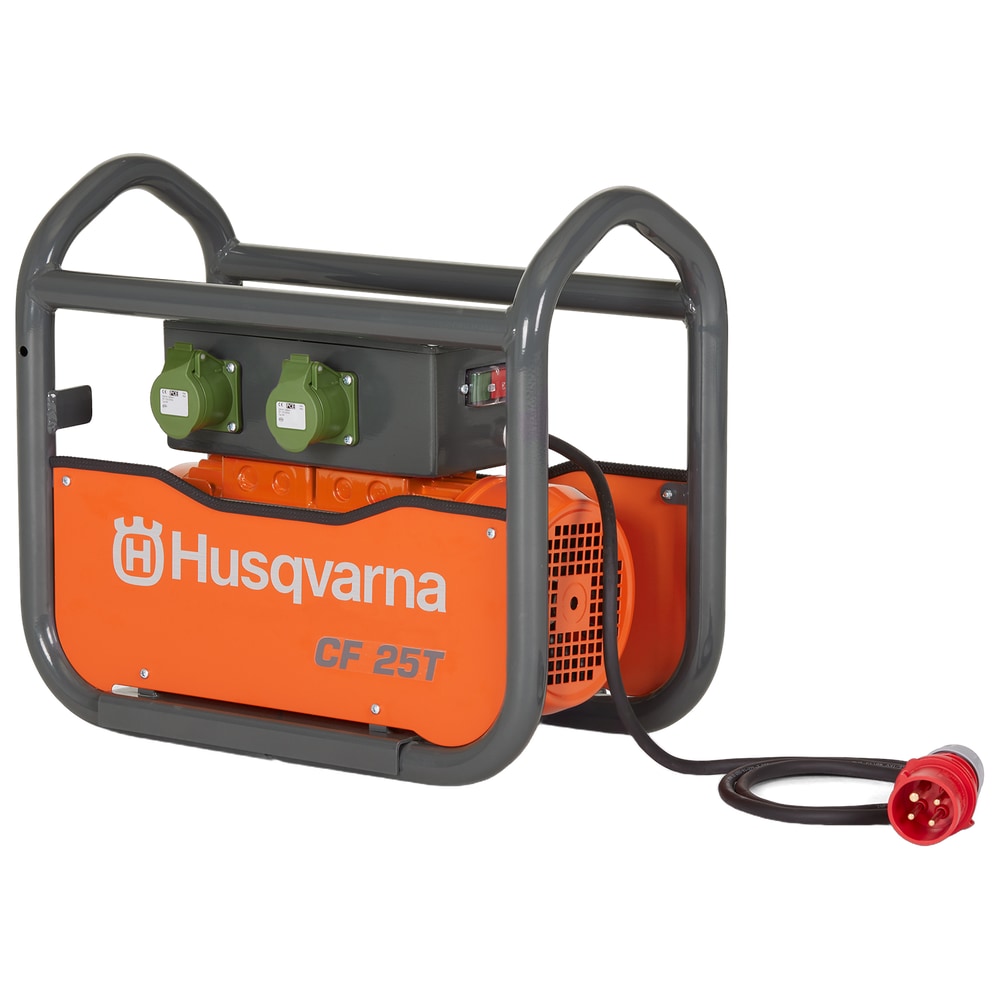

Husqvarna CF25 Frequency Converter

31 kg
4,6 a / 25 A
50 hz / 200 Hz
Elektryczny

zł4,725.63 net

zł5,812.52 gross

Leasing for businesses

from zł157.82 net / month

Indicative calculation · you set the terms

Zasilanie: 400 V (CF25T)

Ordering several variants? Table of 2 variants

On order

sourced from the supplier

Ships in about 1 day

from the order date

Arrives a day after dispatch

we will confirm the date with your order

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Ordering several variants?

2 variants · prices per unit · stock as of today

Zasilanie	Cat. no.	Net price	Gross	Availability	Quantity
230 V (CF25M)	967938701	zł5,057.21	zł6,220.37	approx. 1 day	0
400 V (CF25T)	967913402	zł4,725.63	zł5,812.52	approx. 1 day	0

Accessories

Wibrator pogrążalny Husqvarna AX36 (5 m)
zł4,100.47 netzł5,043.58 gross
Wibrator pogrążalny Husqvarna AX40 (5 m)
zł3,931.52 netzł4,835.77 gross
Wibrator pogrążalny Husqvarna AX65 (5 m)
zł4,688.87 netzł5,767.31 gross
Wibrator pogrążalny Husqvarna AX90 (3 m)
zł10,685.90 netzł13,143.66 gross
Wibrator pogrążalny Husqvarna AX48
zł4,145.15 netzł5,098.53 gross
Wibrator pogrążalny Husqvarna AX56
zł4,145.15 netzł5,098.53 gross
Wibrator pogrążalny Husqvarna Vibrastar (5 m)
zł2,561.87 netzł3,151.10 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

Husqvarna CF25 frequency converter – power supply for 42 V / 200 Hz high-frequency pokers

The Husqvarna CF25 frequency converter turns mains 50 Hz into the 42 V / 200 Hz required by high-frequency internal vibrators (pokers) with a motor in the head. Two sockets let you run two pokers at once, while the 31 kg weight and carry handle make it easy to move between concreting stations. Available in two supply versions: CF25M for a single-phase 230 V mains and CF25T for a three-phase 400 V connection.

Two versions: 230 V (CF25M) and 400 V (CF25T)

CF25M draws 9.5 A from a single-phase 230 V mains – ideal where only a 230 V socket or a smaller generator is available. CF25T runs off a three-phase 400 V supply at 4.6 A, relieving a single phase on larger sites. Both versions deliver the same 42 V / 200 Hz output and up to 25 A, so they drive the same pokers – the choice depends solely on the available power.

Parameters and output

1.8 kVA of power and two 42 V / 200 Hz sockets let you compact with two pokers at once, cutting the time needed to concrete slabs and foundations. The 200 Hz frequency means high head speed and fine, dense vibration that effectively removes air bubbles from the mix. Electronic protections guard connected tools against overload.

Compatible Husqvarna AX pokers

CF25 powers the Husqvarna AX poker range and the Vibrastar model – from ax36 and ax40, through ax48 and ax56, up to the most powerful ax65 and ax90. See the full range in the 42 V / 200 Hz pokers category.

The 42 V / 200 Hz system vs alternatives

In a high-frequency poker the motor sits in the head and needs an external converter such as CF25 – unlike a flexible-shaft poker driven by a trolley motor or a 230 V poker with a built-in inverter in the handle. The 42 V system combines safe low voltage in the wet zone with high compaction output at low poker weight.

Husqvarna CF25 converter – order at NORWIT.PL

Choose the CF25M (230 V) or CF25T (400 V) version matched to the power on your site and order the original Husqvarna converter with warranty and service. Complete your concrete compaction set with AX-series pokers. Questions about selection – contact us via the form.

Technical data

Cat. no.: 967913402
Weight: 31 kg
Current: 4,6 a / 25 A
Frequency: 50 hz / 200 Hz
Typ: Elektryczny
Voltage: 400 V (trójfazowe) / 42 V (trójfazowe)
Power: - / 1,8 kVA
Turnover: 3000/min
Number of connections / sockets: 2

Gwarancja

Standardowa 12-miesięczna Gwarancja Husqvarna

Firma Husqvarna zapewnia 12-miesięczną gwarancję na wszystkie swoje produkty. To standardowy okres ochrony, który daje pewność jakości i niezawodności każdej maszyny zakupionej od tego producenta.

Wybierając produkty Husqvarna, inwestujesz w sprzęt objęty roczną gwarancją, która obejmuje wszystkie elementy i podzespoły, gwarantując ich sprawne działanie przez cały rok.

Questions and answers

What is the Husqvarna CF25 frequency converter used for?

The CF25 converter turns mains 50 Hz into 42 V / 200 Hz and powers high-frequency internal pokers with a motor in the head (Husqvarna AX series, Vibrastar). Two sockets let you compact concrete with two pokers at once. Output power is 1.8 kVA and the 31 kg weight makes it easy to move around the site.

What is the difference between CF25M and CF25T?

CF25M runs off a single-phase 230 V mains at 9.5 A, while CF25T runs off a three-phase 400 V supply at 4.6 A. At the output both versions deliver identical 42 V / 200 Hz and 25 A, so they drive the same pokers. The choice depends on the power available on site.

How many pokers can CF25 run at once?

CF25 has two 42 V / 200 Hz sockets, so it runs two pokers at once at 1.8 kVA – two operators can work from one converter. For larger crews there is the four-socket Husqvarna CF67T converter.

Which pokers fit the CF25?

The CF25 fits Husqvarna high-frequency 42 V / 200 Hz pokers: ax36, ax40, ax48, ax56, ax65, ax90 and Vibrastar. It does not power flexible-shaft pokers or 230 V pokers with a built-in inverter, which use a different drive system.
