Husqvarna Construction · Cat. no. 967938201

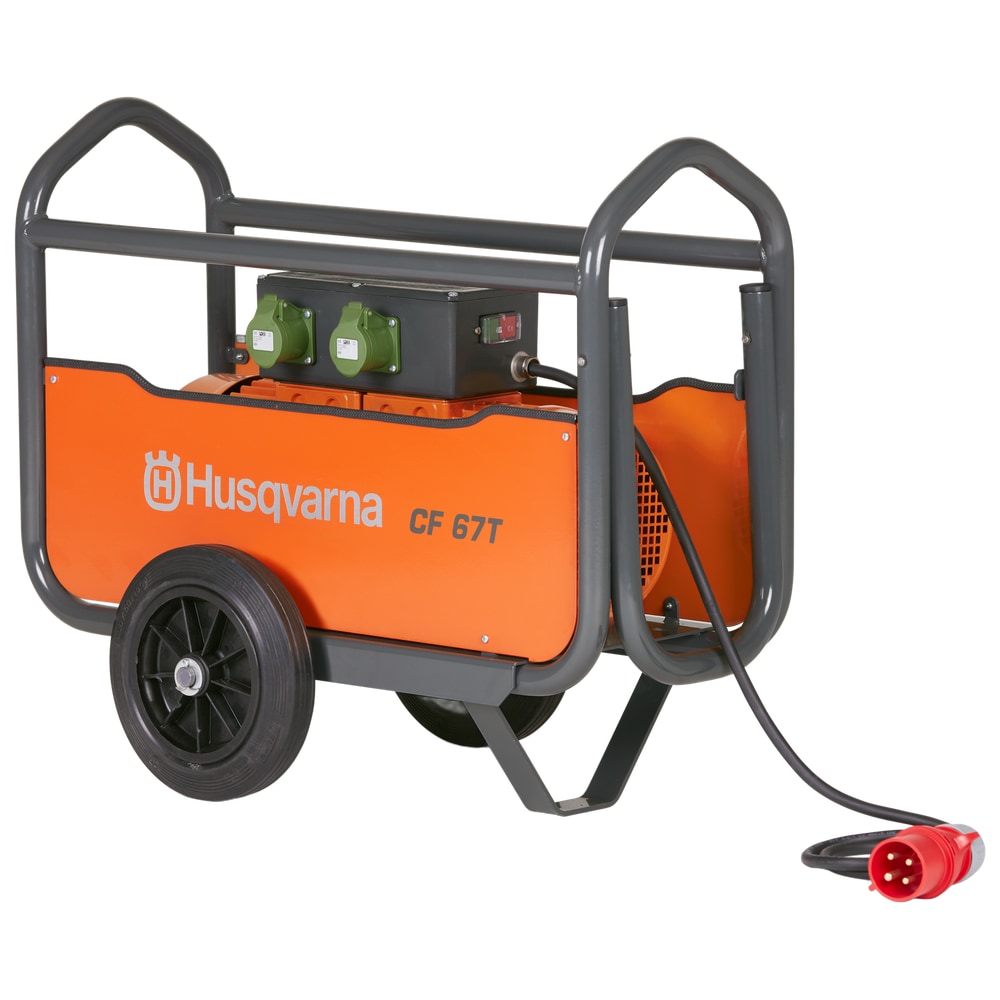

Przetwornica częstotliwości Husqvarna CF67T

70 kg
10,5 a / 67 A
50 hz / 200 Hz
Elektryczny

zł10,576.96 net

zł13,009.66 gross

Leasing for businesses

from zł277.57 net / month

Indicative calculation · you set the terms

Wersja: Standardowa

Ordering several variants? Table of 2 variants

On order

sourced from the supplier

Ships in about 1 day

from the order date

Arrives a day after dispatch

we will confirm the date with your order

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Ordering several variants?

2 variants · prices per unit · stock as of today

Wersja	Cat. no.	Net price	Gross	Availability	Quantity
Standardowa	967938201	zł10,576.96	zł13,009.66	approx. 1 day	0
CI4P	967938202	zł13,094.47	zł16,106.20	approx. 1 day	0

Accessories

Wibrator pogrążalny Husqvarna AX36 (5 m)
zł4,100.47 netzł5,043.58 gross
Wibrator pogrążalny Husqvarna AX40 (5 m)
zł3,931.52 netzł4,835.77 gross
Wibrator pogrążalny Husqvarna AX65 (5 m)
zł4,688.87 netzł5,767.31 gross
Wibrator pogrążalny Husqvarna AX90 (3 m)
zł10,685.90 netzł13,143.66 gross
Wibrator pogrążalny Husqvarna AX48
zł4,145.15 netzł5,098.53 gross
Wibrator pogrążalny Husqvarna AX56
zł4,145.15 netzł5,098.53 gross
Wibrator pogrążalny Husqvarna Vibrastar (5 m)
zł2,561.87 netzł3,151.10 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

Husqvarna CF67T frequency converter – four 42 V / 200 Hz sockets for large pours

The Husqvarna CF67T frequency converter is the most powerful unit in the range, feeding high-frequency 42 V / 200 Hz internal pokers. Four sockets let you connect up to four pokers at once, so a single converter serves a whole crew compacting large screeds, foundation slabs and floors. Powered from a three-phase 400 V mains, available in a standard version and CI4P.

Power for the whole crew

4.7 kVA of power and four 42 V / 200 Hz sockets deliver up to 67 A at the output – enough to run several AX pokers at the same time without a drop in head speed. Draw from the 400 V mains is 10.5 A. The 70 kg weight and sturdy frame make it easy to transport and place at a central point on site.

Two equipment versions

CF67T comes in a standard configuration and CI4P. Both versions share identical electrical parameters – 42 V / 200 Hz, 4 sockets, 4.7 kVA, 70 kg weight – and drive the same pokers. You pick the version directly on the product page, depending on the connector configuration you need.

Compatible Husqvarna AX pokers

CF67T powers the Husqvarna AX poker range and Vibrastar – ax36, ax40, ax48, ax56, ax65 and ax90. Four sockets let you combine pokers of different diameters in one set – see the full range in the 42 V / 200 Hz pokers category.

The 42 V / 200 Hz system vs alternatives

A high-frequency poker has its motor in the head and needs an external converter such as CF67T – unlike a flexible-shaft poker driven by a trolley motor or a 230 V poker with a built-in inverter. The 42 V system combines safe low voltage in the wet zone with high compaction output over large areas.

Husqvarna CF67T converter – order at NORWIT.PL

Choose the Husqvarna CF67T converter for large pours with a crew of operators and complete the set with AX-series pokers. Questions about the version or the number of pokers – contact us via the form.

Technical data

Cat. no.: 967938201
Weight: 70 kg
Current: 10,5 a / 67 A
Frequency: 50 hz / 200 Hz
Typ: Elektryczny
Voltage: 400 V (trójfazowe) / 42 V (trójfazowe)
Power: – / 4,7 kVA
Number of connections / sockets: 4

Gwarancja

Standardowa 12-miesięczna Gwarancja Husqvarna

Firma Husqvarna zapewnia 12-miesięczną gwarancję na wszystkie swoje produkty. To standardowy okres ochrony, który daje pewność jakości i niezawodności każdej maszyny zakupionej od tego producenta.

Wybierając produkty Husqvarna, inwestujesz w sprzęt objęty roczną gwarancją, która obejmuje wszystkie elementy i podzespoły, gwarantując ich sprawne działanie przez cały rok.

Questions and answers

What is the Husqvarna CF67T converter used for?

CF67T converts mains 400 V / 50 Hz into 42 V / 200 Hz for high-frequency internal pokers. Four sockets and 4.7 kVA of power (up to 67 A output) let you feed up to four pokers at once during large pours. The unit weighs 70 kg.

How many pokers can CF67T run at once?

CF67T has four 42 V / 200 Hz sockets and 4.7 kVA of power, so it runs up to four pokers at the same time. This lets you compact at several points on site without a drop in head speed. For smaller crews the two-socket Husqvarna CF25 converter is enough.

What is the difference between the standard CF67T and CI4P?

Both versions share identical electrical parameters: 42 V / 200 Hz, 4 sockets, 4.7 kVA and a 70 kg weight, and they drive the same AX pokers. They differ in equipment and connector configuration – you choose the version on the product page.

Which pokers fit the CF67T?

The CF67T fits Husqvarna 42 V / 200 Hz pokers: ax36, ax40, ax48, ax56, ax65, ax90 and Vibrastar. With four sockets you can combine pokers of different diameters in one set.
