Husqvarna Construction · Cat. no. 597808001

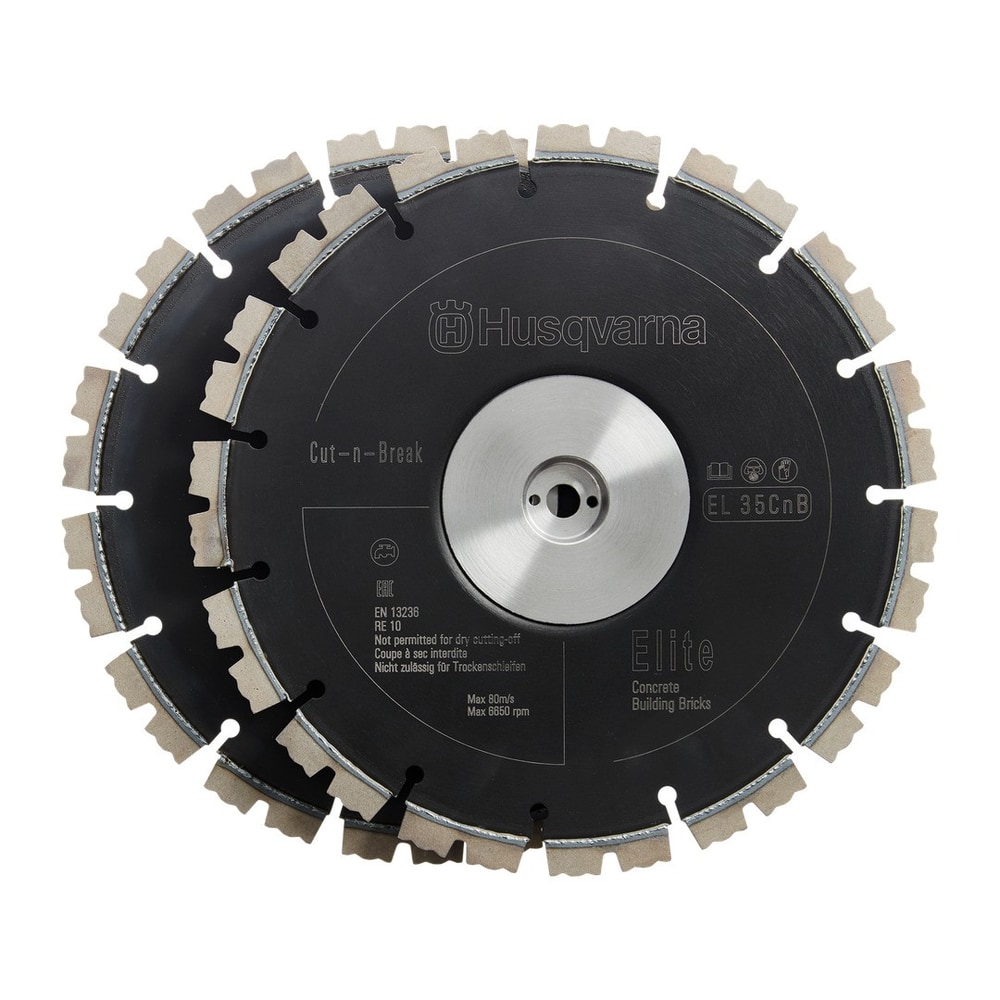

Husqvarna EL 35 CnB Cut-n-Break blade set (2 pcs, 230 mm)
- Beton
- 230 mm
- Mokro
- 400 mm
zł803.00 net
zł987.69 gross
Leasing for businesses
from zł83.05 net / month
Indicative calculation · you set the terms
ING leasing is not available for this amount — call us and we will arrange financing +48 732 081 091
In stock
1 pcs in stock
Same-day dispatch
order by 13:00
Arrives next day
on working days
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Free delivery over PLN 3,000
Accessories
Description
Husqvarna EL 35 CnB 230 mm blades – set of 2 for Cut-n-Break cutting
Husqvarna EL 35 CnB is a pair of 230 mm Elite series diamond blades for power cutters that use the Cut-n-Break method (two blades cut side by side, the strip of material left between them is broken out with a tool, and the next cut goes deeper). This lets a cutter with a 230 mm blade open walls up to 400 mm thick. The EL 35 version is designed for hard materials: heavily reinforced concrete, granite and concrete above approx. 40 MPa. The set contains 2 blades with a segment height of 11 mm.
Which power cutters they fit
The manufacturer assigns EL 35 CnB to two machines: the petrol Husqvarna K 760 Cut-n-Break (3.7 kW) and the electric Husqvarna K 4000 Cut-n-Break (2.7 kW). Both take blades up to 230 mm and both reach a maximum cutting depth of 400 mm. A standard 230 mm angle grinder blade cannot replace a CnB set, because Cut-n-Break cutters run on a pair of blades with a dedicated mounting.
Hard materials and reinforced concrete
EL 35 CnB is a general purpose blade weighted towards hard materials. The manufacturer lists granite, river rock, quartz, flint, marble, precast panels, heavily reinforced concrete and concrete above 6,000 psi, i.e. approx. 41 MPa. The marking on the blade states Concrete / Building Bricks, so building brick is also within its range.
Wet cutting only
The blades are marked as not permitted for dry cutting. Water cools the diamond segments, binds silica dust and flushes slurry out of the kerf, which matters all the more at depths of up to 400 mm. The maximum peripheral speed is 80 m/s, which at 230 mm corresponds to 6,650 rpm. The blades meet the EN 13236 safety standard for diamond tools.
Smooth start with a new blade
The shape of the segments reduces their contact area with the concrete, so a new blade starts cutting quickly and in a controlled way, without a run-in period. The segment edge design self-sharpens during the first cuts. Husqvarna builds CnB blades to withstand cutting at the full 400 mm depth, which is out of reach for a standard 230 mm blade.
EL 35 CnB or EL 10 CnB?
Both sets share the same 230 mm diameter and 11 mm segment, so they fit the same power cutters. The Husqvarna EL 10 CnB set is the general construction version for concrete, brick and roof tile. EL 35 CnB is the choice when most cuts go through high-strength concrete, dense rebar or natural stone, where a blade for softer materials quickly loses cutting speed.
Why the blades come in pairs
In the Cut-n-Break method both blades work at the same time and wear at the same rate, so they are replaced together. A pair with uneven wear cuts unevenly, loads the gearbox and makes breaking out the strip harder. A set of 2 blades with identical specification gives even kerfs from the first cut to the last.
Order Husqvarna EL 35 CnB blades at NORWIT.PL
NORWIT.PL is an authorised distributor of Husqvarna. Other blades for cutting concrete, including larger diameters for hand-held and walk-behind saws, are in the concrete diamond blades category.
Technical data
- Cat. no.
- 597808001
- Cooling
- Mokro
- Cutting depth
- 400 mm
- Segment height
- 11 mm
- Application
- Beton silnie zbrojony, beton wysokiej wytrzymałości, granit, kamień naturalny, cegła
- Disc diameter
- 230 mm
- Kompatybilność
- K 760 Cut-n-Break | K 4000 Cut-n-Break
Gwarancja
.png)
Standardowa 12-miesięczna Gwarancja Husqvarna
Firma Husqvarna zapewnia 12-miesięczną gwarancję na wszystkie swoje produkty. To standardowy okres ochrony, który daje pewność jakości i niezawodności każdej maszyny zakupionej od tego producenta.
Wybierając produkty Husqvarna, inwestujesz w sprzęt objęty roczną gwarancją, która obejmuje wszystkie elementy i podzespoły, gwarantując ich sprawne działanie przez cały rok.
Questions and answers
Which power cutters do EL 35 CnB blades fit?
EL 35 CnB blades fit two Husqvarna power cutters that use the Cut-n-Break method: the petrol K 760 Cut-n-Break rated at 3.7 kW and the electric K 4000 Cut-n-Break rated at 2.7 kW. Both machines take blades up to 230 mm and cut up to 400 mm deep. A CnB set does not go on a standard power cutter or an angle grinder, because it requires a twin-blade arrangement with a dedicated mounting.
How does Cut-n-Break cutting work?
Cut-n-Break is cutting in stages with two parallel blades. The blades cut two kerfs, and the narrow strip of material left between them is broken out with a dedicated tool. Once the strip is removed, the cutter goes deeper and the cycle repeats. This way a 230 mm blade cuts through a wall up to 400 mm thick, which in conventional cutting would need a blade more than twice as large and a much heavier machine.
What is the difference between EL 35 CnB and EL 10 CnB blades?
Both Husqvarna sets have a 230 mm diameter, an 11 mm segment height and fit the same K 760 and K 4000 Cut-n-Break cutters. They differ in application. EL 10 CnB is the general construction version for concrete, brick and roof tile. EL 35 CnB is matched to hard materials: heavily reinforced concrete, concrete above approx. 41 MPa, granite, quartz and flint, where a blade for softer materials loses cutting speed.
Can EL 35 CnB blades be used for dry cutting?
EL 35 CnB blades are designed for wet cutting only, and the marking on the blade explicitly prohibits dry cutting. Water cools the diamond segments, binds silica dust and flushes slurry out of a kerf up to 400 mm deep. The K 760 and K 4000 Cut-n-Break cutters have a water connection, so they are supplied from the mains or from a portable pressurised water tank.
What is the maximum speed of EL 35 CnB blades?
The maximum peripheral speed of EL 35 CnB blades is 80 m/s, which at a 230 mm diameter equals 6,650 rpm. Both values are engraved on the blade. The Husqvarna K 760 Cut-n-Break and K 4000 Cut-n-Break cutters operate within this range. The blades meet the European EN 13236 safety standard for diamond tools.
Why are Cut-n-Break blades sold in pairs?
In the Cut-n-Break method both blades cut at the same time and wear at the same rate, so they are replaced together. Blades with uneven wear have different working diameters, which makes the kerfs uneven and the strip of material between them harder to break out. A set of 2 blades with identical specification keeps both kerfs at the same depth throughout their service life.
