KIT Nivel System NL540R Digital Laser Level + SJJ1 Tripod + LS-24 Staff
Reference: NL540R-DIGITAL-zestaw1

production has been completed
This product is no longer available for sale.
An alternative product with comparable parameters is available, carefully selected by our specialists.
KIT Nivel System NL640R DIGITAL Laser Level + SJJ1 Tripod + LS-24 Staff
Reference: NL640R-DIGITAL-zestaw1

new model
Accessories
Nivel System RD700 DIGITAL Laser Sensorzł959.35 netzł1,180.00 gross
Telescopic Staff (3.5 M) Nivel System LS-35
Telescopic Staff Nivel System LS-24
Nivel System SJJ1 Tripod
Nivel System SJJ32 Tripod
Nivel System Aku NL 4000 Battery for NL500, NL520, NL540 Rotary Laser Levels- Need a different part?We will match it to your machine+48 732 081 091
Description

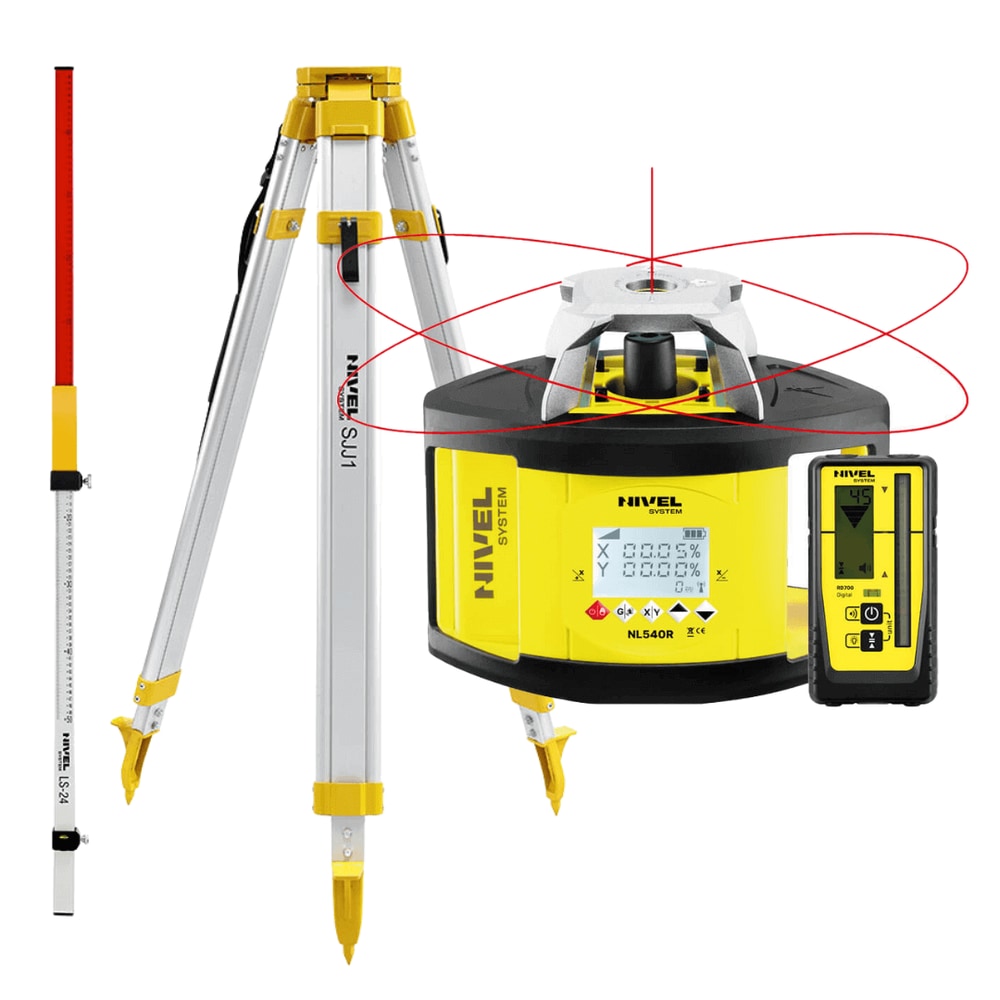

KIT Nivel System NL540R Digital laser leveler + SJJ1 tripod + LS-24 staff - precision and performance in one.
Discover a new quality of measurement with the Nivel System NL540R Digital - a versatile set that is ideal for construction, surveying and other demanding technical industries. With high leveling accuracy of ± 1.0 mm/10 m, reliability and ease of use, this laser leveler meets the expectations of the most demanding professionals. It also comes with an SJJ1 tripod and LS-24 staff, providing a full range of capabilities right out of the box.
Compact solution with modern features
The Nivel System NL540R Digital is distinguished by its robust design with dimensions of 206 x 206 x 211 mm and a weight of just 3 kg, which makes it easy to transport and work in difficult field conditions. Equipped with a type of laser beam: red (635 nm), class 2, it provides precise measurements within a radius of 500 m (diameter). Thanks to its IP54 rating, the device is resistant to dust and rain, guaranteeing reliability in any situation.
Advanced technology enables the device to generate 1 horizontal plane (360°) and 1 vertical plane (360°), enhancing work efficiency. The function of tilting the planes ± 10% on the X and Y axes, as well as the automatic self-leveling range of ± 5° make it easy to position the device accurately in the most difficult conditions. The laser works with the RD 700 receiver for maximum flexibility of operation.
The built-in 7.4V lithium-ion rechargeable battery ( 4000 mAh) guarantees long operating time, while the variable head spinning speed function (up to 600 rpm) and 0°-10°-45°-90°-180° scanning option allow precise customization of the device. The included remote control makes operation of the leveler even simpler and more convenient, minimizing the time and effort required to take measurements.
KIT Nivel System NL540R Digital laser leveler + SJJ1 tripod + LS-24 staff - available at NORWIT.PL!
Choosing a product in NORWIT.PL store, you get the assurance of high quality, professional advice and warranty service. Check also other products in the category Levelers measurements and find the perfect solution for your needs! Order a set now and increase the efficiency of your work!
Technical data
- Cat. no.
- NL540R-DIGITAL-zestaw1
- Weight
- 3 kg
- Dimensions
- 206 x 206 x 211 mm
- Brand
- Nivel System
- Power supply
- 7,4 V (Li-ion, 4000 mAh)
- Operating temperature range
- -20 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- +/- 5°
- Slope of the planes
- ± 10% (oś x, oś y), cyfrowe
- Generated planes
- 1 x poziomo (360°), 1 x pionowo (360°)
- Working range
- 500 m (średnica)
- Type of laser beam
- Laser czerwony (635 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Red
- Cooperation with the receiver
- Rd 700
- Scanning
- 0-10°-45°-90°-180°
- Head spin speed
- Zmienna, maks. 600 obr./min
- Remote control
- Tak
Gwarancja
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
