Koshin · Cat. no. 13111

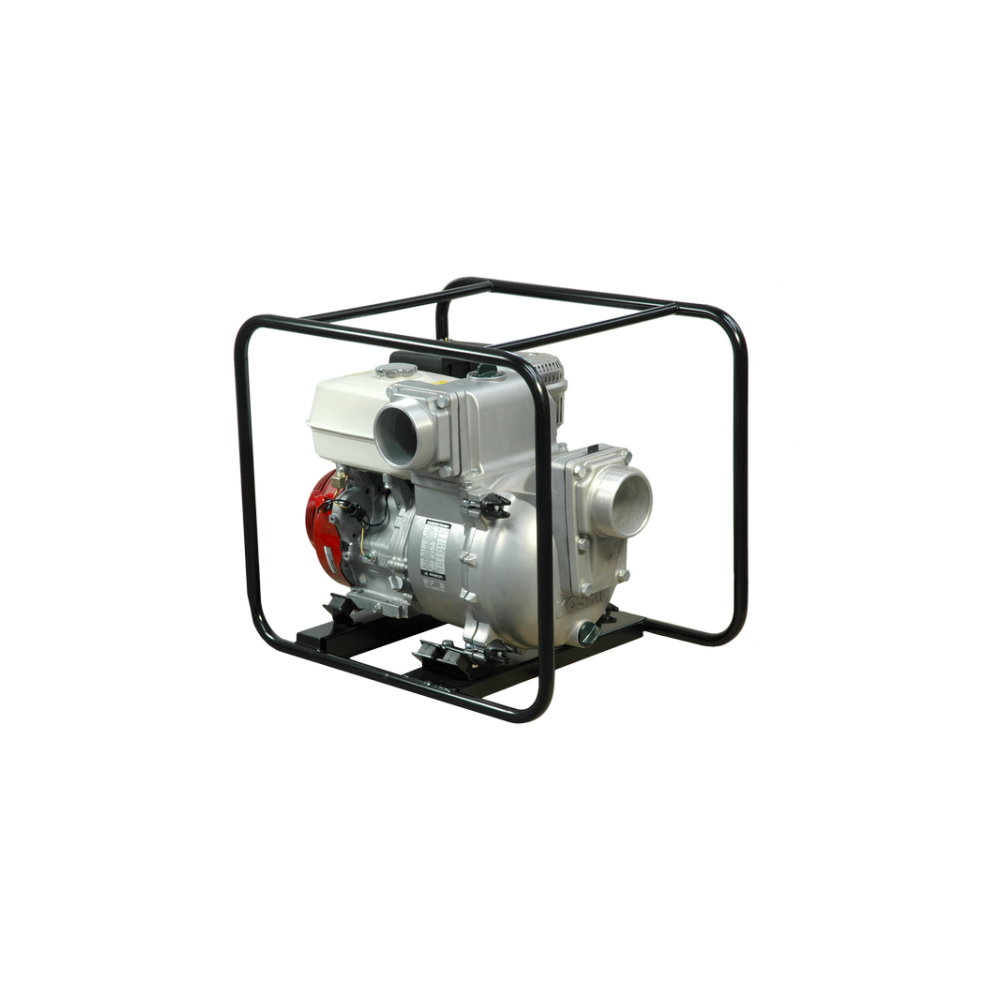

KTH 100X KOSHIN Sludge Pump
- 78 kg
- 745 x 535 x 625 mm
- Manual
- Honda GX 340
zł9,246.00 net
zł11,372.58 gross
Leasing for businesses
from zł298.58 net / month
Indicative calculation · you set the terms
On order
sourced from the supplier
Ships in about 1 day
from the order date
Arrives a day after dispatch
we will confirm the date with your order
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Free delivery over PLN 3,000
Accessories
Description
KTH 100X KOSHIN sludge pump - exceptional performance and reliability
The KTH 100X KOSHIN sludge motor pump is the perfect solution for removing contaminated water. It will be ideal for professionals working in construction, agriculture and the water supply industry. The device combines versatility, performance and reliability even in difficult working conditions. With its help, the discharge of water with contaminants up to 27 mm in diameter becomes fast and convenient.
Compact solution with modern features
The KOSHIN KTH 100X motor-pump is equipped with a 9.66 hp Honda gx340 engine, which ensures optimal performance with minimal fuel consumption. The 6.1-liter tank allows for continuous operation for 2 h, and the manual start guarantees simple operation in all conditions. The maximum suction depth is 8 m, allowing efficient operation even in hard-to-reach areas, while the maximum lifting height is an impressive 26 m.
With compact dimensions of 745 x 535 x 625 mm and a relatively light weight of 78 kg, the motor-pump is convenient to transport and store. With wide 4"/100 mm connections and a maximum flow rate of up to 1,600 l/min, the unit can handle large volumes of water, significantly speeding up work on the construction site or in the field. An additional advantage is the powerful displacement of 337 cm³, which supports the speed of operation without compromising on efficiency.
KTH 100X KOSHIN motor pump - available at NORWIT.PL!
Buying the KTH 100X KOSHIN sludge pump in the NORWIT.PL store is a guarantee of reliable service and warranty support. See also our full offer in the category Pumps and choose the ideal solution for your needs.
Technical data
- Cat. no.
- 13111
- Weight
- 78 kg
- Dimensions
- 745 x 535 x 625 mm
- Startup
- Manual
- Engine
- Honda GX 340
- Power
- 9,66 KM
- Fuel
- Petrol
- Maximum solids diameter
- 27 mm
- Diameter of connections
- 4"/100 mm
- Operating time on one tank
- 2 h
- Fuel tank
- 6,1 l
- Max. lifting height
- 26 m
- Displacement capacity
- 337 cm³
- Max capacity
- 1600 l/min
- Max. depth of suction
- 8 m
Questions and answers
What engine does the Koshin KTH-100X have?
The Koshin KTH-100X is powered by a genuine Japanese Honda GX340 engine (4-stroke, 337 cm³, ~11 HP) — one of the most durable engines in its class. Honda quotes an engine life of 3,000-5,000 hours with regular servicing.
What is the Koshin KTH-100X used for?
The Koshin KTH-100X is a top 4" sludge motor pump with a flow of 1650 l/min (99 m³/h), solids up to 27 mm and head up to 26 m. Designed for large biogas plants, industrial farms, municipal work and major flooding. Weight 78 kg.
How does the Koshin KTH-100X differ from the Toolsa HLS100?
Both are 4" sludge pumps with almost equal flow (1650 vs 1647 l/min). The Koshin KTH-100X is a premium brand; the Toolsa HLS100 is the cheaper alternative with a stronger Honda GX390 engine (KTH-100X: GX340) and higher head (29.1 vs 26 m).
How much does the Koshin KTH-100X weigh and how to transport it?
The Koshin KTH-100X weighs 78 kg — it needs two people to carry or a wheeled transport kit. In the field it is best moved on a trailer or in a van. A typical weight for the most powerful 4" sludge pump.
