Nivel System NL540G Self-Levelling Rotary Laser Level
Reference: NL540G

production has been completed
This product is no longer available for sale.
An alternative product with comparable parameters is available, carefully selected by our specialists.
Accessories
Nivel System RD700 DIGITAL Laser Sensorzł959.35 netzł1,180.00 gross
Telescopic Staff (3.5 M) Nivel System LS-35
Telescopic Staff Nivel System LS-24
Nivel System SJJ1 Tripod
Nivel System SJJ32 Tripod
Nivel System Aku NL 4000 Battery for NL500, NL520, NL540 Rotary Laser Levels- Need a different part?We will match it to your machine+48 732 081 091
Description

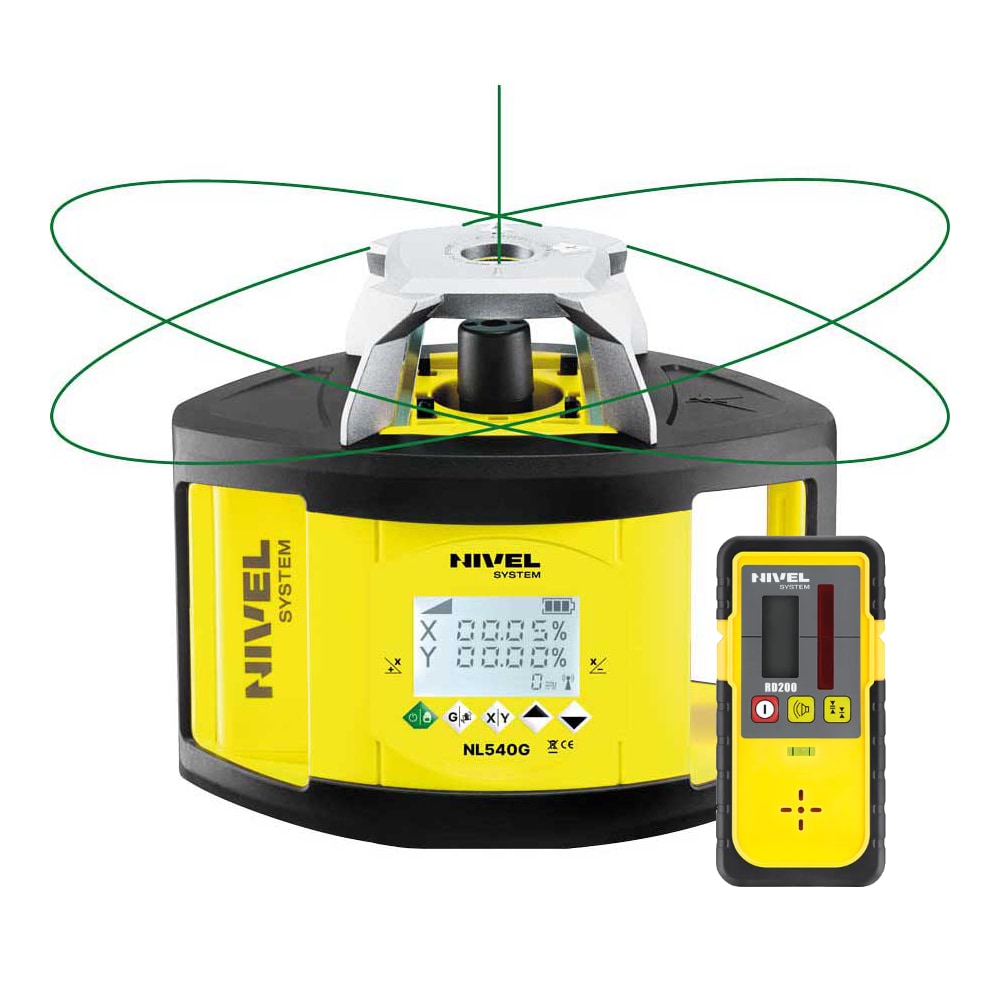

Nivel System NL540G self-leveling rotary laser leveler - precision and versatility of work for any construction site
Nivel System NL540G laser leveler is an advanced tool for professionals in the construction, surveying or installation industry. Thanks to its precise self-leveling and wide working range, it will meet the expectations of the most demanding users. It is ideal for outdoor work when high accuracy and time savings are important.
Versatility in a modern design
The NL540G is distinguished by its compact dimensions of 206 x 206 x 211 mm and lightweight design (just 3 kg), which translates into easy transportation and quick preparation for work. Robust construction and resistance to harsh conditions ( IP54 rating) ensure durability in use regardless of the weather. Powered by a Li-ion 4000 mAh (7.4V) rechargeable battery, the device guarantees a long operating time, and thanks to self-leveling, it offers accuracy of ± 1.0 mm/10 m - crucial for all engineering tasks.
The equipment offers a scanning range of 0-10°-45°-90°-180°, providing remarkable flexibility of operation, both horizontally (one 360° beam) and vertically (also full 360°). The maximum operating range of up to 500 meters in diameter, combined with the RD200 receiver, makes it a sensational choice for large working areas. The rotation speed of the head is variable, reaching up to 600 rpm, allowing fast and accurate measurements.
The laser generates a green beam that is more visible in illuminated conditions, making it easier to work even in bright sunlight. The plane tilt range of ± 10% in the X and Y axes gives the user the possibility to set the tilt accurately manually, which is especially useful during more complex projects.
Nivel System NL540G - available at NORWIT.PL!
Choose Nivel System NL540G at NORWIT.PL and get the assurance of after-sales support, warranty service and high quality equipment that will meet your expectations. Also check out other products from the levelers measuring category and find the perfect solution for your work!
Technical data
- Cat. no.
- NL540G
- Weight
- 3 kg
- Dimensions
- 206 x 206 x 211 mm
- Brand
- Nivel System
- Power supply
- 7,4 V (Li-ion, 4000 mAh)
- Operating temperature range
- -20 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Slope of the planes
- ± 10% (oś x, oś y), manualne
- Generated planes
- 1 x poziomo (360°), 1 x pionowo (360°)
- Working range
- 500 m (średnica)
- Resistance class
- Ip54
- Cooperation with the receiver
- Rd200
- Scanning
- 0-10°-45°-90°-180°
- Head spin speed
- Zmienna, maks. 600 obr./min
- Remote control
- N/A
- Laser beam color
- Green
