Nivel System NL540R DIGITAL Red Rotary Self-Leveling Laser Level
Reference: NL540R DIGITAL

production has been completed
This product is no longer available for sale.
An alternative product with comparable parameters is available, carefully selected by our specialists.
Accessories
Nivel System RD700 DIGITAL Laser Sensorzł959.35 netzł1,180.00 gross
Telescopic Staff (3.5 M) Nivel System LS-35
Telescopic Staff Nivel System LS-24
Nivel System SJJ1 Tripod
Nivel System SJJ32 Tripod
Nivel System Aku NL 4000 Battery for NL500, NL520, NL540 Rotary Laser Levels- Need a different part?We will match it to your machine+48 732 081 091
Description

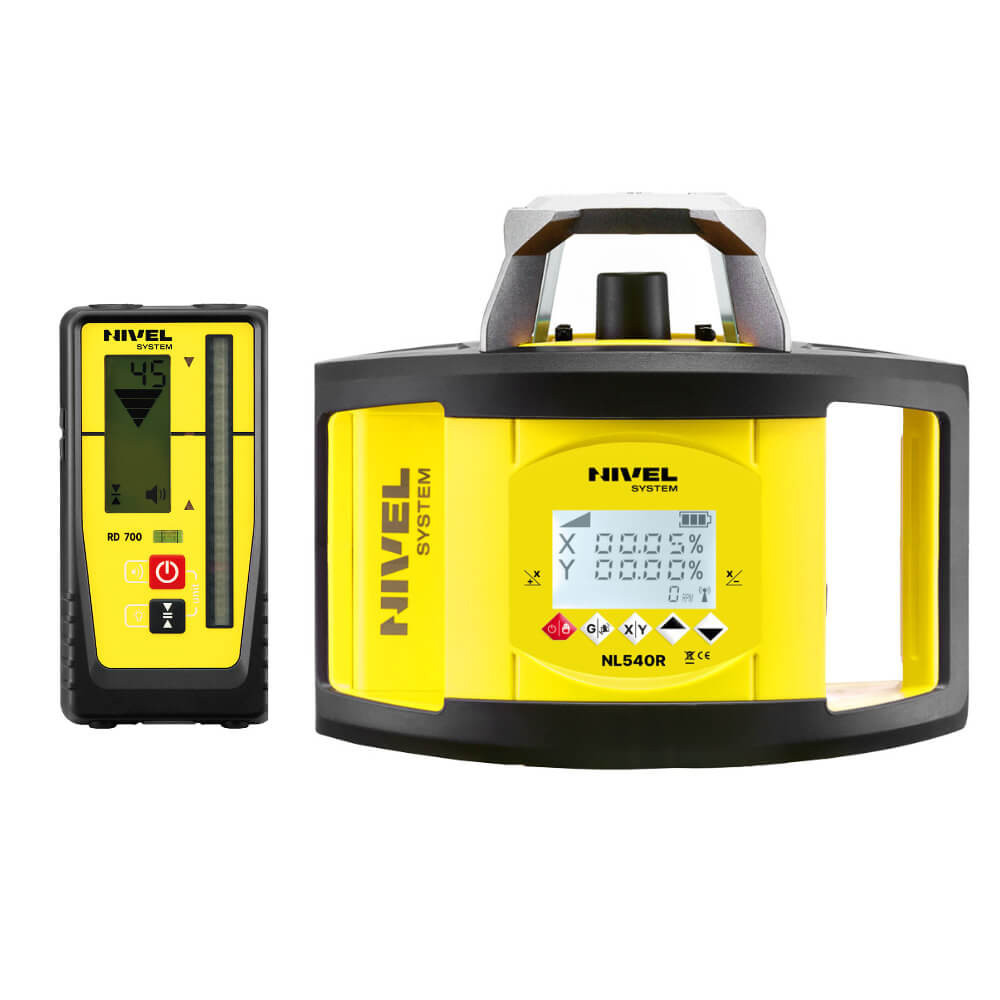

Nivel System NL540R DIGITAL red rotary self-leveling laser leveler - precision and digital control
Nivel System NL540R DIGITAL laser leveler is a device that provides precise measurements in all conditions. It is perfect for professionals in the construction, surveying or installation industry. With advanced technology and a rotating self-leveling laser, the device offers accuracy and performance that increases productivity and reduces the risk of errors. The ideal choice for any task requiring the highest precision in both horizontal and vertical measurements.
Compact solution with modern features
The Nivel System NL540R DIGITAL is distinguished by its compact dimensions of 206 x 206 x 211 mm and lightweight design (just 3 kg), making it easy to transport and install on various workstations. Self-leveling within ± 5° provides a leveling accuracy of ± 1.0 mm/10 m, so you can rely on maximum measurement precision.
The device offers productivity with a red laser(635 nm) that generates a single horizontal (360°) and vertical (360°) plane, allowing you to perform versatile tasks on large-scale objects. Operating range reaches up to 500m (diameter) with the ability to work with the RD 700 receiver - an ideal choice for large construction sites. Additional flexibility is provided by digital plane tilt functions (±10%) and variable head spinning speeds up to 600 rpm.
Regardless of weather conditions, we can count on reliable operation of the equipment thanks to its high IP54 rating, which means it is resistant to dust and splashing. On the plus side, it also has a wide operating temperature range of -20°C to +50°C, making it an excellent choice for construction sites at any time of the year. A 4,000 mAh (Li-ion) battery ensures long operation without frequent charging.
Nivel System NL540R DIGITAL - available at NORWIT.PL!
Choosing Nivel System NL540R DIGITAL at NORWIT.PL, you get reliability and comfort of purchase. We offer warranty service, and on our site you will also find other products from the category Levelers measurements. Check now and choose professional solutions for yourself!
Technical data
- Cat. no.
- NL540R DIGITAL
- Weight
- 3 kg
- Dimensions
- 206 x 206 x 211 mm
- Brand
- Nivel System
- Power supply
- 7,4 V (Li-ion, 4000 mAh)
- Operating temperature range
- -20 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- +/- 5°
- Slope of the planes
- ± 10% (oś x, oś y), cyfrowe
- Generated planes
- 1 x poziomo (360°), 1 x pionowo (360°)
- Working range
- 500 m (średnica)
- Type of laser beam
- Laser czerwony (635 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Red
- Cooperation with the receiver
- Rd 700
- Scanning
- 0-10°-45°-90°-180°
- Head spin speed
- Zmienna, maks. 600 obr./min
- Remote control
- Tak
Gwarancja
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
