Nozar · Cat. no. 6190018

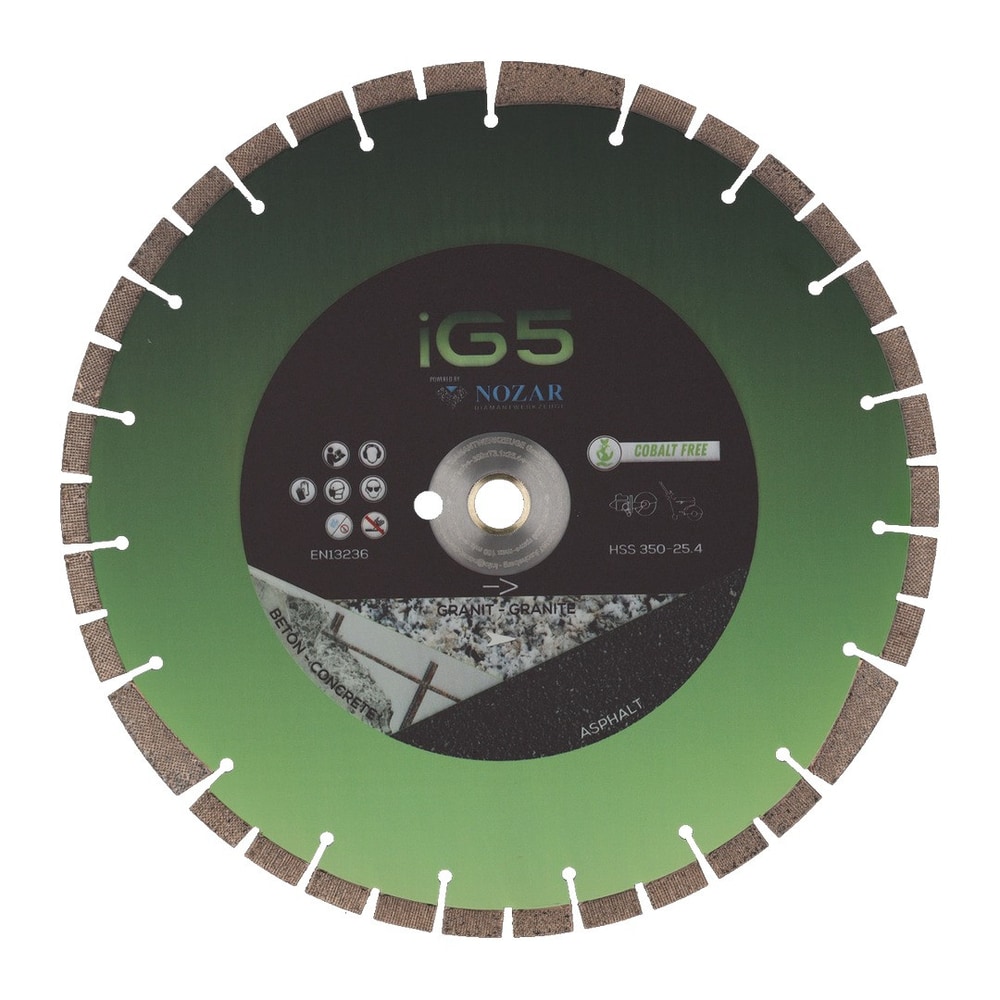

Nozar Dia-TS iG5-HSS Diamond Blade for Granite, Concrete and Asphalt (350 x 25.4 mm)

Beton
350 mm
25,4 mm
12,5 mm

zł1,586.00 net

zł1,950.78 gross

Leasing for businesses

from zł52.97 net / month

Indicative calculation · you set the terms

On order

sourced from the supplier

Ships in about 7 days

from the order date

Arrives a day after dispatch

we will confirm the date with your order

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Accessories

Przecinarka stolikowa Husqvarna TS 300 E
zł3,435.77 netzł4,226.00 gross
Norton Clipper CM 352 230V Table Saw
zł4,355.28 netzł5,356.99 gross
Przecinarka ręczna Husqvarna K 770 (350 mm)
zł3,476.33 netzł4,275.89 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

One diamond blade for granite, concrete, pavers and asphalt

The Nozar Dia-TS from the iG5-HSS series is a premium universal diamond blade, 350 mm in diameter with a 25.4 mm bore, made with iG5 technology — a segment matrix with a very high diamond concentration, largely free of fillers and cobalt-free. It cuts concrete, reinforced concrete, granite, paving blocks, natural stone, ceramics and asphalt — dry or wet (EN 13236).

30+3 segments with body protection

The blade carries 30 cutting segments sized 24 × 3.2 × 12.5 mm plus 3 protective segments that shield the steel core from excessive wear and prevent jamming in the material during deep cuts. The high diamond concentration means the segments barely dull when you switch materials.

iG5 technology — Cobalt Free

The iG5 matrix is a new generation of bonds: fewer fillers, no cobalt, higher cutting speed and longer life than traditional blades. Its all-in-one versatility makes the iG5 series the most popular choice of machine rental companies — one blade covers the whole range of materials.

For hand-held cut-off saws and table saws

The 25.4 mm (1 inch) bore is the standard of petrol and electric cut-off saws as well as masonry table saws. The blade fits the Husqvarna TS 300 E table saw and the Norton Clipper CM 352 table saw, among others, plus small joint cutters.

Working parameters

Diameter 350 mm, bore 25.4 mm, segments 24 × 3.2 × 12.5 mm in a 30+3 layout. The 12.5 mm segment height gives a long service reserve until the blade is fully used. Dry and wet cutting per EN 13236 (SAFE LASER marking on the core).

Order the iG5-HSS 350 mm blade at NORWIT.PL

The blade extends the concrete diamond blades range at NORWIT.PL. Explore other Nozar diamond tools — blades for asphalt, concrete and clinker available from stock.

Technical data

Cat. no.: 6190018
Disc bore diameter: 25,4 mm
Segment height: 12,5 mm
Segment thickness: 3,2 mm
Disc diameter: 350 mm
Segment length: 24 mm
Destination: Beton | Beton zbrojony | Granit | Kostka brukowa | Kamień naturalny | Asfalt
Number of segments: 30+3

Questions and answers

What materials is the Nozar iG5-HSS blade for?

The iG5-HSS 350 mm blade cuts concrete, reinforced concrete, granite, paving blocks, natural stone, ceramics and asphalt. The high diamond concentration of the iG5 matrix lets you switch materials without changing the blade and without losing cutting speed. It works dry and wet per EN 13236.

Which machines does the 350 x 25.4 mm blade fit?

The 25.4 mm (1 inch) bore is the standard of hand-held cut-off saws and masonry table saws. The blade fits petrol saws of the Husqvarna K 770 class, the Husqvarna TS 300 E table saw and the Norton Clipper CM 352 table saw, as well as small joint cutters.

What does the 30+3 segment layout mean?

The blade has 30 cutting segments sized 24 x 3.2 x 12.5 mm plus 3 protective segments. The protective segments shield the steel core from excessive wear during deep cuts and prevent the blade from jamming in the material.

How is iG5 technology different from regular diamond blades?

The iG5 segment matrix is largely free of fillers and contains no cobalt (Cobalt Free). The result is a higher cutting speed and a longer life than traditional bonds — which is why machine rental companies choose the iG5 series most often.

Can the iG5-HSS blade cut dry?

The blade is designed for both dry and wet cutting. When dry-cutting hard granite, allow short cooling breaks for the segments. The 12.5 mm segment height provides a long service reserve until the blade is fully worn.
