Geo Fennel · Cat. no. 15-108-34

Wall And Profile Laser Mount - Geo-Fennel WH 1

0,97 kg
Geo-Fennel
Gwint 5/8″
16 x 16,5 x 35 cm

zł269.00 net

zł330.87 gross

In stock

6 pcs in stock

Same-day dispatch

order by 13:00

Arrives next day

on working days

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Description

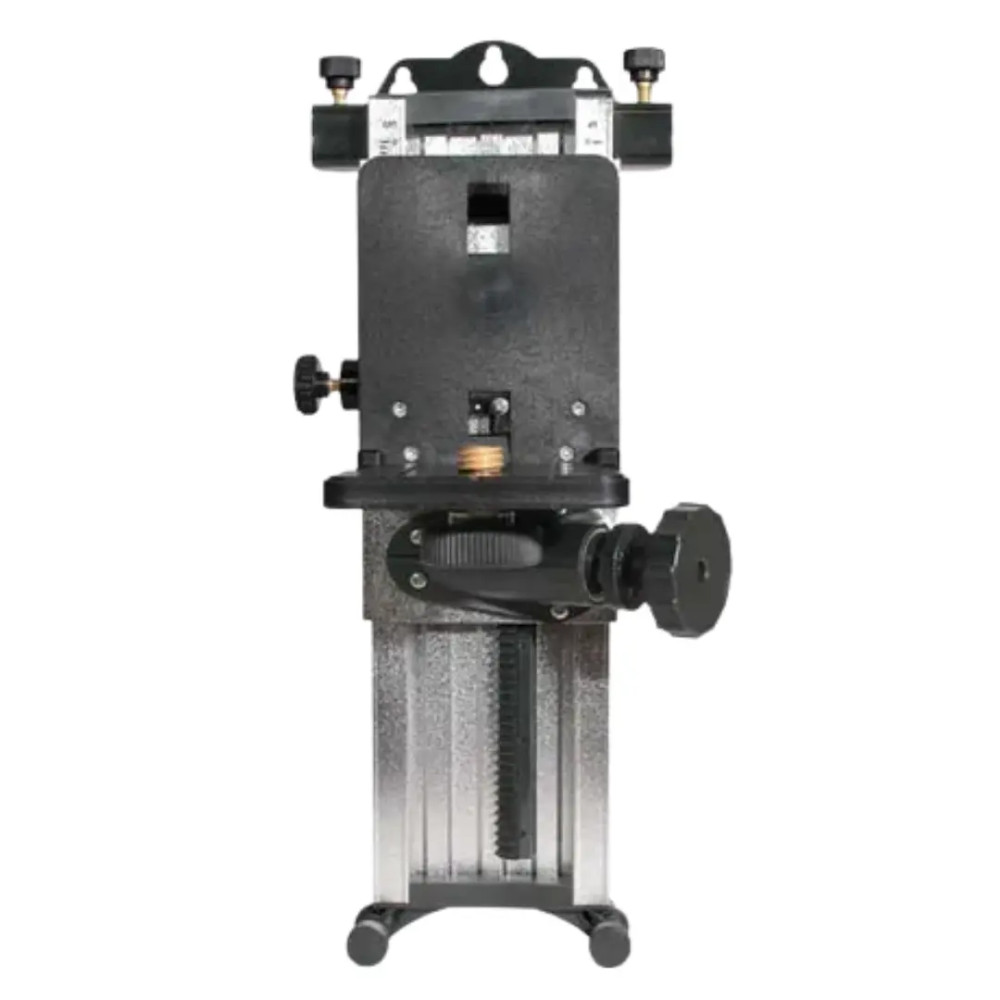

Geo-Fennel WH 1 wall laser mount — precise mounting on walls and profiles

The Geo-Fennel WH 1 is an aluminium wall and profile mount for construction lasers and levels. Made of lightweight aluminium (weight 0.97 kg) with a universal 5/8″ thread, it works with most rotary and line lasers and receivers. The laser sits on a movable base and height is set with a knob over a 100 mm range, with millimetre and inch scales for accurate positioning.

Universal 5/8″ thread

The standard 5/8″ thread fits most construction lasers and surveying instruments. The mount works with rotary and line laser levels, giving a stable hold at working height.

100 mm adjustment with scale

A knob adjusts instrument height over a 100 mm range, and the mm/inch scale lets you reproduce the level precisely. Two fastening screws also serve for preliminary levelling of the holder.

Wall and profile mounting

The WH 1 mounts both on walls and on suspended-ceiling profiles, useful for finishing work, ceiling installation and fit-out. The aluminium construction is resistant to damage.

Light and handy

At 0.97 kg and transport dimensions of 16 x 16.5 x 35 cm, the mount is easy to carry and store. It is a compact, everyday holder for site work.

WH 1 or WH 2?

The WH 1 is the lighter (0.97 kg) basic version. The sturdier Geo-Fennel WH 2 mount weighs 1.27 kg and ships with a carry bag — choose it when you need a more robust hold and the full kit.

For Geo-Fennel lasers

The mount works with surveying accessories and 5/8″ lasers. Pair it with compatible rotary laser levels to extend where you can set them up.

Order the Geo-Fennel WH 1 at NORWIT.PL

The WH 1 is part of the Geo-Fennel range — check availability and price, order online or contact us via the form to match the mount to your laser.

Technical data

Cat. no.: 15-108-34
Weight: 0,97 kg
Brand: Geo-Fennel
Mounting: Gwint 5/8″
Shipping dimensions: 16 x 16,5 x 35 cm
Grip adjustment: Pokrętło
Front/rear pitch: Mm/cale
Range of motion of the instrument: 100 mm
Designation of us: Wh 1

Questions and answers

What is the Geo-Fennel WH 1 mount for?

The Geo-Fennel WH 1 mount is used to attach construction lasers and levels to walls and to suspended-ceiling profiles. It lets you set the instrument at a chosen height without a tripod, speeding up finishing and installation work. It weighs 0.97 kg and offers a 100 mm height adjustment range.

What thread does the WH 1 have and what is it compatible with?

The WH 1 has a universal 5/8″ thread, standard for construction lasers and surveying instruments. It therefore works with most rotary and line laser levels and receivers. It is the same thread used on surveying tripods.

What is the adjustment range of the WH 1 mount?

Instrument height is adjusted with a knob over a 100 mm range. The mount has millimetre and inch scales that let you reproduce the level accurately. Two fastening screws also serve for preliminary levelling.

Where can the WH 1 be mounted?

The WH 1 mounts on walls and on suspended-ceiling profiles. The aluminium construction is damage-resistant and light (0.97 kg), and transport dimensions of 16 x 16.5 x 35 cm make it easy to move between stations.

How does the WH 1 differ from the WH 2?

The WH 1 is the lighter basic version weighing 0.97 kg. The Geo-Fennel WH 2 weighs 1.27 kg, is sturdier and ships with a carry bag. Both mounts have a 5/8″ thread and 100 mm adjustment, so the choice depends on needing a more robust hold and the full kit.

How much does the WH 1 weigh and how is it stored?

The WH 1 mount weighs 0.97 kg and its transport dimensions are 16 x 16.5 x 35 cm. It is compact and handy, fitting in a toolbox or accessory bag, so it is easy to take to site together with the laser.
