Barikell hook-and-loop attachment plate (Quick Lock) — photo 1 of 2

1 / 2

Barikell · Cat. no. BKG-HG1009601

Barikell hook-and-loop attachment plate (Quick Lock)

Name: Barikell hook-and-loop attachment plate (Quick Lock)
Brand: Barikell
SKU: BKG-HG1009601
Price: 553.50 PLN
Availability: InStock

zł450.00 net

zł553.50 gross

Leasing for businesses

from zł46.54 net / month

Indicative calculation · you set the terms

In stock

3 pcs in stock

Same-day dispatch

order by 13:00

Arrives next day

on working days

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Description

Barikell hook-and-loop attachment — Quick Lock plate with hook-and-loop face for Ø 75 mm polishing discs

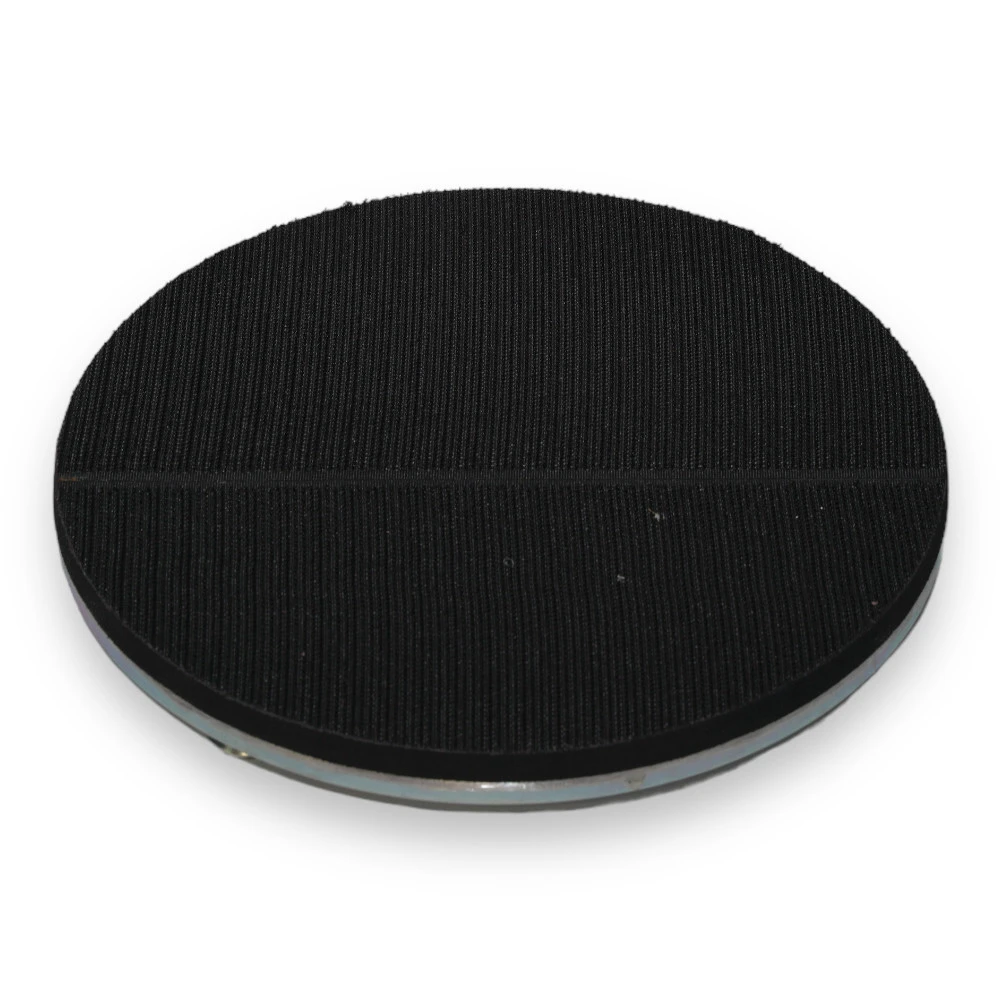

The hook-and-loop attachment is an adapter plate that goes into the Quick Lock socket of a Barikell BKG grinder head in place of the metal segments; its working face is covered with hook-and-loop (hooks) that holds Jumpy Ø 75 mm resin discs and other hook-and-loop pads. Weight 1.55 kg. It lets the same machine move from metal grinding to resin polishing without changing plates.

How it works

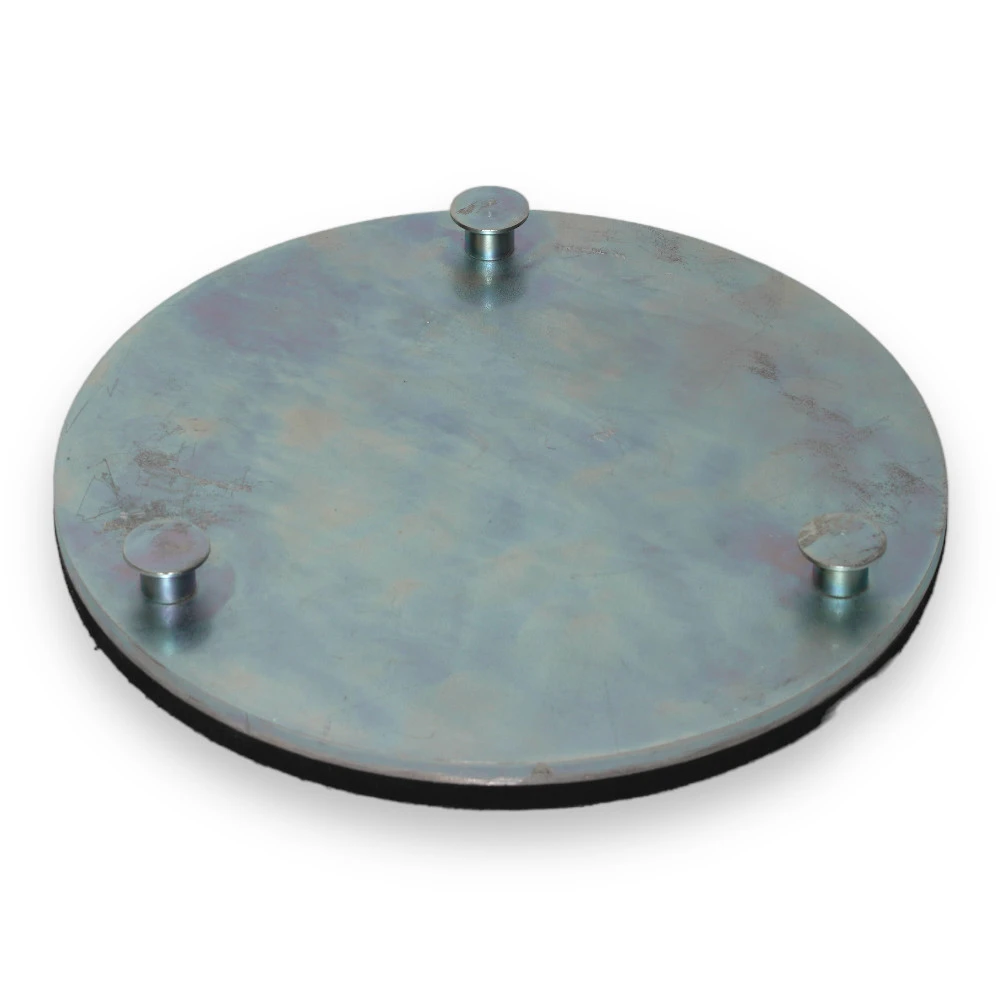

The plate slides its Quick Lock tabs into the head socket without tools; polishing discs are pressed onto its hook-and-loop face and held by the hooks and the machine's pressure. Changing grit means peeling the discs off and pressing new ones on — seconds per plate. A planetary head needs a set of plates, one per Quick Lock socket.

Which machines

The adapter fits Barikell BKG grinders with Quick Lock plates, including the BKG 450 E DTC planetary grinder and BKG550-VS, and other heads with the same socket. The whole HG Hyper Grinder polishing system is designed around Ø 75 mm discs — the same discs run on the grinder, on the Moskito 4-60 Polishing edge machine and on concrete polishing trowels.

Hook-and-loop as a wear part

The hooks wear from dust and heat and dried slurry weakens the grip — the symptom is a disc flying off the plate at high speed. The hook-and-loop face is replaced without buying a new plate: the replacement hook-and-loop disc is glued onto the cleaned adapter surface. After wet work rinse and dry the plate before slurry sets in the hooks.

What to fit

The adapter takes Jumpy Ø 75 mm polishing discs in five grits 60–800 and hook-and-loop pads for buffing Concrete Guard Lithium PRO. Metal segments such as HGM for medium concrete and the other HG series mount directly in the Quick Lock socket, without the adapter.

Barikell hook-and-loop attachment — available at NORWIT.PL

The plate comes from Barikell (HG Hyper Grinder system); article number in the Index field. See the replacement hook-and-loop disc, Jumpy Ø 75 mm polishing discs and the full diamond segments and pads category; machines — planetary concrete grinders.

Gwarancja

Roczna Gwarancja na Produkty Barikell

Firma Barikell oferuje roczną gwarancję na całość swojej oferty produktowej. Oznacza to, że każde urządzenie zakupione od Barikell jest objęte pełną ochroną przez 12 miesięcy od daty zakupu.

Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, zapewniając bezproblemowe użytkowanie przez cały okres ochrony.

Questions and answers

How do I match a diamond segment to concrete hardness?

Choose the segment inversely to concrete hardness: soft, abrasive concrete (3–5 Mohs) takes the HGS series with a harder bond, medium (5–7) HGM, hard (7–8) HGH with a softer bond, and extremely hard concrete HGX with the softest. Hard concrete does not wear the bond, so the bond must release the diamonds itself; soft concrete wears it fast, so the bond must be hard. If the hardness is unknown, start with HGM and check the wear after the first 50 m².

What do grits 20, 40, 70 and 140 mean?

Grit is the diamond grain size: the lower the number, the coarser the grain and the more aggressive the cut. Grit 20 strips laitance, adhesives and unevenness, 40 removes the scratches of 20, 70 smooths and 140 prepares the surface for densifier and resin discs. Run each grit until the previous scratches disappear, overlapping passes by about 30 percent. Skipping a grit leaves scratches that only show after polishing.

What is Quick Lock mounting?

Quick Lock is a tool-free mounting system for diamond tools on the plates of Barikell BKG and HG Hyper Grinder machines: the segment plate has curved tabs that slide into the plate socket and lock with the machine's rotation. Changing a full set on three heads takes minutes instead of unscrewing bolts. The same socket takes a hook-and-loop adapter plate that accepts Ø 75 mm polishing discs.

How many segments does a grinder need?

Each plate of a planetary head usually takes three segments spaced 120 degrees apart, so a three-head BKG grinder needs nine segments of one grit; for levelling a very uneven floor two segments per plate are fitted, which raises the unit pressure. Replace segments as a set on the whole machine, because mixing new and worn ones makes the plates run unevenly and the floor wavy. The shop price is per piece.

Grind dry or wet?

Metal segments work in both modes. Wet, water from the machine's system cools the segment, binds dust and extends tool life, but it produces slurry that must be collected as you go and the floor dried before chemicals. Dry work needs an industrial vacuum with a HEPA filter, is logistically cleaner and moves on to polishing sooner. On hard concrete a dry segment glazes faster — adding water or switching to a softer bond helps.

When is a segment worn out?

Replace a segment when the diamond layer is below about 2 mm high or when output clearly drops despite a correct bond choice. Wear should be even on all segments of a plate; if one wears faster, check the head pressure and plate flatness. A segment that has stopped cutting but is not worn has usually glazed — open it up with a few passes over an abrasive surface or switch to a softer bond.
