Construction Laser Nivel System CL4D-G - KIT Tripod SJJ-M1 EX Sensor CLS-300 + Staff LS-24
Reference: CL4D-G-zestaw6
production has been completed
Availability
Product withdrawn
This product is no longer available for sale.
An alternative product with comparable parameters is available, carefully selected by our specialists.
KIT Nivel System CL5G Green Crossed Laser + SJJ-M1 EX Tripod + CLS-300 Sensor + LS-24 Staff
Reference: CL5G-zestaw6
new model
Availability
Product available
zł4,612.50
zł3,750.00 tax excl
Accessories
-
- Withdrawn
Nivel System CLS-4 Laser Sensor
zł349.00 tax incl. 283,74 zł tax excl. -
Telescopic Staff Nivel System LS-24
zł212.00 tax incl. 172,36 zł tax excl. -
Laser Glasses Nivel System GL-G
zł84.87 tax incl. 69,00 zł tax excl. -
Nivel System SJJ-M1 EX Tripod
zł324.00 tax incl. 263,41 zł tax excl. -
Nivel System LP36 Strut Pole
zł356.70 tax incl. 290,00 zł tax excl. -
Spreader Pole With Tripod Nivel System LP-36 EX
zł478.00 tax incl. 388,62 zł tax excl. -
Nivel System TR-G Laser Target Plate
zł41.82 tax incl. 34,00 zł tax excl. -
- New
Nivel System CLS-300 DIGITAL Laser Sensor
zł848.70 tax incl. 690,00 zł tax excl.
Description

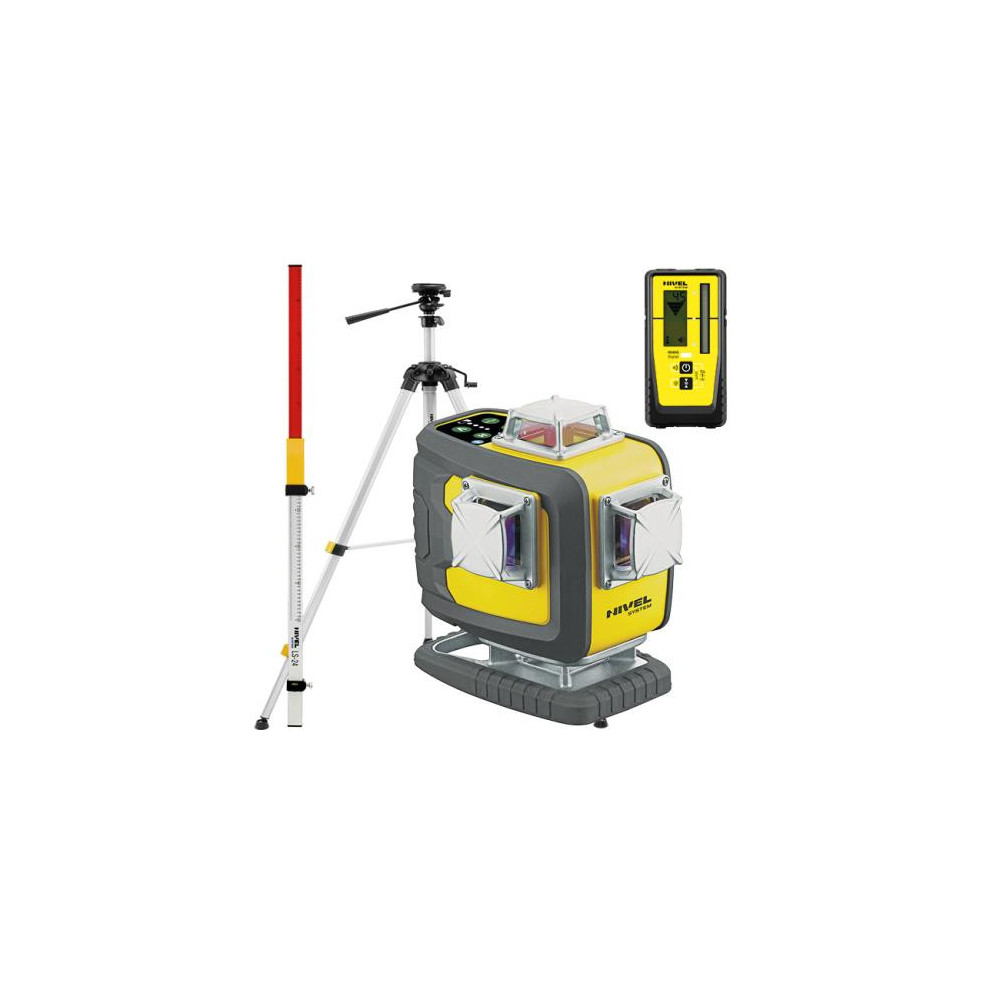

Kit: Nivel System CL4D-G construction laser (green) + SJJ-M1-EX tripod + CLS-300 detector + LS-24 staff
The Nivel System CL4D-G construction laser is an electronic, self-levelling 4×360° cross-line laser — two horizontal and two vertical planes give a line at the floor, under the ceiling and full vertical layout. An electronic compensator delivers fast, stable levelling to ±1 mm/10 m. The green 515 nm beam is up to four times more visible to the eye than a red one. This extended kit includes the CL4D-G laser, an aluminium SJJ-M1-EX tripod, the digital Nivel System CLS-300 detector (range up to 70 m) and an aluminium LS-24 levelling staff (2.4 m) for transferring height differences.
Electronic compensator and ±1 mm/10 m accuracy
The electronic levelling system sets the tool as soon as it is switched on, to an accuracy of ±1 mm/10 m within a ±4° self-levelling range. The compensator can be locked to lay out on a slope without flickering lines.
Four 360° planes — top, bottom and verticals
Two horizontal lines (at the floor and under the ceiling) and two vertical 360° lines let you transfer a level and set plumb at once. It is a tool for drywall framing, suspended ceilings, joinery fitting, tiling and larger areas.
30 m range, and up to 70 m with the CLS-300
The lines are visible to the naked eye up to 30 m. The included digital CLS-300 detector picks up the beam even when it is invisible in sunlight and extends the range to 70 m, so the laser also performs on open sites and large builds.
Li-ion batteries and Bluetooth control
Power comes from Li-ion 7.4 V (2600 mAh) batteries with a charger included. The IP54 rating protects against dust and moisture from -10°C to +50°C, the body weighs just 0.9 kg (125×75×140 mm), and Bluetooth lets you control functions from a smartphone.
Extended kit with the LS-24 staff
Besides the CL4D-G laser, the SJJ-M1-EX tripod and the CLS-300 DIGITAL detector you also get an aluminium LS-24 levelling staff (2.4 m). With the detector mounted on the staff you can read and transfer height differences over long distances.
What the levelling staff is for
The LS-24 staff with a millimetre scale and detector bracket lets you level floors, excavations, terraces and grades on site — you measure the height difference where the laser line itself is no longer visible. It is a complete measuring station for outdoor work.
Nivel System CL4D-G construction laser with LS-24 staff — order the kit at NORWIT.PL
Choose proven Nivel System equipment with warranty and service. Browse the other cross-line lasers in our range and match the kit to your tasks.
Product Details
Indeks:
CL4D-G-zestaw6
- Weight
- 0,9 kg
- Dimensions
- 125 x 75 x 140 mm
- Brand
- Nivel System
- Power supply
- 7,4 V (Li-ion, 2600 mAh)
- Operating temperature range
- -10 °C do +50 °C
- Leveling accuracy
- ± 1,0 mm / 10 m
- Self-leveling range
- ±4°
- Slope of the planes
- Tak
- Generated planes
- 2 x poziomo (360°), 2 x pionowo (360°)
- Tripod mount
- 1/4"
- Working range
- 60 m (140 m z czujnikiem) – średnica
- Type of laser beam
- Laser zielony (515 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Green
- Number of laser lines 360
- 4 linie
Gwarancja
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
Questions and answers
What beam does the CL4D-G have and how do the colours differ?
The CL4D-G projects a green beam (515 nm), up to four times brighter to the eye than red — best for bright interiors. For comparison: green 515 nm is the brightest to the eye, red 635 nm the most economical, and violet 450 nm gives the highest contrast on bright surfaces. For better line visibility add the GL-G laser glasses.
What is the CLS-300 detector for and how much does it extend the range?
The CLS-300 DIGITAL detector picks up the beam when it is invisible to the eye and extends the working range from 30 to 70 m, so the same laser works indoors and on open sites, even in full sun.
Can the CL4D-G be used outdoors?
Yes. The IP54 rating protects it against dust and splashes, and the included CLS-300 detector reads the line in sunlight up to 70 m, where it is no longer visible to the eye. The operating temperature is -10°C to +50°C.
How does self-levelling work and can it lay out on a slope?
An electronic compensator sets the level immediately after switch-on within ±4°, to an accuracy of ±1 mm/10 m. The compensator can be locked to project lines at any angle for sloped work.
What is included in the CL4D-G kit?
The kit includes the CL4D-G construction laser, an aluminium SJJ-M1-EX tripod (62–182 cm), the digital CLS-300 detector and an aluminium LS-24 levelling staff (2.4 m) for transferring height differences. Ready to work out of the box.
How do CL3, CL4 and CL4D differ?
CL3 projects three 360° planes (1 horizontal, 2 vertical), CL4 four (2 horizontal, 2 vertical) at ±2 mm/10 m with a magnetic compensator. CL4D is the electronic version: four planes, ±1 mm/10 m accuracy, faster levelling and slope work without flicker.
