Fogo · Cat. no. 49861

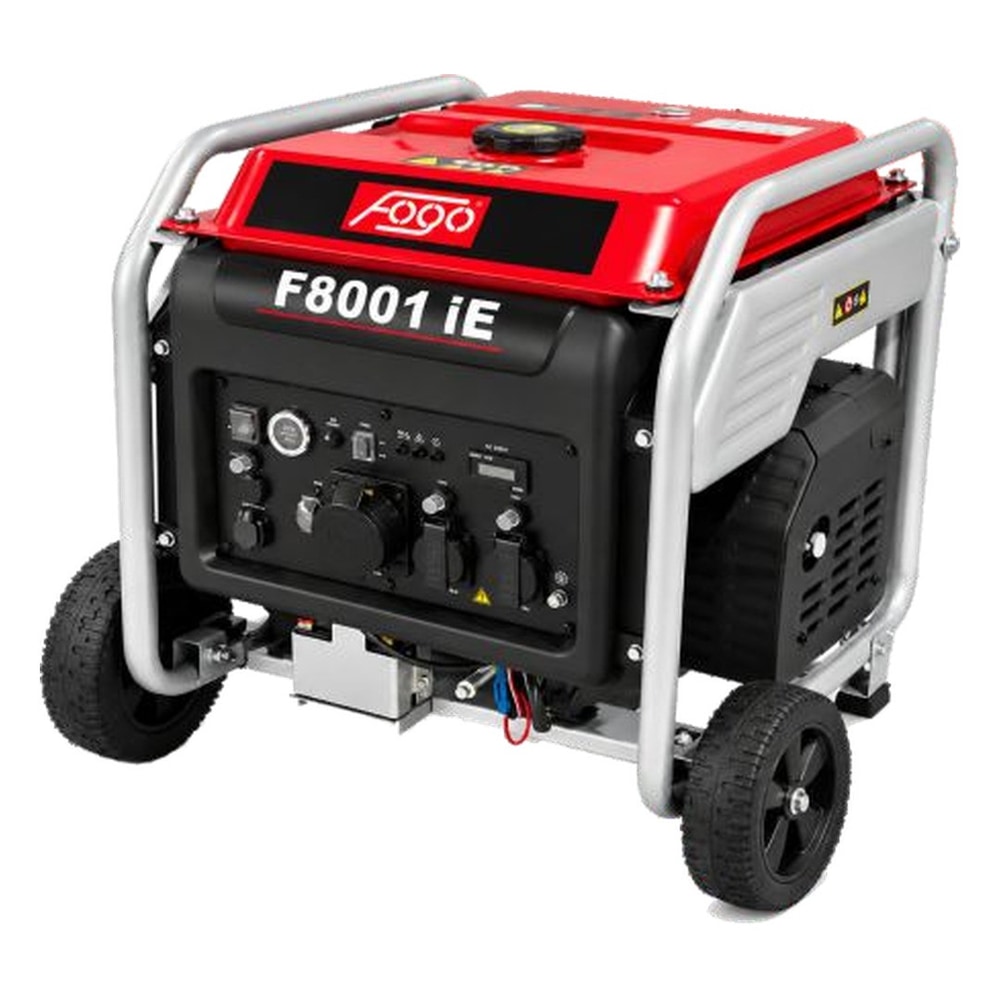

Fogo F 8001 iE Inverter Generator

65 kg
605 x 514 x 537 mm
Rato
50 Hz

zł3,999.00 net

zł4,918.77 gross

Leasing for businesses

from zł133.55 net / month

Indicative calculation · you set the terms

On order

sourced from the supplier

Ships in about 1 day

from the order date

Arrives a day after dispatch

we will confirm the date with your order

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Accessories

Fogo F 8001 iSG Inverter Generator
zł8,300.00 netzł10,209.00 gross
Fogo F 7001 TRE Single-Phase Petrol Generator
zł4,633.00 netzł5,698.59 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

Fogo F 8001 iE inverter generator – 7.0 kW from one 32 A socket, 65 kg and electric start

Fogo F 8001 iE is a single-phase inverter generator for 230 V with 7.5 kW maximum and 7.0 kW rated output, powered by a Rato R420-V engine of 420 cm³, with an electric starter and a starter battery included as standard. Voltage stabilisation of +/-1 % and distortion of THD ≤ 3 % make it suitable for electronic equipment, while the weight of 65 kg and the transport set make it easy to move. The rated current of 30.4 A is available from a single 32 A socket. It is a limited series from the manufacturer.

Inverter technology – voltage +/-1 % and THD ≤ 3 %

In an inverter generator the alternator output is processed electronically, so the voltage and the 50 Hz frequency stay stable regardless of engine speed. In the Fogo F 8001 iE the voltage tolerance is +/-1 % and harmonic distortion does not exceed 3 %, which is half of a conventional AVR generator (+/-2 %, THD up to 6 %). That makes it safe for boiler controllers, computers, chargers and measuring equipment, as well as power tools, pumps and site lighting.

Automatic speed reduction and fuel consumption

The engine automatically lowers its speed as the load drops, which reduces fuel consumption during lighter work. The manufacturer states 2.4 l/h at 50 % load and 3.9 l/h at full load. The 17 l tank therefore lasts about 7 hours at half load and about 4.4 hours at full load.

7.0 kW from one 32 A socket and a USB port

The panel has a 230 V 16 A socket, a 230 V 32 A socket from which you can take the full rated 7.0 kW (30.4 A) through a single cable, and a USB port. Gauges show voltage, frequency, running time and load in percent, while the overload indicator and electronic overload protection guard against exceeding the output. Induction motors (pumps, concrete mixers, compressors) draw 3-5 times more current at start-up, so match the load to the rated output, not the maximum.

Electric start, battery and 12 V charging

The engine is started by an electric starter powered by the starter battery that is part of the equipment, and manual start remains as a back-up. The generator also has a battery charging function: a 12 V socket with leads and a current of 8.3 A lets you top up a machine or vehicle battery. The low oil level lamp warns when there is too little oil in the 0.5 l sump.

65 kg, wheels and handles included

The dimensions of 605 x 514 x 537 mm and the weight of 65 kg are modest for a 7.0 kW output (the F 8001 iSG weighs 105 kg for comparison); the transport set with wheels is standard equipment, so you can roll the generator around the site without buying extra accessories. The sound power level is 105 dB(A), so use hearing protection during continuous work.

Which Fogo generator to choose

If you need a dual-fuel engine (petrol and LPG), choose the Fogo F 8001 iSG weighing 105 kg with a 20.3 l tank. If you prefer a conventional AVR generator with a 45 l tank and 6.2 kW, choose the Fogo F 7001 TRE. The F 8001 iE is 40 kg lighter than the iSG and comes with electric start and a battery as standard.

Buy the Fogo F 8001 iE generator at NORWIT.PL

Fogo F 8001 iE is a 7.0 kW inverter generator from a limited series, with electric start, a battery and a transport set as standard. Order it with fast delivery from NORWIT.PL. See the other models by Fogo and the full range in the inverter generators category.

Technical data

Cat. no.: 49861
Weight: 65 kg
Dimensions: 605 x 514 x 537 mm
Motor manufacturer: Rato
Frequency: 50 Hz
Voltage: 230 V
Fuel: Petrol
Displacement capacity: 420 cm³
Cooling: Powietrzem
Starter: Electric + manual
Engine model: R420-V
Fuel tank capacity: 17 l
Avr voltage stabilization: inwerter ± 1%
Power max.: 7,5 kW
Noise level: 105 dB(A)
Engine oil capacity: 0,5 l
Rated power (1~): 7,0 kW
Prąd znamionowy (1 faza): 30,4 A

Gwarancja

Gwarancja Fogo: 12 miesięcy ochrony z możliwością przedłużenia

Firma Fogo oferuje 12 miesięcy standardowej gwarancji na swoje produkty. Dodatkowo, dla agregatów Agrovolt istnieje opcja przedłużenia gwarancji do 2 lat, a dla agregatów z silnikiem Honda i Briggs & Stratton do 3 lat. To elastyczne rozwiązanie zapewnia dłuższą ochronę i pewność użytkowania.

Możliwość przedłużenia gwarancji to dodatkowy atut, który gwarantuje bezproblemowe użytkowanie przez dłuższy czas.

Questions and answers

What is the difference between the Fogo F 8001 iE inverter generator and an AVR generator?

In an inverter generator the alternator output is processed electronically, so the Fogo F 8001 iE keeps the voltage within +/-1 % with distortion up to 3 % THD and a stable 50 Hz frequency. A conventional generator with an AVR regulator, such as the Fogo F 7001 TRE, holds the voltage within +/-2 % at up to 6 % THD. The inverter is also lighter: 65 kg at a rated 7.0 kW, while the F 7001 TRE weighs 95 kg at 5.6 kW. The AVR generator, in turn, has a bigger tank (45 l against 17 l).

What loads can the Fogo F 8001 iE power?

The Fogo F 8001 iE delivers 7.0 kW rated (30.4 A at 230 V) and 7.5 kW maximum, and the full output is available from a single 32 A socket. It powers power tools, pumps, concrete mixers and site lighting, as well as equipment sensitive to voltage fluctuation: boiler controllers, computers and chargers. Induction motors draw 3-5 times more current at start-up than in steady running, so the largest such motor should be rated at about 1.4-2.3 kW.

How long does the Fogo F 8001 iE run on one tank?

The Fogo F 8001 iE tank holds 17 l of petrol. The manufacturer states consumption of 2.4 l/h at 50 % load and 3.9 l/h at full load, which gives about 7 hours of running at half load and about 4.4 hours at full load. The engine automatically lowers its speed at lower load, so during light work consumption is even lower and the run time longer.

What is the difference between the Fogo F 8001 iE and the F 8001 iSG?

Both generators are single-phase inverter models, but the Fogo F 8001 iSG has a dual-fuel engine (petrol and LPG), a 20.3 l tank and weighs 105 kg. The Fogo F 8001 iE runs on petrol, has a 17 l tank, weighs 65 kg and belongs to a limited series. Both have voltage stabilisation of +/-1 %. Choose the iSG if you want to run the engine on gas, and the iE when low weight and compact size matter.

Can the Fogo F 8001 iE generator be started manually?

The Fogo F 8001 iE has two starting systems: electric and manual. The starter, powered by the starter battery that is part of the equipment, turns over the single-cylinder Rato R420-V engine of 420 cm³ without effort, and manual start remains as a back-up. Check the oil level in the 0.5 l sump before starting; the low oil level lamp warns about missing oil but does not replace the check.

Can the Fogo F 8001 iE be connected to a home installation?

A generator must not be plugged into a wall socket. A home installation is powered through a mains-generator changeover switch or a dedicated inlet fitted by a qualified electrician, which prevents back-feeding the grid and running the grid and the generator at the same time. The Fogo F 8001 iE delivers 7.0 kW rated (30.4 A) with voltage stabilisation of +/-1 %, which suits a boiler controller and circulation pumps, but the 17 l tank lasts about 4.4 hours at full load, so plan a fuel reserve for longer outages.

What is included in the equipment of the Fogo F 8001 iE?

As standard the generator has a 230 V 16 A socket, a 230 V 32 A socket, a USB port, a socket with leads for charging a 12 V battery (8.3 A), gauges for voltage, frequency, running time and load in percent, an overload indicator, electronic overload protection, a low oil level lamp, a transport set with wheels and a starter battery. The dimensions are 605 x 514 x 537 mm and the weight is 65 kg. It is a limited series from the manufacturer.

Can the Fogo F 8001 iE be used in a garage or workshop?

Petrol engine exhaust contains carbon monoxide, which is odourless and toxic, so the generator must run outdoors or in a well-ventilated place, never in an enclosed room. The sound power level of the Fogo F 8001 iE is 105 dB(A), so use hearing protection during continuous work and place the generator at a safe distance from the windows and doors of the building.
