KIT Nivel System CL3R Red Crossline Laser + Sjjm1ex TRIPOD + CLS-300 SENSOR — photo 1 of 7

1 / 7

Nivel System · kit · 3 items · Cat. no. CL3R-zestaw 4

KIT Nivel System CL3R Red Crossline Laser + Sjjm1ex TRIPOD + CLS-300 SENSOR

Red
890 g
148 x 90 x 133 mm
Bluetooth receiver

zł2,015.45 net

zł2,479.00 gross

Leasing for businesses

from zł67.31 net / month

Indicative calculation · you set the terms

This kit includes 3 products — each also sold separately

Kit item	Cat. no.	Separately, net
Nivel System CL3R Red Crossline Laser	CL3R	separately, netzł1,051.22
Nivel System CLS-300 DIGITAL Laser Sensor	CLS-300 DIGITAL	separately, netzł690.00
Nivel System SJJ-M1 EX Tripod	SJJ-M1 EX	separately, netzł263.41

On order

sourced from the supplier

Ships in about 7 days

from the order date

Arrives a day after dispatch

we will confirm the date with your order

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Accessories

Telescopic Staff Nivel System LS-24
zł172.36 netzł212.00 gross
Laser Glasses Nivel System GL-R
zł69.00 netzł84.87 gross
Nivel System SJJ-M1 EX Tripod
zł263.41 netzł323.99 gross
Nivel System LP36 Strut Pole
zł290.00 netzł356.70 gross
Spreader Pole With Tripod Nivel System LP-36 EX
zł350.40 netzł430.99 gross
Nivel System TR-R Laser Target Plate
zł34.00 netzł41.82 gross
Nivel System CLS-5 Laser Sensor
zł290.00 netzł356.70 gross
Nivel System CLS-300 DIGITAL Laser Sensor
zł690.00 netzł848.70 gross
Nivel System Aku CL 4000 Battery for CL1, CL2, CL3, CL4 Cross Line Lasers
zł190.00 netzł233.70 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

Kit: Nivel System CL3R cross-line laser (red) + SJJ-M1-EX tripod + CLS-300 detector

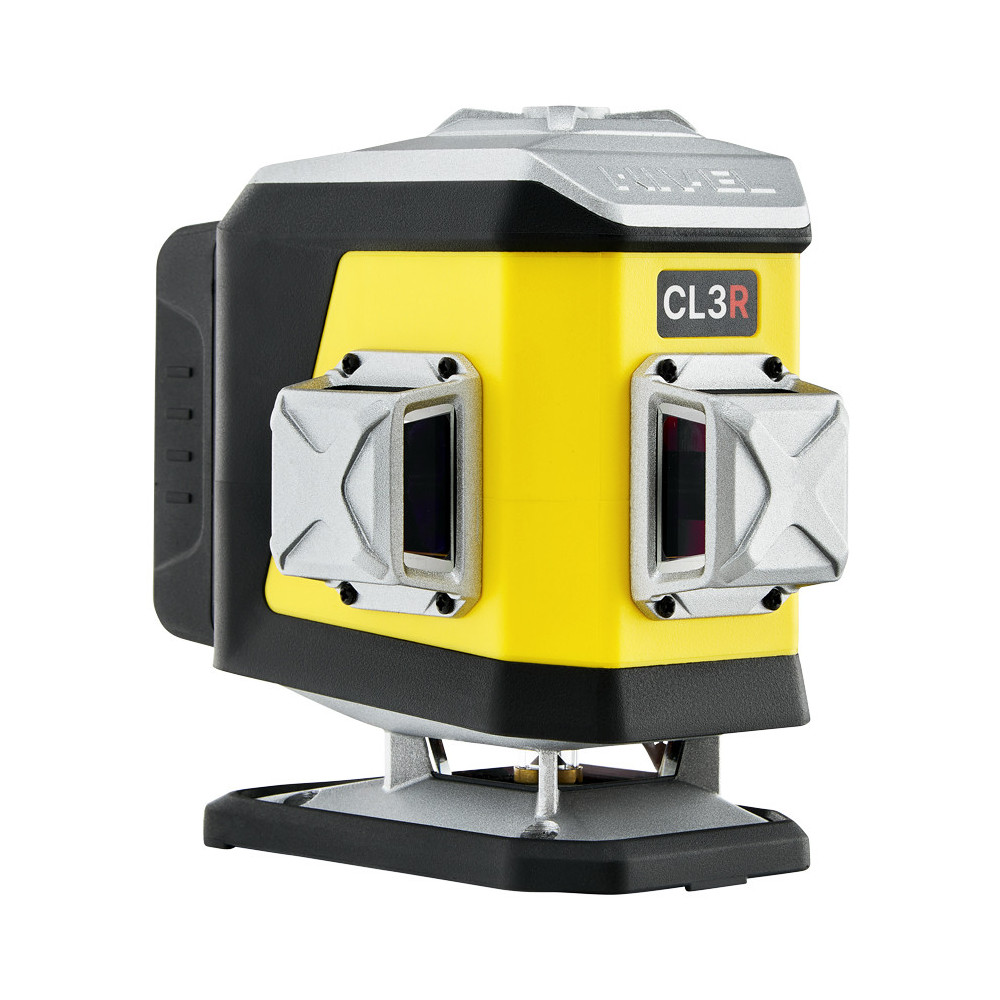

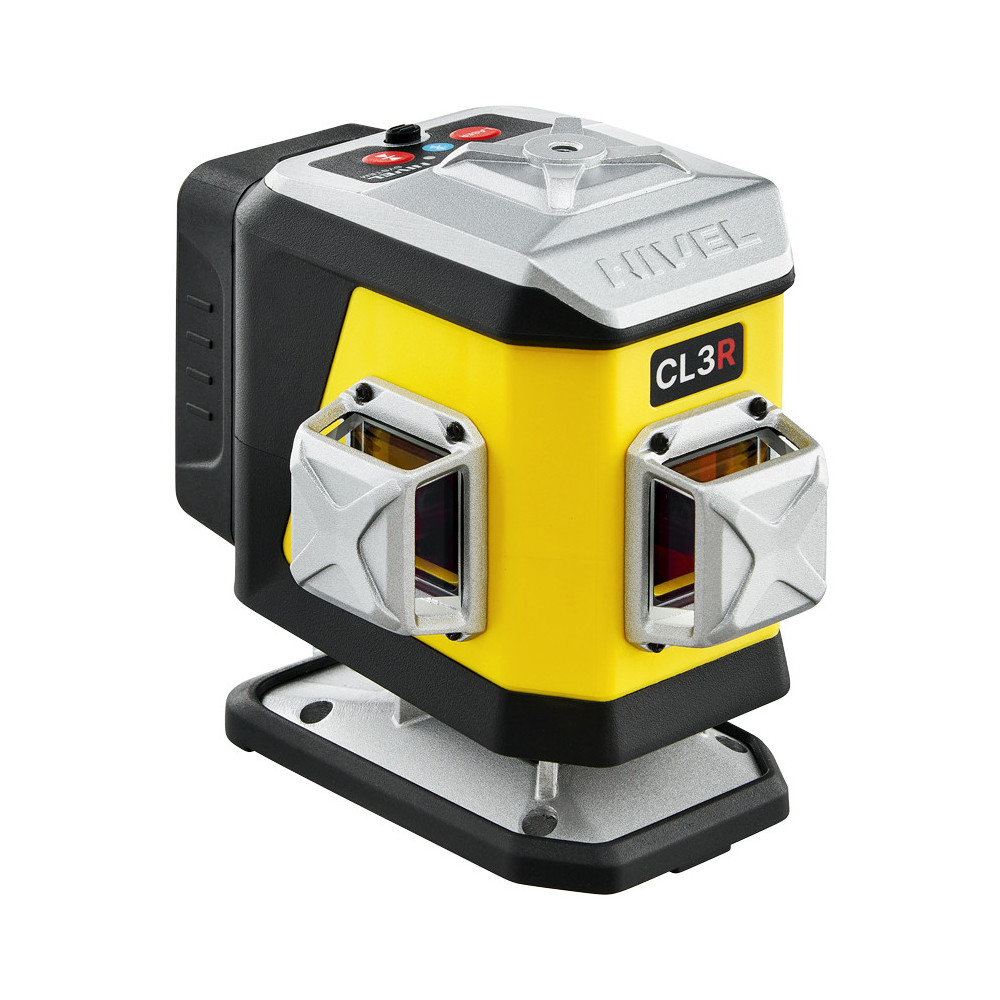

The Nivel System CL3R cross-line laser is a self-levelling 3×360° line laser — it projects one horizontal plane (360°) and two vertical planes (360°) for a full reference cross around the operator. Its red 635 nm beam is the most economical and popular choice — with long runtime and good line visibility indoors. This is a complete kit: the CL3R laser, an aluminium SJJ-M1-EX tripod and the digital Nivel System CLS-300 detector, which extends the working range from 30 to 70 m and lets you work outdoors in full sun.

Three 360° planes for every job

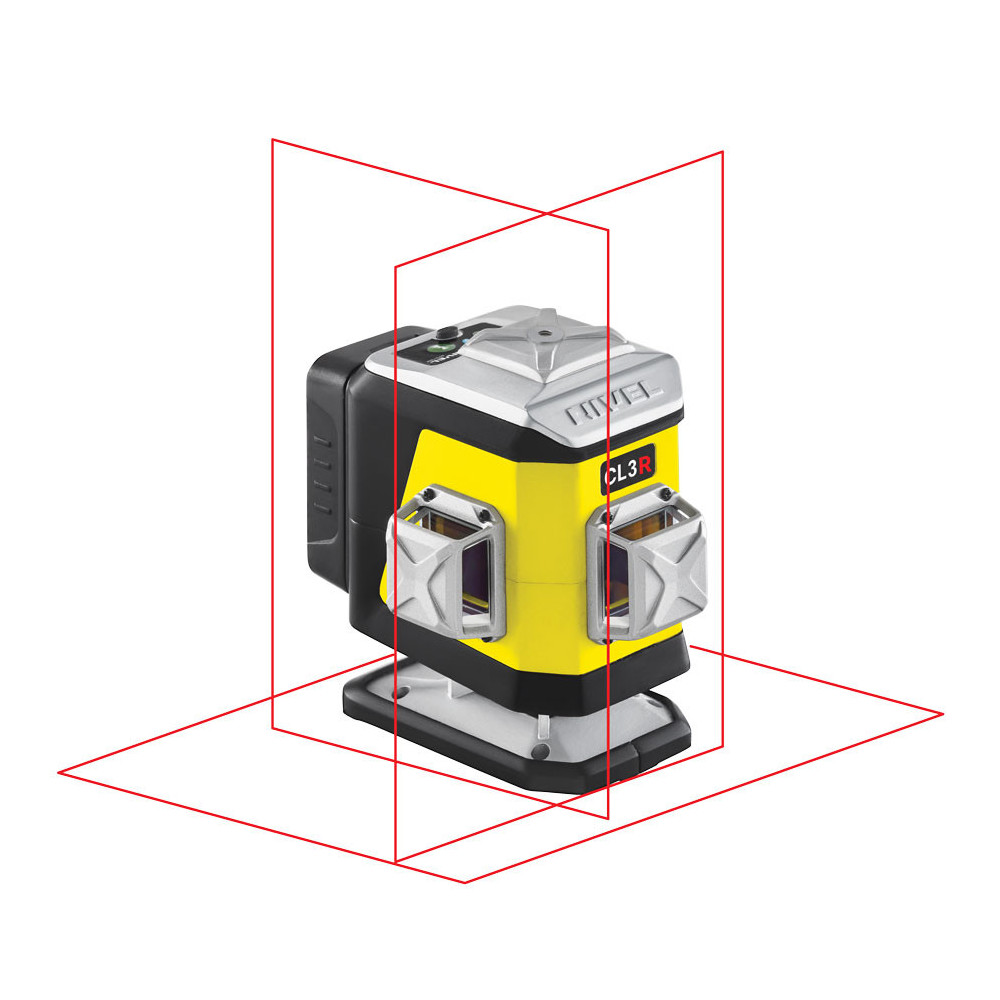

One horizontal and two vertical 360° lines let you lay out walls, set plumb points and carry a level line around the whole room without repositioning the tool. It excels at tiling, drywall framing, suspended ceilings, kitchen and furniture fitting and installation work.

±2 mm/10 m accuracy with self-levelling

A magnetic compensator levels the beams automatically within ±3° to an accuracy of ±2 mm/10 m and warns with a sound when out of range. Lock the compensator and the laser works at any angle for sloped layout.

30 m range, and up to 70 m with the CLS-300

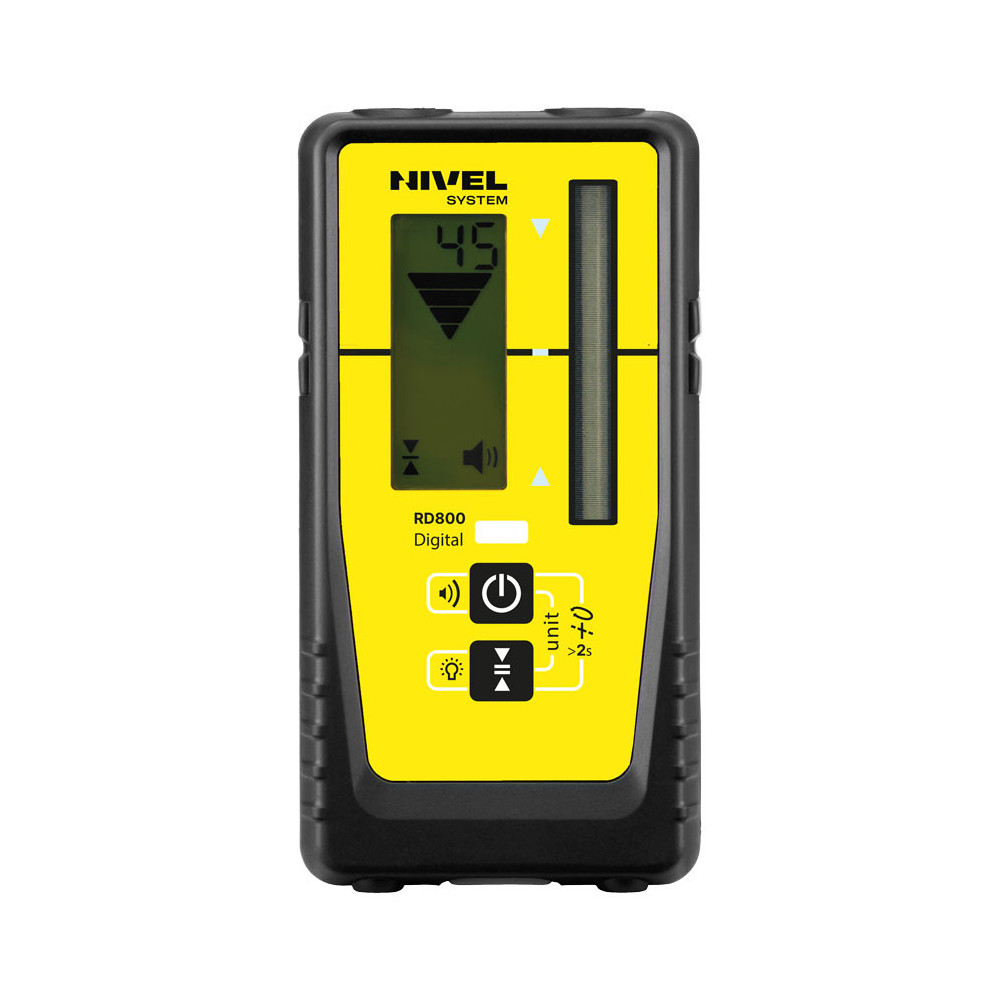

The lines are visible to the naked eye up to 30 m. The included digital CLS-300 detector picks up the beam even when it is invisible in sunlight and extends the range to 70 m, so one laser covers both indoor and open-site work.

Power and build for the site

A Li-ion 3.7 V (4000 mAh) battery gives long runtime on a single charge, and the IP54 rating protects against dust and splashes from -10°C to +50°C. The body weighs 890 g (148×90×133 mm), and Bluetooth control from a smartphone changes functions without walking up to the laser.

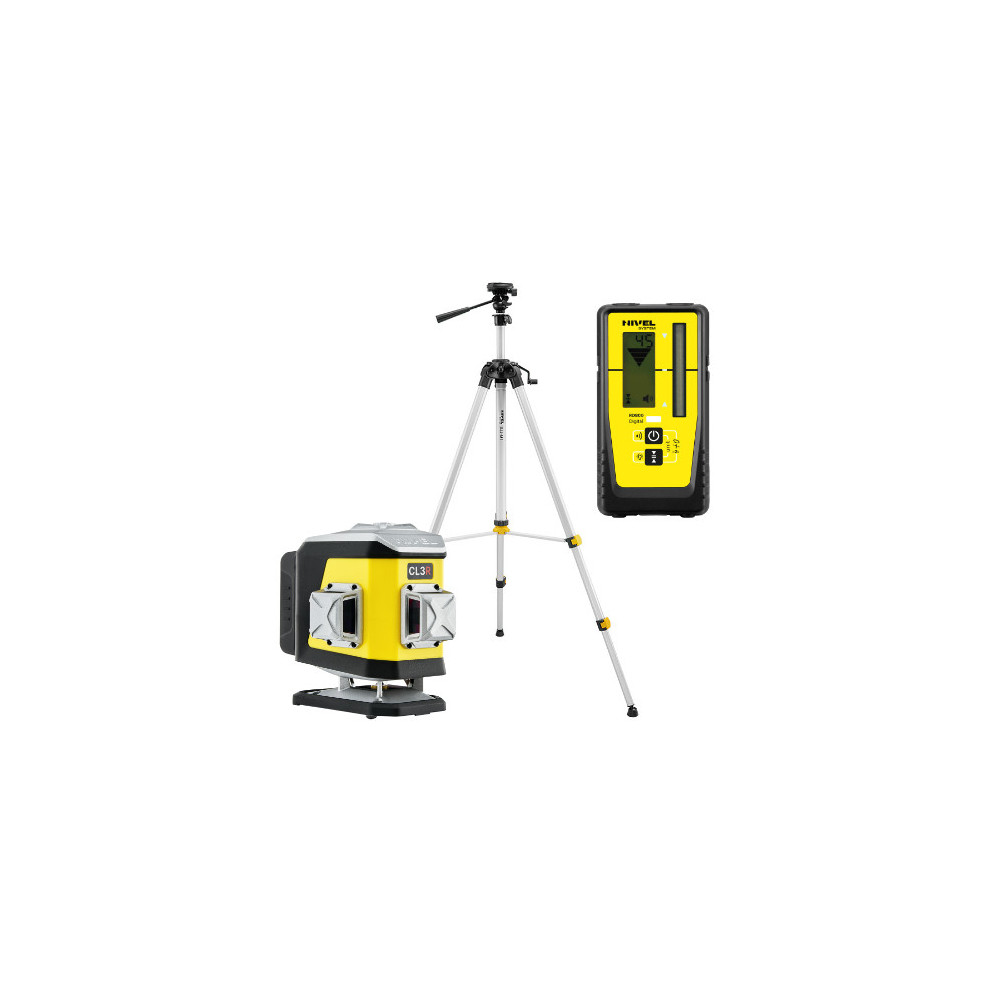

What is in the kit

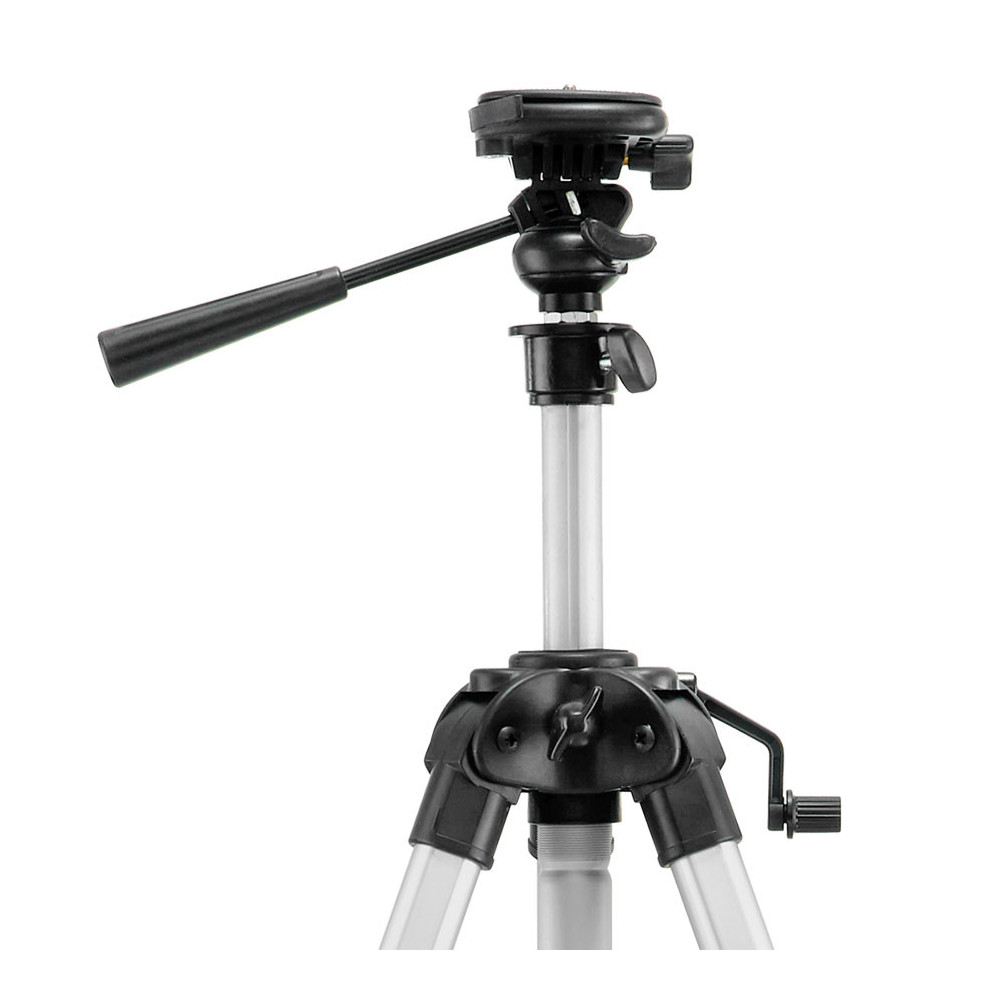

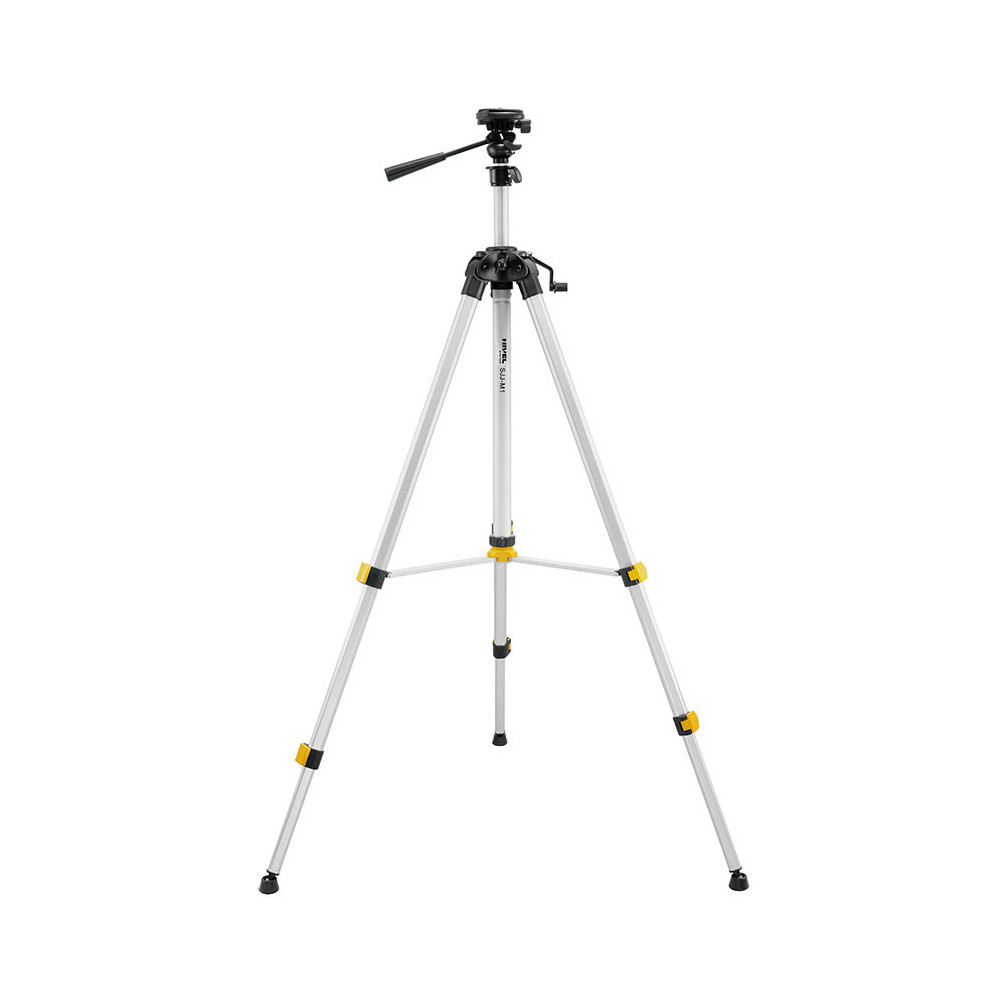

The CL3R laser, an aluminium SJJ-M1-EX tripod (62–182 cm, fine-levelling adapter, 1/4" and 5/8" threads) and the digital CLS-300 DIGITAL receiver with bracket. The set is ready to work straight out of the box.

Red beam — when it is enough

A red 635 nm laser is a proven standard: cheaper, with the longest battery runtime and very good indoor visibility. It is plenty for interior work, and with the CLS-300 detector it also handles outdoor tasks.

Nivel System CL3R cross-line laser — order the kit at NORWIT.PL

Choose proven Nivel System equipment with warranty and service. Browse the other cross-line lasers in our range and match the kit to your tasks.

Technical data

Cat. no.: CL3R-zestaw 4
Weight: 890 g
Dimensions: 148 x 90 x 133 mm
Bluetooth receiver: Tak
Brand: Nivel System
Power supply: Li-ion 3,7 V (4000 mAh)
Operating temperature range: -10 °C do +50 °C
Leveling accuracy: ±2,0 mm / 10m
Self-leveling range: ±3,0°
Slope of the planes: Tak
Generated planes: 1 x poziomo (360°), 2 x pionowo (360°)
Tripod mount: 1/4", 5/8"
Working range: 30 m (70 m z czujnikiem)
Type of laser beam: Laser czerwony (638 nm), klasa 2
Resistance class: Ip54
Kolor lasera: Red
Cooperation with the receiver: Rd 800 i CLS-5

Gwarancja

Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia

Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.

Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.

Questions and answers

What beam does the CL3R have and how do the colours differ?

The CL3R projects a red beam (635 nm), the most economical with the longest runtime — good for interiors. For comparison: green 515 nm is the brightest to the eye, red 635 nm the most economical, and violet 450 nm gives the highest contrast on bright surfaces. For better line visibility add the GL-R laser glasses.

What is the CLS-300 detector for and how much does it extend the range?

The CLS-300 DIGITAL detector picks up the beam when it is invisible to the eye and extends the working range from 30 to 70 m, so the same laser works indoors and on open sites, even in full sun.

Can the CL3R be used outdoors?

Yes. The IP54 rating protects it against dust and splashes, and the included CLS-300 detector reads the line in sunlight up to 70 m, where it is no longer visible to the eye. The operating temperature is -10°C to +50°C.

How does self-levelling work and can it lay out on a slope?

A magnetic compensator self-levels the beams within ±3° and warns with a sound when out of range, to an accuracy of ±2 mm/10 m. The compensator can be locked to project lines at any angle for sloped work.

What is included in the CL3R kit?

The kit includes the CL3R cross-line laser, an aluminium SJJ-M1-EX tripod (62–182 cm) with a fine-levelling adapter and the digital CLS-300 detector. Ready to work straight out of the box.

How do CL3, CL4 and CL4D differ?

CL3 projects three 360° planes (1 horizontal, 2 vertical), CL4 four (2 horizontal, 2 vertical) at ±2 mm/10 m with a magnetic compensator. CL4D is the electronic version: four planes, ±1 mm/10 m accuracy, faster levelling and slope work without flicker.
