Technical Data
- Weight: 0,3 kg
- Dimensions: 155 x 75 x 30 mm
- Automatic shutdown: Po 10 min braku reakcji / odbioru wiązki laserowej
- Brand: Nivel System
- Power supply: 4 x AAA
Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!
Free delivery over PLN 3,000
25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Accessories
-
Nivel System CL5G Green Crossline Laser
zł3,062.70 tax incl. 2490,00 zł tax excl. -
Nivel System CL5B Blue Crossline Laser
zł3,308.70 tax incl. 2690,00 zł tax excl. -
Nivel System CL5R Red Crossline Laser
zł2,816.70 tax incl. 2290,00 zł tax excl. -
Nivel System CL5V Violet Crossline Laser
zł3,554.70 tax incl. 2890,00 zł tax excl. -
Laser krzyżowy Nivel System CLx3R czerwony
zł1,955.70 tax incl. 1590,00 zł tax excl.
Description

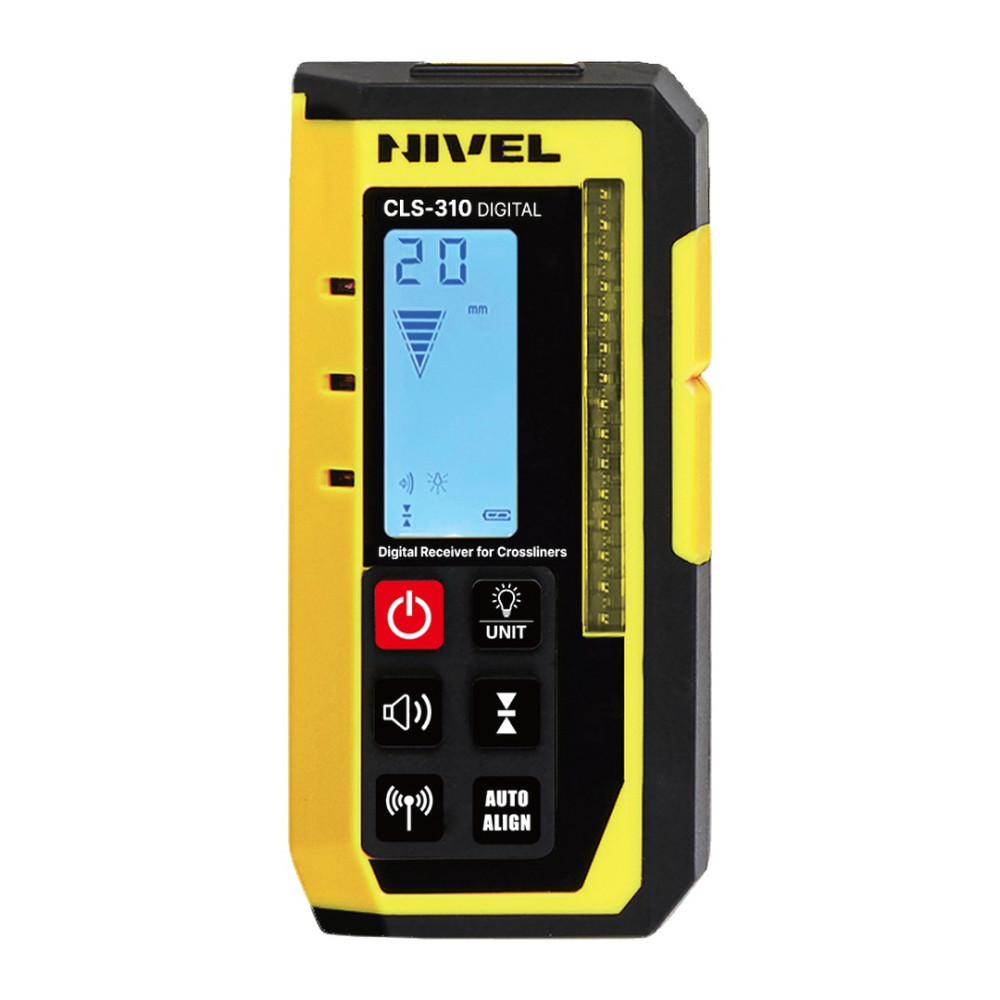

Nivel System CLS-310 DIGITAL laser sensor – digital with auto-alignment
The Nivel System CLS-310 DIGITAL is a digital laser sensor (receiver) for cross-line lasers with an auto-alignment function — it works with motorized CLx3 MOTOR lasers. The height difference is shown numerically on the display. From the Nivel System brand.
Digital precision and auto-alignment
The sensor automatically captures and fits the beam to its centre point, and a 70 mm reception band allows fast laser capture. Three accuracy modes ±1 / ±2 / ±5 mm, a numeric height-difference readout and a ±45° reception angle.
Durability and power
A solid IP54 housing resistant to water and dust, auto shut-off after 10 min, operating range -20 °C to 50 °C, 4 × AAA power, dimensions 155 × 75 × 30 mm, weight 0.3 kg. Works with CL1–CL5 cross-line lasers at 10 kHz. Rod bracket included.
Order the CLS-310 DIGITAL sensor at NORWIT.PL
Pick the digital auto-alignment sensor for the CLx3 MOTOR laser. Check the receivers and detectors and the Nivel System range at NORWIT.PL.
Product Details
Indeks:
CLS-310 DIGITAL
- Weight
- 0,3 kg
- Dimensions
- 155 x 75 x 30 mm
- Automatic shutdown
- Po 10 min braku reakcji / odbioru wiązki laserowej
- Brand
- Nivel System
- Power supply
- 4 x AAA
- Operating temperature range
- -20 °C - 50 °C
- Leveling accuracy
- 1,0 / 2,0 / 5,0 mm
- Resistance class
- Ip54
- Detection range
- 70 mm
- Laser beam reception
- Wiązka czerwona, zielona, niebieska i fioletowa
- Auto-fit function
- Tak — z laserami CLx3 MOTOR
- Kompatybilność
- CL1 | CL2 | CL3 | CL4 | CL5 (10 kHz)
Questions and answers
How does the CLS-310 DIGITAL differ from the CLS-300 DIGITAL?
The CLS-310 DIGITAL adds an auto-alignment function and works with motorized CLx3 MOTOR lasers. Otherwise both sensors share similar specs: 70 mm band, ±1/2/5 mm accuracy, IP54, 4 × AAA power.
Which lasers does the CLS-310 DIGITAL work with?
It works with CL1–CL5 cross-line lasers at 10 kHz (made from 2022 onward) and with CLx3 MOTOR lasers for auto-alignment. It does not work with older 5 kHz lasers.
What accuracy and reception band does the CLS-310 have?
The sensor has a 70 mm reception band and three accuracy modes ±1 / ±2 / ±5 mm, with a numeric height-difference readout on the display and a ±45° reception angle.
How does auto-alignment work in the CLS-310 DIGITAL?
The sensor automatically captures and fits the beam to its centre point, and paired with a CLx3 MOTOR laser it controls the alignment of the laser line to the sensor.
What power and protection does it have?
Power 4 × AAA, auto shut-off after 10 min, IP54 housing, operating range -20 °C to 50 °C, dimensions 155 × 75 × 30 mm, weight 0.3 kg. Rod bracket included.
How does the CLS-310 differ from the CLS-10 MOTOR?
The CLS-310 DIGITAL is a digital receiver with auto-alignment for CLx3 MOTOR lasers, while the CLS-10 MOTOR is an auto-alignment sensor working with the motorized SJJ-M10 MOTOR tripod.
