Evak · Cat. no. EUS-5.20-SAK

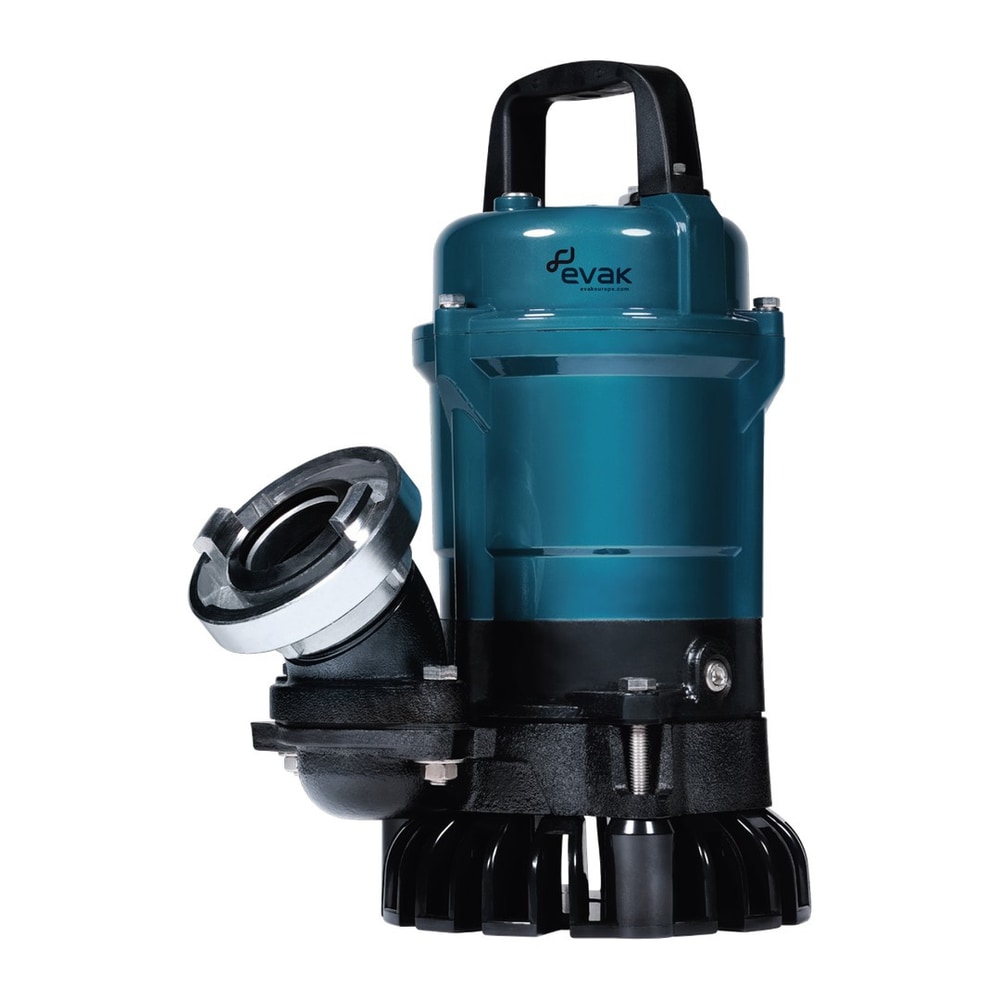

Pompa szlamowa zatapialna 1500W-EVAK 80 EUS-5.20 SAK
- 20,5 kg
- 1,5 kW / 2 KM
- 50 Hz
- 230 V
zł3,950.00 net
zł4,858.50 gross
Leasing for businesses
from zł131.91 net / month
Indicative calculation · you set the terms
On order
sourced from the supplier
Ships in about 1 day
from the order date
Arrives a day after dispatch
we will confirm the date with your order
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Free delivery over PLN 3,000
Accessories
Description
EVAK 80EUS-5.20 SAK submersible sludge pump — 1.5 kW for water with sand, sludge and mud
A submersible pump is a dewatering pump that operates fully immersed in the pumped liquid. The EVAK 80EUS-5.20 SAK rated at 1.5 kW delivers up to 660 l/min (39.6 m³/h) at a head of up to 21.5 m and passes solids up to 25 × 9 mm. The „SAK" designation marks the version with a float switch that starts and stops the pump automatically as the water level changes, so it drains trenches, cellars and flooded rooms without constant supervision.
Abrasion-resistant HYTREL impeller
The semi-open impeller coated with thermoplastic HYTREL elastomer withstands contact with sand, silt and fine gravel without rapid wear. That is why the 80EUS-5.20 SAK handles heavily contaminated water, not only clean groundwater.
Float switch (SAK version)
The integrated float turns the pump on when the water rises and off when it drops. It protects the motor against dry running and lets you leave the pump in the trench overnight. The non-float version (S) requires manual control.
3-inch outlet and 660 l/min output
The 3-inch (80 mm) discharge port and output of up to 660 l/min (39.6 m³/h) quickly remove large volumes of water from construction trenches, flooded cellars, pumping stations and tanks. The maximum head is 21.5 m.
Double seal in an oil bath
Two silicon-carbide mechanical seals running in an oil bath and automatic thermal protection shield the motor (class S1, IP68) from overheating and leakage. The 20 m H07RN-F cable allows work away from the socket.
Application: dewatering and dirty water
The EVAK 80EUS-5.20 SAK dewatering pump moves water with sand, construction sludge, trench water and flooding after failures or heavy rain. With a high sand content it is worth adding the low-suction flange, which lowers the suction level to a few millimetres.
Which EUS model to choose
The 80EUS-5.20 SAK is the most powerful single-phase model in the EUS series. For smaller jobs the evak 50 eus-5.10s (750 W, 370 l/min) or the compact evak 50 eus-5.05s (400 W) is enough. Sewage with long fibres calls for a different design.
Order the EVAK sludge pump at NORWIT.PL
The EVAK 80EUS-5.20 SAK is a durable pump for the toughest dewatering tasks. See the full brand offer on the EVAK page and the other electric sludge pumps. Order online — we ship across the country.
Technical data
- Cat. no.
- EUS-5.20-SAK
- Weight
- 20,5 kg
- Engine power
- 1,5 kW / 2 KM
- Frequency
- 50 Hz
- Voltage
- 230 V
- Performance
- 660 l/min
- Maximum solids diameter
- 25 x 9 mm
- Connection diameter
- 80 mm / 3"
- Max. lifting height
- 21,5 m
- Type of switch
- Wyłącznik pływakowy
- Power cord length
- 7 m
- Maximum immersion depth
- 10 m
- Maximum liquid temperature
- 40 °C
Gwarancja
2-letnia Gwarancja na Produkty Evak
Firma Evak oferuje swoim klientom dwuletnią ochronę gwarancyjną na wszystkie swoje produkty. Oznacza to, że każda maszyna zakupiona od Evak jest objęta pełną ochroną przez 24 miesiące od daty zakupu.
Dwuletnia gwarancja obejmuje wszystkie komponenty i podzespoły, co gwarantuje bezproblemowe użytkowanie przez cały okres ochrony.
Produkty Evak to inwestycja w trwałość i efektywność, a 2-letnia gwarancja daje pewność, że sprzęt będzie działał sprawnie przez długi czas.
Questions and answers
What is the EVAK 80EUS-5.20 SAK submersible sludge pump used for?
The EVAK 80EUS-5.20 SAK is a submersible dewatering pump for heavily contaminated water: sludge, water with sand, mud and trench water. Rated at 1.5 kW it delivers up to 660 l/min and suits dewatering of construction sites, flooded cellars, pumping stations and equipment rental. It is not intended for sewage with long fibres or for drinking water.
What is the difference between the SAK and S versions?
The SAK designation is the version with a float switch, while the S version has manual control. The float automatically starts the pump when the water rises and stops it when the level drops, so you can leave the pump unattended and protect the motor from dry running. The other parameters (1.5 kW, 660 l/min, 21.5 m) are the same.
How much water does the pump move and to what height?
The maximum output is 660 l/min, i.e. 39.6 m³/h, and the maximum head is 21.5 m. Actual output depends on the delivery height and hose diameter — the higher the water is pumped, the lower the flow. The discharge port is 3 inches (80 mm). For smaller jobs the weaker evak 50 eus-5.10s (750 W, 370 l/min) is enough.
Can the pump handle water with sand and sludge?
The semi-open impeller coated with HYTREL elastomer is abrasion-resistant and passes solids up to 25 × 9 mm. With a large amount of sand it is worth fitting the low-suction flange, which lowers the suction level to a few millimetres. A double silicon-carbide mechanical seal in an oil bath protects the motor from liquid ingress.
How deep can the pump be submerged and is dry running a risk?
The pump can be submerged to a depth of 10 m and the maximum liquid temperature is 40°C. The built-in float in the SAK version switches the pump off once the water drops, so the risk of dry running is minimal; in addition automatic thermal protection cuts the power on overheating. The H07RN-F cable is 20 m long.
