Schwamborn · Cat. no. 713166

Segment diamentowy Schwamborn G-VSF do szlifierki DSM 250

ETX-1
22
Schwamborn DSM 250

zł199.00 net

zł244.77 gross

On order

sourced from the supplier

Ships in about 1 day

from the order date

Arrives a day after dispatch

we will confirm the date with your order

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Accessories

SCHWAMBORN DSM 250 Floor Grinder
zł16,178.00 netzł19,898.94 gross
Segment diamentowy Schwamborn G-GC do szlifierki DSM 250
zł199.00 netzł244.77 gross
Schwamborn G-HC Diamond Segment for DSM 250 Grinder
zł199.00 netzł244.77 gross
Schwamborn G-SSC Diamond Segment for DSM 250 Grinder
zł199.00 netzł244.77 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

Schwamborn G-VSF diamond grinding segment for the DSM 250 floor grinder – for very hard concrete, coatings and epoxy resins

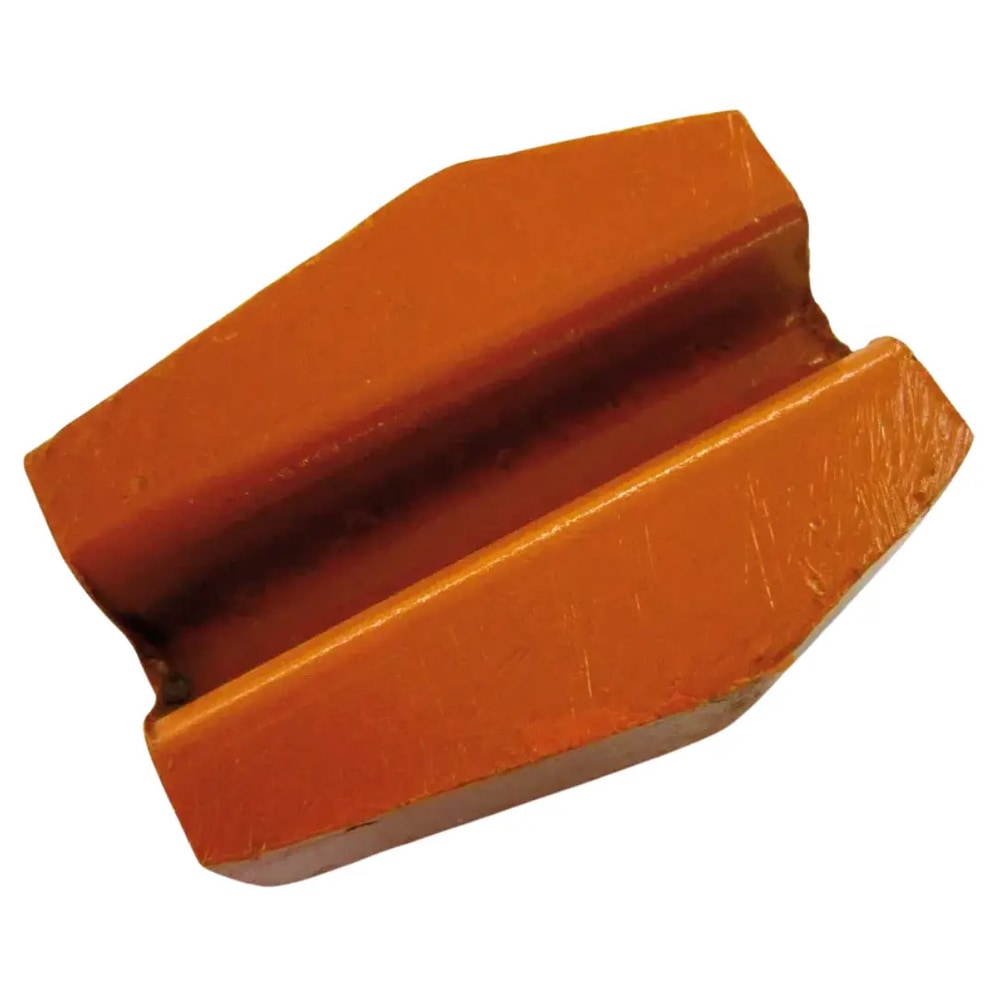

The Schwamborn G-VSF diamond segment (code 713166) is an abrasive tool with diamond set in a metal bond, mounted on the disc of the Schwamborn DSM 250 single-disc concrete floor grinder. This orange segment from the ETX-1 „Giants Guards" (AA+ class) range is intended for grinding very hard concrete, coatings and epoxy resins and medium-sized areas – levelling, opening and preparing the substrate for further steps.

Application and substrate hardness

The G-VSF segment is matched to: very hard concrete, coatings and epoxy resins. The range has four colour-coded types for different concrete hardness: G-SSC (soft concrete, screed, asphalt), G-GC (medium-hard), G-HC (hard) and G-VSF (very hard concrete, coatings, resins). Choosing the right type drives working speed and diamond life.

Grit

Version 713166 has grit 22 – coarse, for fast stock removal and opening the concrete. The lower the number, the coarser the grain; higher grits are used for finishing. Segments of the same hardness are combined in successive grits, moving from coarse to finish.

Compatibility and mounting

ETX-1 tool mount. The segment fits the Schwamborn DSM 250 floor grinder (230 V, 2.2 kW, 250 mm disc). 3 or 6 pcs are mounted on the disc, matched to the task and machine load.

Metal bond

The diamond is set in a metal bond that wears at a rate matched to the concrete hardness, so the diamond keeps exposing fresh cutting edges. Matching the type to the actual substrate hardness protects the segment from wearing too fast or too slowly.

Order the G-VSF segment for the DSM 250 at NORWIT.PL

The G-VSF diamond segment is a consumable for grinding very hard concrete, coatings and epoxy resins. Explore the full range of Schwamborn tools and machines at NORWIT.PL and pick the grit for your job.

Technical data

Cat. no.: 713166
Application: Szlifowanie bardzo twardego betonu, powłok i żywic epoksydowych
Mounting: ETX-1
Gradation (grain size): 22
Kompatybilność: Schwamborn DSM 250

Questions and answers

What concrete hardness is the Schwamborn G-VSF diamond segment for?

The G-VSF segment is intended for very hard concrete, coatings and epoxy resins. The ETX-1 range has four colour-coded types: G-SSC (soft concrete, screed and asphalt), G-GC (medium-hard), G-HC (hard) and G-VSF (very hard concrete, coatings and resins). Matching the type to the actual substrate hardness drives grinding speed and diamond life.

How many segments are mounted on the Schwamborn DSM 250 grinder?

3 or 6 segments are mounted on the disc of the Schwamborn DSM 250 grinder, depending on the task and machine load. The DSM 250 runs on 230 V and 2.2 kW with a 250 mm disc. Segments are held in the ETX-1 mounting system.

What does the segment grit mean and which to choose?

Grit is the diamond grain size — the lower the number, the coarser the grain and the faster the stock removal. Version 713166 has grit 22, i.e. coarse, for opening and levelling concrete. For finishing, higher grits of the same type are used in sequence, moving from removal to finish.

How does the G-VSF segment differ from the others in the range?

The segments differ in bond hardness matched to the concrete and in colour coding. G-VSF is a segment for very hard concrete and coatings. For a different substrate choose the right type, e.g. Schwamborn G-HC (a segment for hard concrete). All share the ETX-1 mount and fit the DSM 250.
