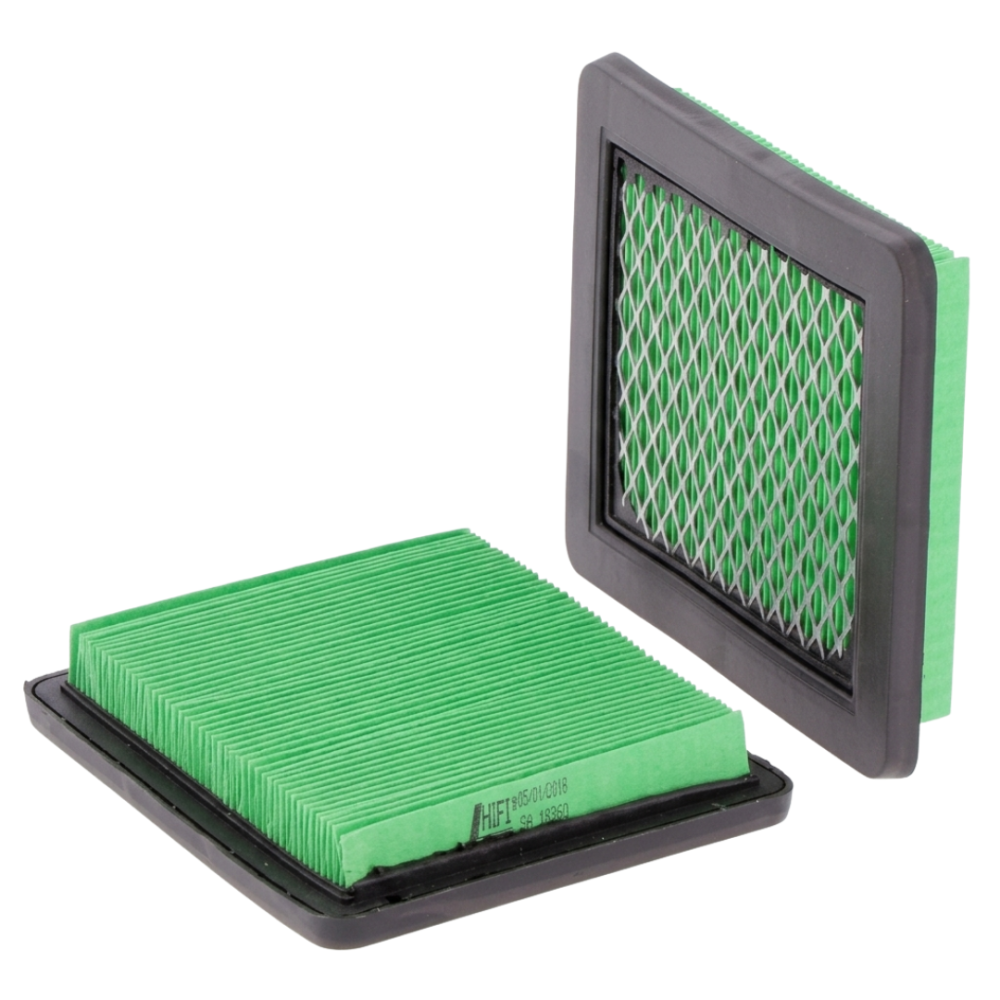

Square Air Filter for Bomag BT 60 / BT 65 Rammer

Gwarancja

Gwarancja 3-2-1 od Bomag

Firma Bomag oferuje program gwarancyjny 3-2-1, który zapewnia ochronę kluczowych komponentów maszyn budowlanych:

• 3 lata ochrony dla przekładni wibratora
• 2 lata ochrony dla silnika spalinowego
• 1 rok ochrony dla elementów i podzespołów

Wybierając produkty Bomag, zyskujesz pewność, że Twoje maszyny będą działać niezawodnie przez długi czas. Inwestuj w jakość i trwałość z gwarancją Bomag.

Questions and answers

Which rammers does air filter 05748269 fit?

Part number 05748269 is intended for Bomag BT 60 and BT 65 rammers in versions fitted with the Honda GX 120 engine. It is a square panel element with a foam pre-cleaning layer. The Bomag BVT 65 uses a Honda GX 100 engine and requires a different element, so this filter should not be swapped between those machines.

What is the difference between filter 05748269 and 05727224?

Both numbers cover air filters for Bomag rammers, but they correspond to different intake arrangements. Filter 05748269 is square and specified for Honda GX 120 units in the BT 60 and BT 65, while 05727224 covers a wider range of machines including the BT 65/4, BT 80 D and the BW 65 H roller. The deciding factor when ordering is the shape of the existing element and the number stamped on it, not the machine model name alone.

Can the foam pre-cleaner be washed and reused?

The foam pre-cleaning layer can be rinsed in lukewarm water with detergent, dried thoroughly and refitted, which is a standard maintenance task. The paper element must never be treated this way, as water permanently destroys the structure of the filter medium. Once the foam is torn, hardened or soaked with oil, it is replaced together with the main element.

How often should the air filter in a Bomag BT 60 / BT 65 be replaced?

The element should be checked daily before work starts and is usually replaced every 50-100 operating hours. Compacting dry sand can shorten that interval several times over, because the rammer works a dozen or so centimetres above the material being compacted and draws air from the dustiest zone. Element condition decides the replacement, not the hour meter reading.
