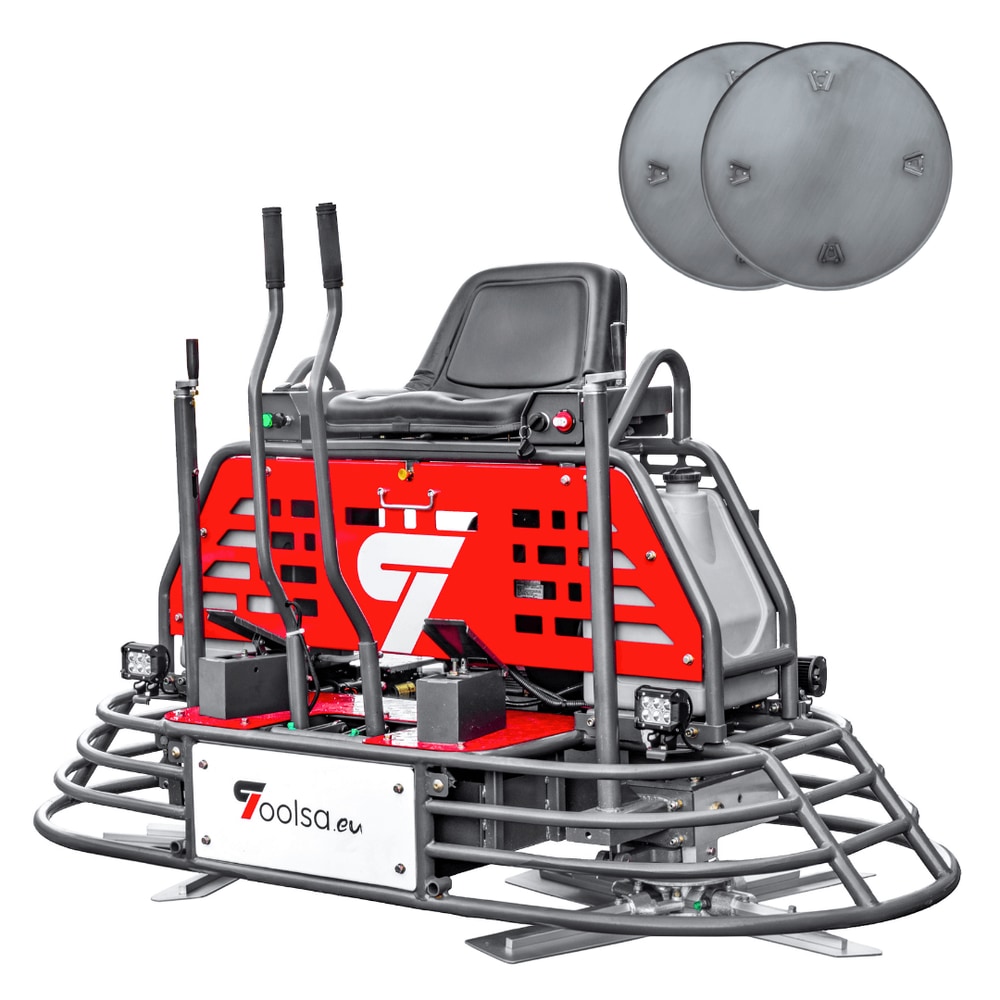

Toolsa TPT-836 EHG Self-Propelled Power Trowel (Rato R740 | 25 HP) — photo 1 of 8

1 / 8

Toolsa · Cat. no. TPT836

Toolsa TPT-836 EHG Self-Propelled Power Trowel (Rato R740 | 25 HP)

350 kg
1960 x 1080 x 1290 mm
Two-cylinder, four-stroke
18.5 kW | 25 HP

zł25,000.00 net

zł30,750.00 gross

Leasing for businesses

from zł589.22 net / month

Indicative calculation · you set the terms

In stock

3 pcs in stock

Same-day dispatch

order by 13:00

Arrives next day

on working days

Prefer to talk? +48 732 081 091

25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Free delivery over PLN 3,000

Accessories

BARIKELL Pala Blades 4-90
zł135.00 netzł166.05 gross
Toolsa Power Trowel Float Pan, 945 x 3 Mm
zł250.00 netzł307.50 gross
Need a different part?We will match it to your machine+48 732 081 091

Description

Toolsa TPT-836 EHG ride-on power trowel – 25 HP Rato R740 and a 1910 mm working diameter

The Toolsa TPT-836 EHG is a petrol ride-on power trowel with two rotors and a 1910 mm working diameter, built to finish large concrete slabs. It is powered by a twin-cylinder, four-stroke Rato R740 engine of 739 cm³ rated at 25 HP, and the machine is fitted with Efficient Helical Gearbox (EHG) gearboxes.

Toolsa TPT-836 EHG up close

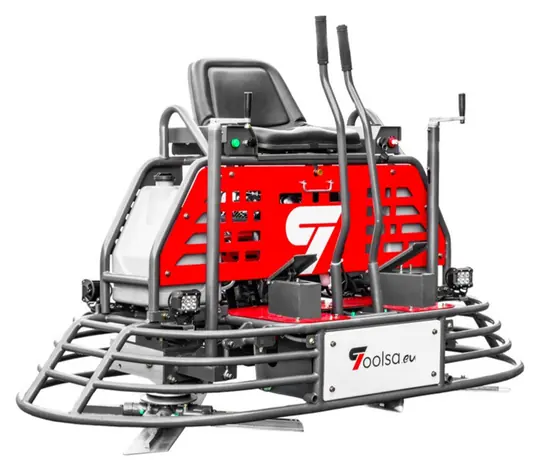

Toolsa EHG ride-on power trowel with operator seat and red body, angled front view — Ride-on power trowel for large slabs, 25 HP
Two rotors with 8 blades and a two-cylinder Rato R740 engine of 739 cm³ work a 1910 mm wide strip with every pass.
Engine power
18.5 kW
Rotors
2 × 900 mm
Gearboxes
EHG

Torque reserve under load

18.5kW

At 2500 rpm the Rato R740 produces 47 N·m, so the rotors hold a steady pace even on stiffening concrete.

Compare Toolsa models

TPT-836 LR Rato Low Rider, Rato R740 V-TwinTPT-1046 Rato R999, 2 x 1200 mmTPT-836 LR Honda Low Rider, Honda GX 690

the same power, 18.5 kW

15,000 zł less (net)
7.2 kW less power

2 kW more power
4,900 zł less (net)

TPT-836 EHG advantagewhat you pay for it

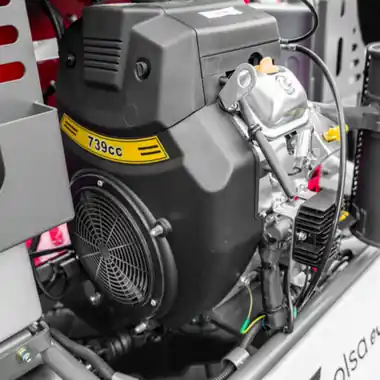

Rato R740 engine in a black housing with a yellow 739cc decal and a cooling fan — Dependable Rato R740 power
A two-cylinder 739 cm³ engine with electric start and electronic speed governing keeps the rotors turning at an even pace.

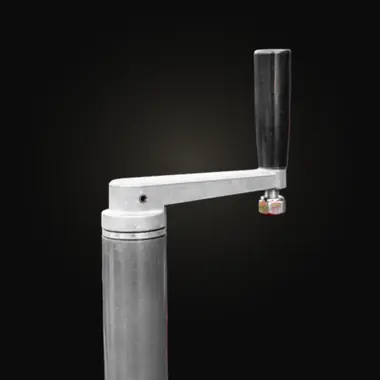

Black blade pitch crank on a steel post — Pitch control by crank
Blade pitch is changed with the crank: first on the left side of the machine, then matched on the right, at a reduced pace.

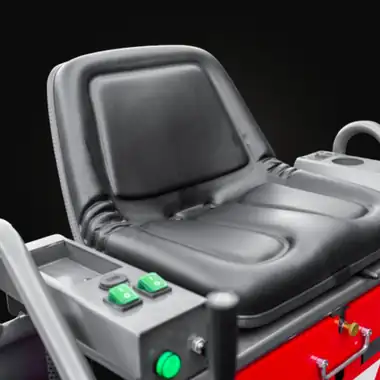

Black operator seat of the trowel with switches on the console beside it — Operator presence seat
The operator presence system works with the throttle switch, so the machine needs no foot-operated emergency stop.

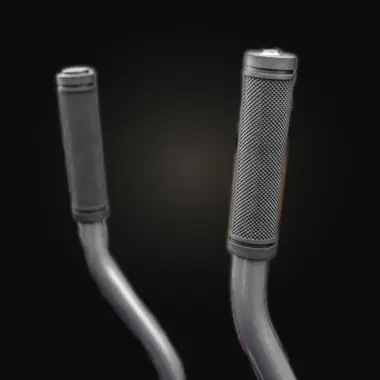

Two rubber-coated grips of the steering levers — Two-lever steering
The levers steer the machine in six directions: forward, backward, sideways left and right, and rotating both ways.

Console within the operator's reach

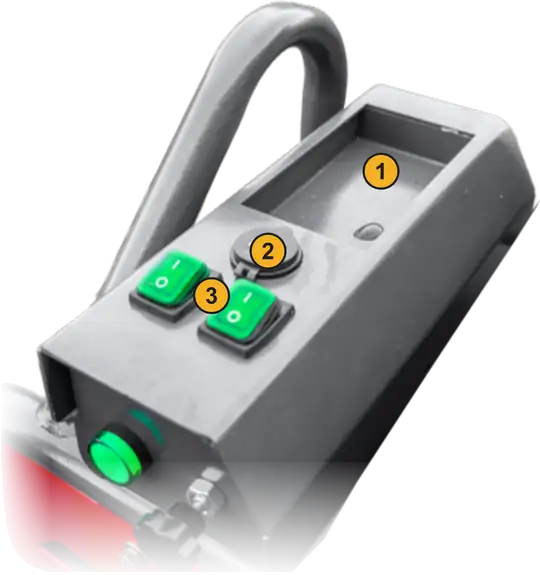

Operator console of the trowel with two green switches, a socket and a tray

1 · phone tray2 · USB charging socket3 · two switches

Switches, a charging socket and a phone tray are in one block by the seat, while the hour meter and a cup holder are in the other.

One pass, a 1910 mm path

clockwiseanticlockwisepattern +pattern x

1910 mm

The rotor on the left runs clockwise and the one on the right anticlockwise; blades arranged as “+” and “x” never touch each other.

Details for comfort and safety

Work after sunsetfront and rear work lights
Spraying without downtimea built-in water tank feeds the spray system
Safe parking and servicebattery cut-off switch and key ignition
Service by operating hourshour meter and a cup holder

Blade pitch matched to the concrete stage

increases as the concrete setswet concreteflatplasticslightsemi-hardmorepolishingmaximum

As the concrete sets, the blade pitch increases: from flat on a wet surface to maximum when polishing the hard slab.

Spare blades

1.6l

Simple engine servicing

The crankcase takes 1.6 l of oil, and the air filter combines two layers, paper and foam, to keep dust away from the engine.

8pcs

355 × 150 mm blades and 960 mm pans

Starter pans come with the machine, and the rotors with blades turn at 70-150 rpm.

Machines for concrete floors

A ride-on trowel works the open floor area, and edges and corners are left to a walk-behind power trowel.

Technical data

Cat. no.: TPT836
Weight: 350 kg
Dimensions: 1960 x 1080 x 1290 mm
Engine type: Two-cylinder, four-stroke
Engine power: 18.5 kW | 25 HP
Speed: 70-150 rpm
Troweling diameter: 2 x 900 mm
Engine model: Rato R740
Power supply: Petrol
Number of blades: 8 pcs
Engine oil capacity: 1.6 l
Gear type: Efficient Helical Gearbox (EHG)

Documents

Instrukcja obsługiPDF · 10.3 MB

Delivery and service

Delivery

We ship machines from our warehouse in Chorzów by courier or on a pallet. You can also collect yours in person in Chorzów.

Before dispatch

Every machine is started and checked before it leaves us.

Service and spare parts

Machine service and spare parts are available in Chorzów. We will confirm the delivery date of a machine or the availability of parts via the contact form.
