Tyrolit · Cat. no. FPE320

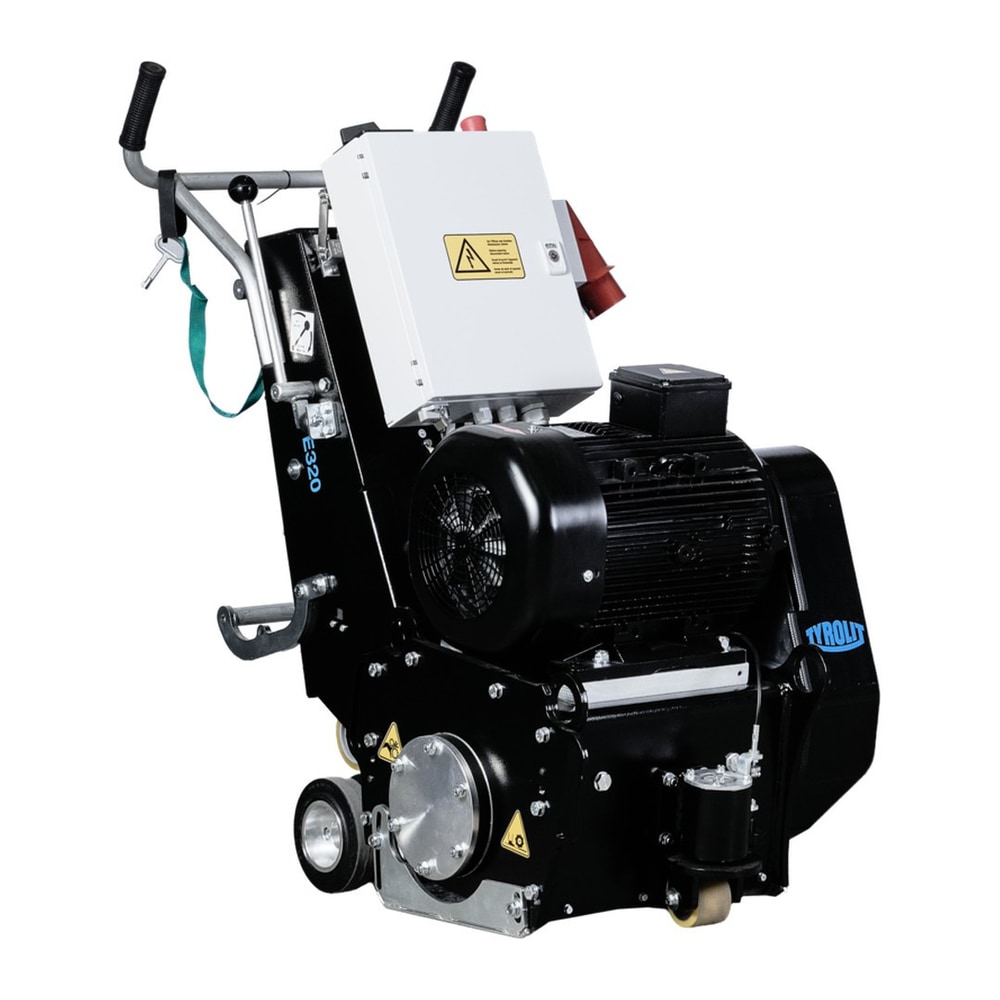

Tyrolit FPE320 Floor Milling Machine / Scarifier
- 270 kg
- 980 x 630 x 1180 mm
- 15 kW
- 50 Hz
Price on request
quoted individually
On order
ships from the supplier's warehouse
Lead time in the quote
together with the price
Fastest by phone
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Expert advice on choosing equipment
Accessories
Description
Tyrolit FPE320 floor scarifier — concrete milling machine, 320 mm working width
A floor scarifier (milling machine) is used for coarse machining of concrete floors: removing coatings, adhesive and terrazzo layers, levelling and roughening surfaces. The Tyrolit FPE320 drives interchangeable drums — diamond, cutter or milling — with a 320/340 mm working width, so it processes large areas efficiently. The 15 kW electric motor (400 V) with continuously variable speed runs smoothly even on hard concrete.
Technical data
Voltage 400 V, motor power 15 kW, rated current 27.9 A, frequency 50 Hz. Working width 320/340 mm, tool speed 1644 rpm. Weight 270 kg, dimensions 980 × 630 × 1180 mm. Air cooling, dry operation.
Applications
Renovation and preparation of concrete floors: removing paint, resin and adhesive residue, levelling and milling concrete and asphalt. For large areas — halls, warehouses, car parks and roads.
Interchangeable drums
Quick drum change matches the machine to the task: cutter drum 80/8 (coating removal), milling flail drum 80/20 (aggressive milling and roughening), diamond-blade drum for a 300 mm blade (cutting and grooving). Adjustable cutting width with spacers.
Dust extraction
Dry operation generates dust — for dust-free milling connect the Tyrolit VCE5522C CT dust extraction system via the extraction port. This keeps the site clean and compliant with safety rules for concrete dust.
Ergonomics and durability
Ergonomic handlebars with an integrated control panel reduce fatigue, heavy-duty bearings ensure low-maintenance operation, and a lifting eye eases transport. The continuously variable drive gives full control over the feed rate.
FPE320 vs FPE320LC
The standard FPE320 (15 kW, 270 kg) handles most jobs. The FPE320LC (18.5 kW, 300 kg) is the heavy-duty variant for the toughest applications and hardest concrete, delivering higher output on the largest areas.
Tyrolit FPE320 scarifier at NORWIT.PL
Buy the Tyrolit FPE320 floor scarifier at the authorised NORWIT.PL store — with the full Tyrolit range, working drums and dust extraction systems. Order online or contact us via the form.
Technical data
- Cat. no.
- FPE320
- Weight
- 270 kg
- Dimensions
- 980 x 630 x 1180 mm
- Engine power
- 15 kW
- Frequency
- 50 Hz
- Typ
- Elektryczny
- Voltage
- 400 V
- Adjustable working width
- 320 / 340 mm
- Prąd znamionowy
- 27,9 A
Gwarancja
.png)
12-miesięczna Gwarancja Tyrolit
Firma Tyrolit oferuje 12-miesięczną gwarancję na swoje produkty, zapewniając pełną ochronę i wsparcie techniczne przez cały rok. Roczna gwarancja obejmuje wszystkie komponenty, co daje pewność niezawodności i wysokiej jakości.
Questions and answers
What is the Tyrolit FPE320 floor scarifier used for?
The FPE320 floor scarifier is used for coarse machining of concrete floors: removing coatings, paint, resin and adhesive, levelling and roughening surfaces. It drives interchangeable drums with a 320/340 mm working width, and the 15 kW motor efficiently processes large areas in halls, warehouses and car parks.
What is the difference between the FPE320 and FPE320LC?
The main difference is power and weight. The FPE320 has a 15 kW motor and weighs 270 kg, while the Tyrolit FPE320LC has 18.5 kW and 300 kg. The LC version is reinforced for the toughest applications and hardest concrete, delivering higher output on the largest areas. Other parameters (320/340 mm working width, 400 V) are the same.
Which working drums fit the FPE320 scarifier?
The FPE320 accepts interchangeable drums: a cutter drum 80/8 for coating removal, a milling flail drum 80/20 for aggressive milling and roughening, and a diamond-blade drum for a 300 mm blade for cutting and grooving. Cutting width is adjusted with spacers (1-8 mm).
Does the FPE320 scarifier need dust extraction?
The FPE320 runs dry and generates large amounts of concrete dust, so connecting an extractor is recommended. Dust-free work is provided by the Tyrolit VCE5522C dust extraction system, connected to the machine extraction port. This keeps the site clean and compliant with silica-dust safety rules.
What area can the FPE320 scarifier process?
With a 320/340 mm working width and 1644 rpm tool speed, the FPE320 is suited to large areas — industrial halls, warehouses, car parks and roads. The continuously variable drive speed lets you match the feed to the concrete hardness and drum type.
What are the technical specifications of the FPE320?
The FPE320 has a 15 kW motor supplied with 400 V, rated current 27.9 A and 50 Hz frequency. Working width is 320/340 mm, tool speed 1644 rpm, weight 270 kg, dimensions 980 x 630 x 1180 mm. Air cooling, dry operation.
