Tyrolit · Cat. no. VCE5522C
Tyrolit VCE5522C CT Dust Extraction System
- H
- 220 kg
- 1020 x 1560 mm
- 5,5 kW
Price on request
quoted individually
On order
ships from the supplier's warehouse
Lead time in the quote
together with the price
Fastest by phone
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Expert advice on choosing equipment
Accessories
Description

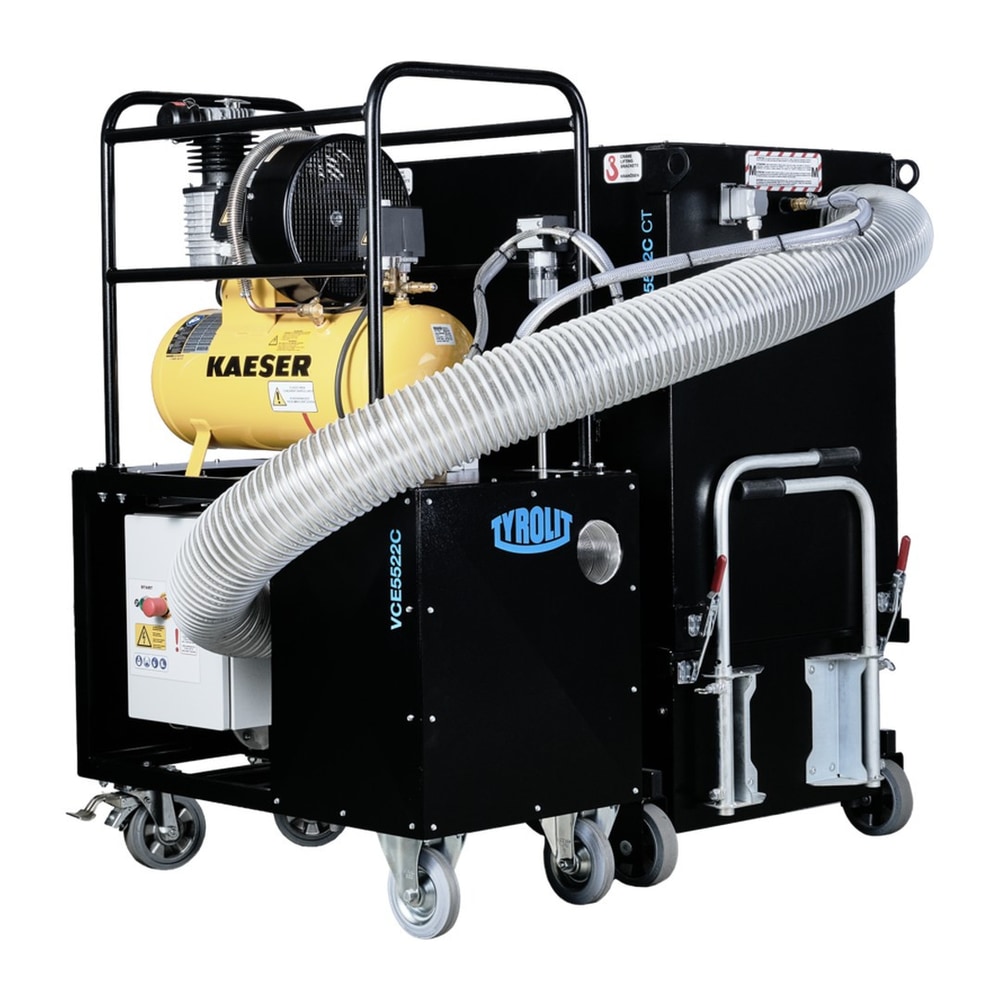

Tyrolit VCE5522C CT dust extraction system — industrial vacuum with HEPA filter
A dust extraction system (industrial dust collector) captures the dust produced when milling, grinding and cutting concrete, protecting the operator and keeping the site clean. The Tyrolit VCE5522C combines strong vacuum pressure with high airflow, and the filter is cleaned automatically by compressed-air pulses. The CT version is a container unit with a removable wheelbarrow (released by 4 levers) and a HEPA filter — ideal for milling machines, grinders and floor saws.
Technical data
Voltage 400 V, power 5.5 kW, rated current 12 A, frequency 50 Hz. Weight 220 kg, dimensions 1020 × 1560 mm. Dust class H, HEPA filter included. Automatic compressed-air filter cleaning.
Applications
Dust extraction for concrete milling and grinding, floor sawing and shot blasting. Suited to construction sites, industrial halls and floor renovation where dust-free work and respiratory protection are required.
CT (container) vs LP (Longopac) version
The VCE5522C is available as CT with a removable dust wheelbarrow (easy emptying, 4 levers) and as LP with the Longopac bagging system. Both can be ordered with a HEPA filter. The CT version is convenient where large amounts of dust must be removed quickly.
HEPA filter and class H
The HEPA filter traps the finest particles (including silica dust from concrete), and dust class H is the highest filtration class for particularly harmful dusts. Automatic filter cleaning keeps suction constant throughout the work.
Works with milling machines
The manufacturer recommends this extractor for milling machines and scarifiers, incl. the Tyrolit FPE320 and Tyrolit FPE320LC. A suction-hose connection ensures dust-free floor milling over large areas.
Mobility
The wheeled design with a removable wheelbarrow makes it easy to move around the site and to empty collected dust quickly without contact with the contents — important for class H dust.
Tyrolit VCE5522C CT dust extraction system at NORWIT.PL
Buy the Tyrolit VCE5522C CT industrial dust extractor at the authorised NORWIT.PL store — with the full brand range, accessories (hoses, adapters, filters) and the milling machines it fits. Order online or contact us via the form.
Technical data
- Cat. no.
- VCE5522C
- Weight
- 220 kg
- Dimensions
- 1020 x 1560 mm
- Engine power
- 5,5 kW
- Frequency
- 50 Hz
- Voltage
- 400 V
- Application
- Na sucho
- Hepa filter
- Tak
- Prąd znamionowy
- 12 A
- Klasa pyłu
- H
Gwarancja
.png)
12-miesięczna Gwarancja Tyrolit
Firma Tyrolit oferuje 12-miesięczną gwarancję na swoje produkty, zapewniając pełną ochronę i wsparcie techniczne przez cały rok. Roczna gwarancja obejmuje wszystkie komponenty, co daje pewność niezawodności i wysokiej jakości.
Questions and answers
What is the Tyrolit VCE5522C CT dust extraction system used for?
The VCE5522C CT dust extraction system is an industrial vacuum that captures dust produced when milling, grinding and cutting concrete. The 5.5 kW motor delivers strong vacuum pressure and high airflow, while the HEPA filter and dust class H protect the operator from the finest particles. The CT version has a removable dust wheelbarrow; total weight is 220 kg.
What is the difference between the CT and LP versions of the VCE5522C?
The CT (container) version has a removable dust wheelbarrow released by 4 levers, making it easy to empty large amounts of dust quickly. The LP version uses the Longopac bagging system. Both can be ordered with a HEPA filter. The 5.5 kW, 400 V power unit is identical; only the filter module differs.
Does the VCE5522C have a HEPA filter and why does it matter?
Yes, the VCE5522C CT has a HEPA filter and dust class H, the highest filtration class for particularly harmful dusts including silica dust from concrete. The filter traps the finest particles, and automatic compressed-air cleaning keeps suction constant throughout the work.
Which machines does the VCE5522C vacuum work with?
The manufacturer recommends the VCE5522C for milling machines, grinders and floor saws, including the Tyrolit FPE320 and Tyrolit FPE320LC. It connects by a suction hose to the machine extraction port, enabling dust-free milling and grinding of concrete over large areas.
How is the filter cleaned in the VCE5522C?
The VCE5522C filter is cleaned automatically by compressed-air pulses during operation, so the filter cartridges do not clog and the vacuum keeps high suction and steady airflow without frequent manual cleaning. This matters when large amounts of fine concrete dust are produced.
What are the technical specifications of the VCE5522C CT?
The VCE5522C CT has a 5.5 kW motor supplied with 400 V, rated current 12 A and 50 Hz frequency. It weighs 220 kg and measures 1020 x 1560 mm. Dust class H, HEPA filter included, dry operation with automatic filter cleaning.
