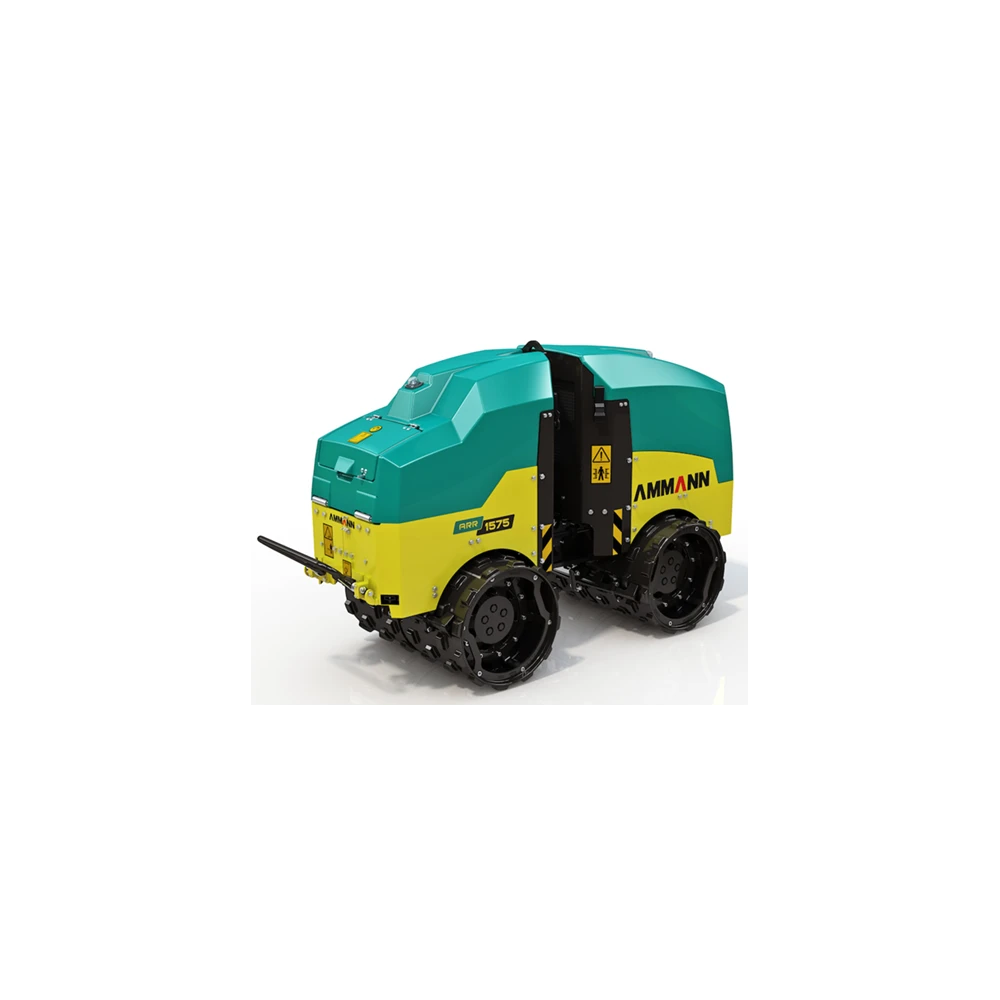

Ammann Rammax ARR 1575 wheeled roller

Reference

ARR1575
Delivery icon

Availability

Technical Data

  • Centrifugal force [ kn ].: 75/38 kN
  • Weight: 1400 kg, 1450 kg
  • Working width: 640 mm lub 850
  • Engine type: 3TNV76
  • Engine power: 20,4km (15,0 kW)
Full Specifications keyboard_arrow_down
Ask for price
Delivery icon

Availability

Technical Data

  • Centrifugal force [ kn ].: 75/38 kN
  • Weight: 1400 kg, 1450 kg
  • Working width: 640 mm lub 850
  • Engine type: 3TNV76
  • Engine power: 20,4km (15,0 kW)
Full Specifications keyboard_arrow_down

Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!

Free delivery over PLN 1,500

24 years on the market

Own warehouse 1200 m²

Returns up to 14 days

Product Details

Reference: ARR1575

Centrifugal force [ kn ].
75/38 kN
Weight
1400 kg, 1450 kg
Working width
640 mm lub 850
Engine type
3TNV76
Engine power
20,4km (15,0 kW)
Frequency
41hz
Engine
Yanmar
Amplify
1,1/0,6 mm
Max working speed
0-45 m/min
Maximum climbing ability
40% z Wibracją, 50% bez Wibracji
Control
Kabel lub poczerwień
Static linear load
11,2 kg/cm, 8,7 kg/cm
Height of the cylinder
1317 mm
Length of the cylinder
2227 mm
Width of the cylinder
640 mm lub 850 mm
