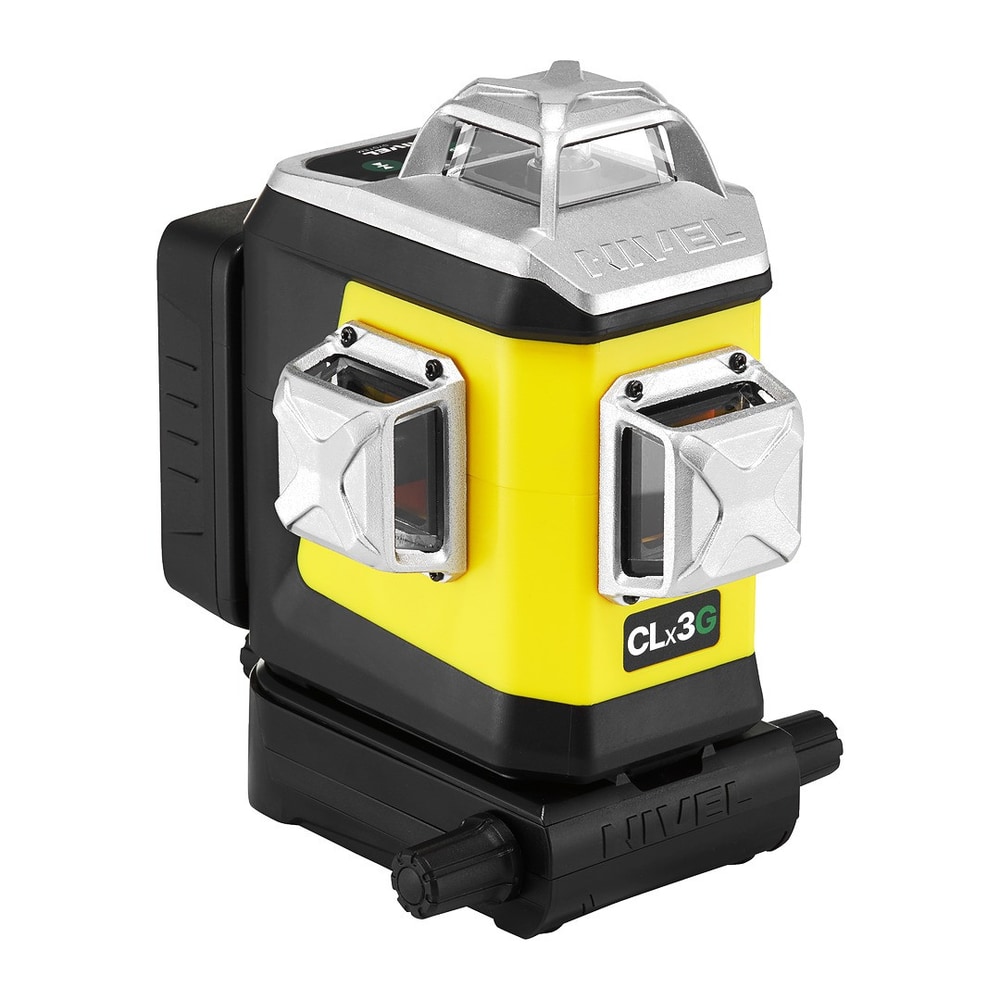

Nivel System CLx3G Green Crossline Laser

Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia

Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.

Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.

Which 360° crossline laser should I choose: 3×360° or 4×360°?

A 3×360° crossline laser such as the Nivel System CLx3G projects 1 horizontal and 2 vertical planes, which is enough for suspended ceilings, drywall partitions, tiling and marking out installations. A 4×360° laser such as the CL4G LCD adds a second horizontal plane and an LCD display. In the Nivel System range both types have the same ±2.0 mm accuracy at 10 m, a 30 m range (70 m with a sensor) and an 8000 mAh battery. The CLx3G stands out with a centring adapter that turns the laser by up to 5° without moving the crossing point of the vertical lines.

Which crossline laser should I choose: green or red?

A green crossline laser such as the CLx3G with a 515 nm beam is easier to see in bright rooms, because the human eye is about 3 times more sensitive to green than to 638 nm red. The red CLx3R is enough in moderately lit rooms and when working after dark. Both have the same specification: 3 planes of 360°, ±2.0 mm accuracy at 10 m and a 30 m working range, extended to 70 m with a sensor, where the beam colour no longer matters.

What is the centring adapter on the CLx3G for?

The AD-CL centring adapter is used to set the direction of the vertical planes precisely without moving the laser. The laser is placed so that the crossing point of the two vertical lines sits over the starting point of the axis, and the knobs on the sides of the adapter turn it left or right by up to 5°. The crossing point of the beams stays where it is. The rear knob moves the laser forwards and backwards. The adapter is held by magnets, can be detached and has 1/4″ and 5/8″ threads in its base for a tripod.

What range does the CLx3G have and which sensor does it work with?

The CLx3G has a 30 m range for a line visible to the naked eye and 70 m with a sensor. With pulse mode switched on (PULSE button) it works with 10 kHz sensors: the manual CLS-5 and the digital CLS-300 DIGITAL, which shows the deviation in millimetres. The sensor lets you work outdoors and in full sun, where the line cannot be seen with the naked eye. In pulse mode the line is slightly dimmer, which is normal and not a fault.

Is a green crossline laser harmful to the eyes?

The green CLx3G crossline laser is class 2, which means a visible beam of up to 1 mW. If you glance into it by accident, the eye is protected by the blink reflex, which takes about 0.25 s. The manufacturer nevertheless forbids aiming the beam at the eyes or at highly reflective surfaces. Keep the laser out of reach of children. For long work in bright interiors, GL-G laser glasses improve the contrast of the green line.

How do I use the CLx3G on a slope?

The CLx3G works on a slope thanks to the compensator lock. With the power switch off, hold the LASER button for 3 seconds: the LED by the button lights up, the pendulum is locked and the line blinks every 5 seconds as a reminder that self-levelling is disabled. The laser can then be tilted at any angle, for example to mark out stairs or attic slopes. Further presses of the LASER button add the vertical planes V1 and V2. In normal mode the compensator levels the lines within ±3.0°.

How long does the CLx3G battery take to charge, and does the laser work while charging?

The 3.7 V 8000 mAh Aku CL 8000 Li-ion battery charges fully in about 4 hours through a USB-C socket, and the CH-CL charger with its cable is in the case. The laser keeps working while charging, so a flat battery does not stop the job. The charge level is shown by an LED indicator when you press the button on the back of the battery. The same pack fits the CL4 LCD and CL5 lasers and the NL 300 and NL 320 levels, and a spare battery can be bought separately.

What is in the CLx3G case?

The Nivel System CLx3G case contains the laser, a laser target plate, a CL-BR multi-adapter, an AD-CL centring adapter, an Aku CL 8000 battery (3.7 V, 8000 mAh), a CH-CL charger with a USB-C cable and the user manual. Glasses are not included. With the adapter the laser weighs 0.84 kg and measures 150 × 110 × 163 mm. The manufacturer's warranty is 12 months and is extended free of charge to 24 months if the laser is registered within 3 months of purchase.
