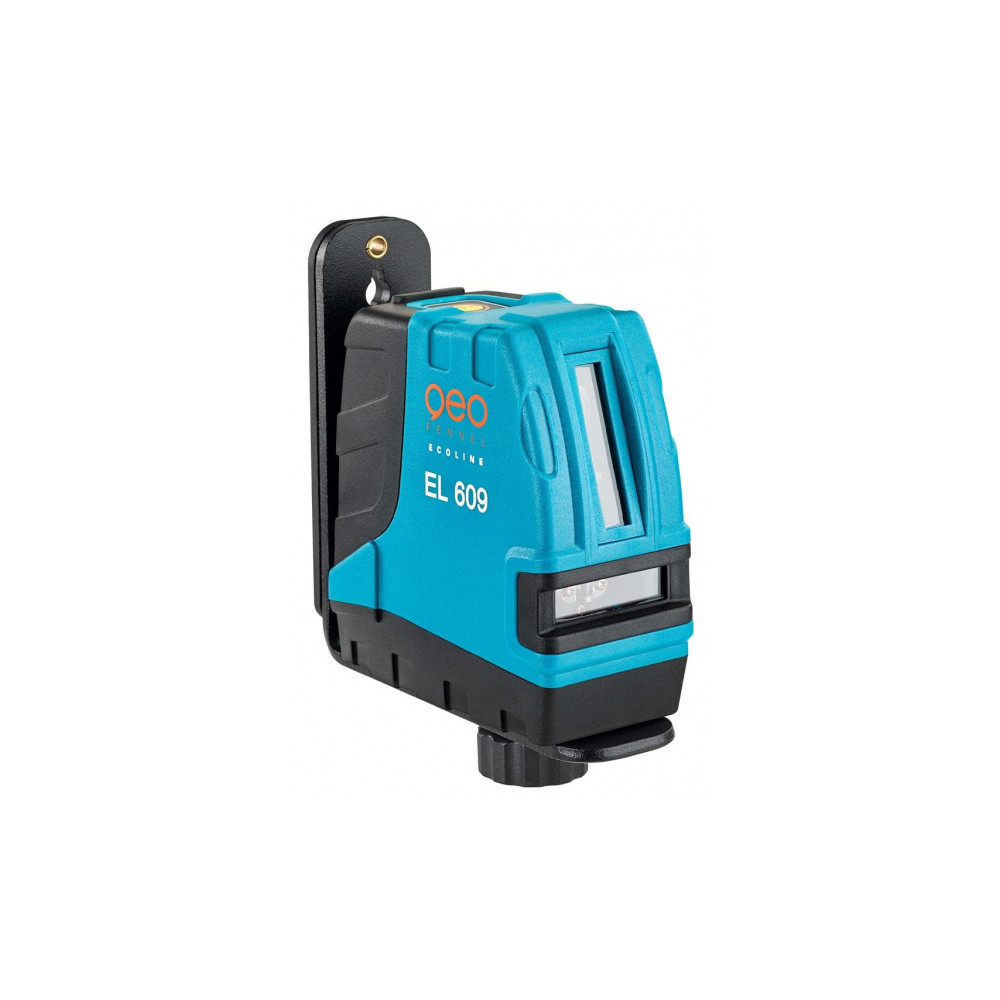

Geo-FENNEL EL 609 dual-line cross line laser
Reference
12-280-20
Reference
Availability
Technical Data
- Weight: 0,4 kg
- Dimensions: 15,5 x 16 x 7 cm
- Brand: Geo-Fennel
- Operating temperature range: -10 °C – +45 °C
- Type of laser beam: Stała
Geo-FENNEL EL 609 dual-line cross line laser - precision and reliability at your fingertips
The geo-FENNEL EL 609 dual-line cross line laser is a tool dedicated to professionals and amateurs alike, who expect the highest precision and versatility in their daily use. Ideal for tasks such as leveling, construction and renovation work, this instrument guarantees ease of use and reliability thanks to its modern features and durable design. Thanks to its IP 54 rating and robust construction, the laser will perform well even in harsh working conditions. The long operating time on a single set of batteries of up to 18 hours allows for uninterrupted operation, which increases efficiency and user comfort.
Compact solution with modern features
The geo-FENNEL EL 609 laser offers key technical features that set it apart from the competition. Its compact dimensions: 15.5 x 16 x 7 cm and light weight: 0.4 kg make it extremely handy, which will surely be appreciated by those working in difficult spatial conditions. Thanks to its fixed laser beam technology and ± 3° automatic leveling range, working with this tool is extremely precise - the accuracy of the instrument is ± 3 mm / 10 m.
The laser has diodes: 2 with a wavelength of 635 nm, generating perfectly visible lines, which allow to work at a maximum range of up to 50 m in the zone of visibility with the receiver. Powered by three ordinary AA alkaline batteries, the laser operates continuously for 18 hours, allowing you to carry out long-term work without having to constantly change batteries. The laser is resistant to harsh weather conditions thanks to its operating temperature range: -10°C to +45°C. It is worth noting that the tool meets the laser safety class: 2, which provides the highest level of protection for the user.
An additional advantage is the 1/4" mounting thread and magnetic mount, which makes it easy to fix the laser anywhere, which translates into even greater flexibility of use.
Geo-FENNEL EL 609 two-line cross line laser - available at NORWIT.PL!
Purchasing geo-FENNEL EL 609 in our store is a guarantee of fast delivery and warranty service. We invite you to explore our full range of cross lasers, where you will find even more professional tools for leveling and precise construction work.
Data sheet
- Weight
- 0,4 kg
- Dimensions
- 15,5 x 16 x 7 cm
- Brand
- Geo-Fennel
- Operating temperature range
- -10 °C – +45 °C
- Type of laser beam
- Stała
- Operating time - battery set
- 18 h
- Instrument accuracy
- ± 3 mm / 10 m
- Enclosure watertightness class
- IP 54
- Laser safety class/wavelength
- 2/635 nm
- Battery power supply
- 3 x AA alkaliczne
- Range of leveling automation
- ± 3°
- Laser diodes number/wavelength
- 2/635 nm
- Diameter of laser visibility zone n/o*
- 36 m / 50 m
- Method of fixing the instrument
- Gwint 1/4'', magnes
