Husqvarna Construction · Cat. no. 546332401

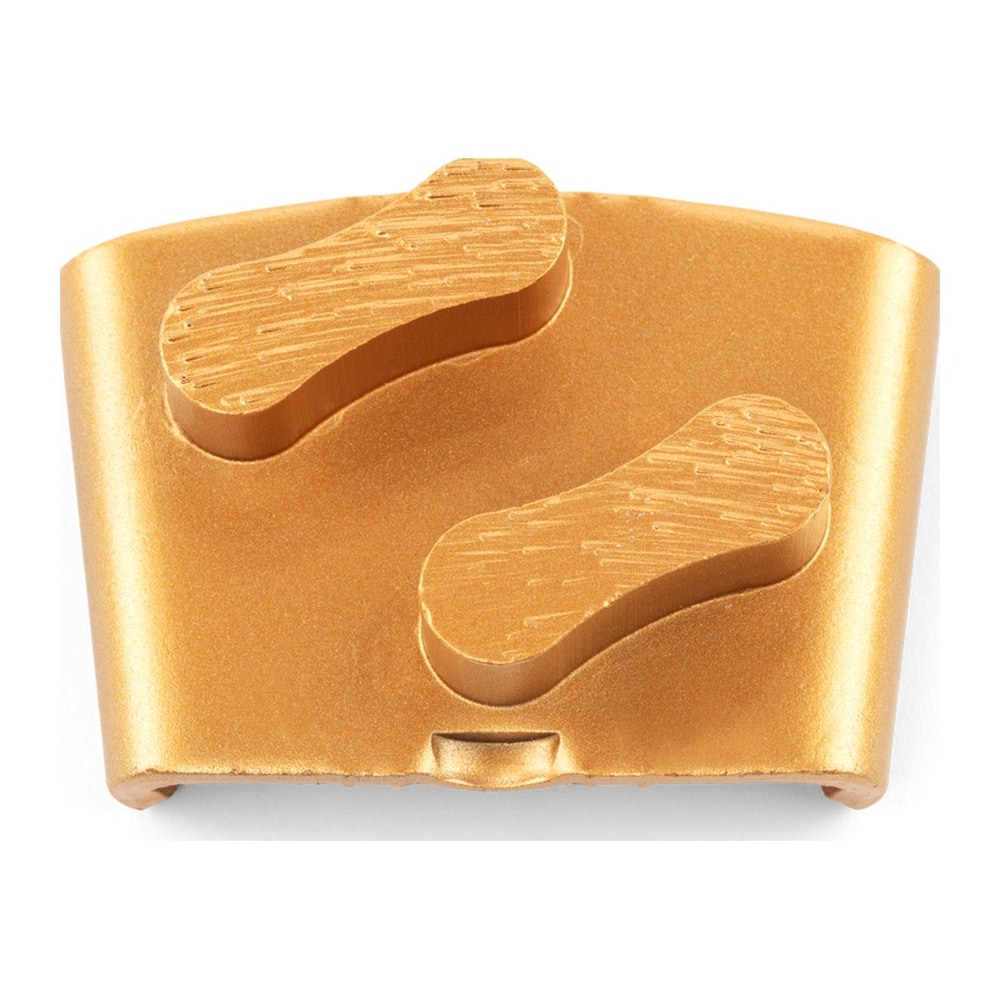

Husqvarna VARI-GRIND EZ M25 diamond grinding segment for medium concrete (set of 3)
- Na sucho
- 11 mm
- Szlifowanie średnio twardego betonu
- EZchange
zł365.68 net
zł449.79 gross
Leasing for businesses
from zł37.82 net / month
Indicative calculation · you set the terms
On order
sourced from the supplier
Ships in about 7 days
from the order date
Arrives a day after dispatch
we will confirm the date with your order
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Free delivery over PLN 3,000
Accessories
Szlifierka podłogowa Husqvarna PG 280
Szlifierka planetarna Husqvarna PG 450
Szlifierka podłogowa Husqvarna PG 400
Husqvarna ELITE-GRIND EZ T-REX Super PCD segment for coating removal (set of 3)
Husqvarna VARI-GRIND EZ T-REX Classic PCD segment for glue removal (set of 3)- Need a different part?We will match it to your machine+48 732 081 091
Description
Husqvarna VARI-GRIND EZ M25 diamond segment – for medium-hard concrete, EZchange connector
The Husqvarna VARI-GRIND EZ M25 is a metal-bond diamond grinding segment mounted directly in the disc of a concrete floor grinder. The block carries two working segments 11 mm high with grit 25, and locks into the disc through the EZchange connector – no screws, no adapter plates. It is designed for concrete rated 3 to 5 on the Mohs scale, which covers typical industrial slabs and screeds that need opening, levelling or preparing for a further coat. Supplied as a set of 3.
Substrate hardness and bond choice
The letter M marks a bond matched to medium-hard concrete (3–5 Mohs). The VARI-GRIND EZ range also covers soft and hard concrete, and the rule is the opposite of what intuition suggests: the harder the substrate, the softer the bond, because the diamond has to keep exposing itself. A wrongly matched segment either glazes over and stops cutting, or wears out within hours.
Grit 25 – coarse grinding
Grit 25 is a coarse grain for the first pass: removing cement laitance, levelling out unevenness and opening the pores of the concrete. The range also offers grit 50 and 100 for the passes that follow. The higher the number, the finer the grain and the smoother the finish left behind.
EZchange mounting
EZchange is Husqvarna's quick tool-change system – the segment slides into the disc socket and locks without a key. Machines running this system include the Husqvarna PG 280 floor grinder, PG 400 and PG 450. Older machines with Redi Lock mounting need a conversion kit to EZchange.
How many per disc
A set of 3 is the minimum needed to start work. A 6-piece fit, meaning two sets, spreads the pressure more evenly, runs the machine more smoothly and doubles the time to replacement – which is why it is recommended for larger areas. Segments wear unevenly, so they are replaced as a full set rather than one at a time.
Dry operation
The segment works dry, paired with an industrial vacuum of adequate capacity. Grinding concrete without extraction produces silica dust and sharply shortens diamond life, because the debris starts acting as an extra abrasive between the segment and the slab.
When to choose a metal-bond segment
Metal-bond segments such as the VARI-GRIND EZ M25 handle the removal and levelling stage. Polishing and gloss are the job of resin pads with grits from 50 upwards. A full floor treatment usually takes 3 to 5 passes: from grit 25 in metal to several hundred grit in resin.
Husqvarna diamond segments at NORWIT.PL
We supply Husqvarna Construction diamond tools and floor grinders together with accessories. Other segments and pads are listed under diamond segments and pads. If you are unsure which bond and grit suit your floor, write to us through the contact form – we will match the set to your machine and to the hardness of the concrete.
Technical data
- Cat. no.
- 546332401
- Cooling
- Na sucho
- Segment height
- 11 mm
- Application
- Szlifowanie średnio twardego betonu
- Mounting
- EZchange
- Gradation (grain size)
- 25
- Destination
- Średnio twardy beton
- Number of segments
- 2
- Kompatybilność
- Husqvarna PG 280 | PG 400 | PG 450 | PG 8
Gwarancja
.png)
Standardowa 12-miesięczna Gwarancja Husqvarna
Firma Husqvarna zapewnia 12-miesięczną gwarancję na wszystkie swoje produkty. To standardowy okres ochrony, który daje pewność jakości i niezawodności każdej maszyny zakupionej od tego producenta.
Wybierając produkty Husqvarna, inwestujesz w sprzęt objęty roczną gwarancją, która obejmuje wszystkie elementy i podzespoły, gwarantując ich sprawne działanie przez cały rok.
Questions and answers
Does the VARI-GRIND EZ M25 segment fit the Husqvarna PG 280 grinder?
Yes. The segment uses the EZchange connector and the current version of the Husqvarna PG 280 floor grinder runs exactly this system — the manufacturer lists EZ tools as accessories for that machine. PG 400 and PG 450 also use EZchange. Older PG 280 units were sometimes built with Redi Lock mounting; those need a conversion kit to EZchange or Redi Lock segments instead.
How many segments should be fitted — 3 or 6?
A set of 3 is the minimum needed to start work. A 6-piece fit, meaning two sets, spreads the pressure more evenly, steadies the machine and doubles the time to replacement, which is why it is recommended for larger areas. Segments are replaced as a full set rather than one at a time, because they wear unevenly.
What concrete is the M25 version made for?
The letter M marks a bond matched to medium-hard concrete, rated 3 to 5 on the Mohs scale. That covers the typical industrial slab and cement screed. The manufacturer offers different bonds in the same range for soft and for hard concrete.
What does grit 25 mean?
Grit 25 is a coarse grain intended for the first pass: removing cement laitance, levelling out unevenness and opening the pores of the concrete. The VARI-GRIND EZ range also offers grit 50 and 100 for later passes. The higher the number, the finer the grain and the smoother the surface.
Why does harder concrete call for a softer bond?
Diamond keeps cutting only as long as it protrudes above the bond. On hard concrete the grain wears quickly, so the bond has to give way just as quickly and expose fresh grains — hence a soft bond. On soft concrete, where the grain wears slowly, a hard bond holds the diamond longer. A mismatched segment either glazes over and stops cutting, or disappears within hours.
Does the segment work dry or wet?
The segment works dry, paired with an industrial vacuum of adequate capacity. Grinding concrete without extraction produces silica dust and shortens diamond life, because debris trapped under the block starts acting as an extra abrasive.
What are the dimensions of the working segment?
The block carries two working segments 11 mm high. Segment height is the reserve of abrasive material and therefore what determines tool life: the taller the segment, the more square metres it will grind before replacement.
