Nivel System · Cat. no. CL4R-LCD-zestaw1

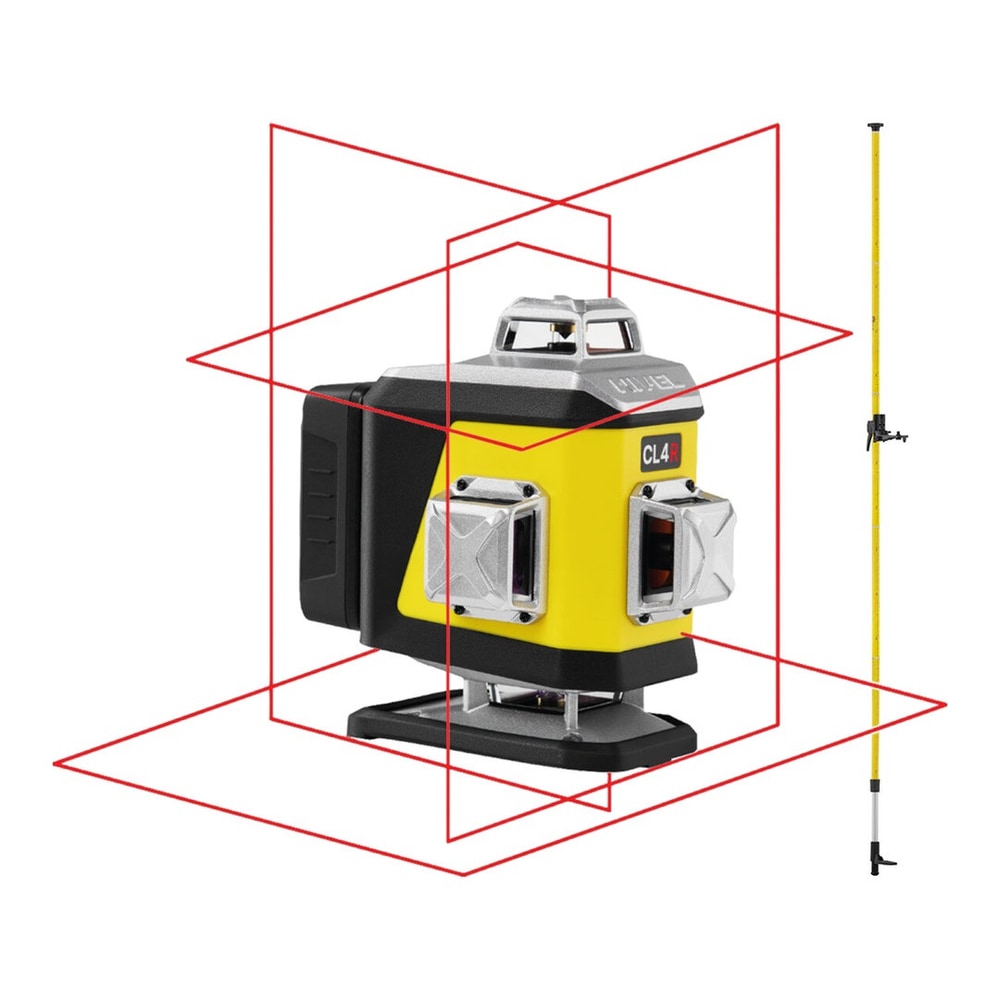

Nivel System CL4R LCD Red Crossline Laser Kit + LP-36 Spreader Pole
- Red
- 920 g
- 148 x 90 x 151 mm
- Bluetooth receiver
zł1,516.26 net
zł1,865.00 gross
Leasing for businesses
from zł50.64 net / month
Indicative calculation · you set the terms
On order
sourced from the supplier
Ships in about 7 days
from the order date
Arrives a day after dispatch
we will confirm the date with your order
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Free delivery over PLN 3,000
Accessories
Telescopic Staff Nivel System LS-24
Laser Glasses Nivel System GL-R
Nivel System SJJ-M1 EX Tripod
Spreader Pole With Tripod Nivel System LP-36 EX
Nivel System TR-R Laser Target Plate
Nivel System CLS-5 Laser Sensor
Nivel System CLS-300 DIGITAL Laser Sensor
Nivel System SJJ-M10 MOTOR Motorized Laser Tripod
Nivel System CLS-10 MOTOR Laser Sensor- Need a different part?We will match it to your machine+48 732 081 091
Description
Kit: Nivel System CL4R LCD crossline laser (red) + LP-36 Spreader Pole
A ready-made kit for suspended ceilings and drywall installation. The Nivel System CL4R LCD 4×360° crossline laser with a red 638 nm beam projects 2 horizontal and 2 vertical planes with ±2.0 mm accuracy at 10 m, has a 30 m range (70 m with a sensor), an LCD display and an 8000 mAh battery. The manufacturer adds the LP-36 Spreader Pole to the kit.
What is in the kit
The kit contains the Nivel System CL4R LCD crossline laser in its transport case plus the LP-36 spreader pole. The laser case also holds a TR-W target plate, two FTR-W floor targets, a CL-BR multi-adapter, an LF-1 lift, an Aku CL 8000 battery and a USB-C charger. Glasses are not included. With a red beam, GL-R glasses are useful. Buying the kit gives you components the manufacturer has matched to the CL4 LCD series.
LP-36 spreader pole
The aluminium LP-36 pole braces between floor and ceiling and extends to 3.6 m. With the laser mounted on the pole you set it at the chosen height without a tripod taking up floor space, which makes installing suspended ceilings, drywall framing and wall cabinets easier. The pole needs no drilling and moves from room to room in seconds.
The CL4R LCD laser in numbers
The CL4R LCD projects 4 planes of 360° (2 horizontal and 2 vertical) with a class 2 red 638 nm beam. Accuracy is ±2.0 mm at 10 m, working range 30 m, and 70 m with a sensor. The magnetic compensator levels the lines within ±3.0° and beeps when the laser is out of level. The 8000 mAh battery charges over USB-C in about 4 h, the housing is IP54 and the laser weighs 920 g. The LCD display shows the active planes and battery status.
What is new in the CL4 LCD series
Compared with the previous CL4, five things have changed. The top of the housing carries an LCD display showing the active planes, battery level and out-of-level status. Battery capacity has grown from 4000 to 8000 mAh. The laser gives an audible warning when it is outside the ±3.0° compensator range. A violet-beam CL4V LCD has joined the series. The glasses are no longer in the case, which now has room for an optional sensor with a bracket.
±3.0° compensator and slope mode
The magnetic compensator self-levels the lines within ±3.0°. When the laser stands too far off level, all active planes flash quickly and a beeper sounds. To mark lines at an angle, for example stairs or attic slopes, hold the LASER button for about 3 s with the power switch off: the pendulum is locked and the line blinks every 6–7 s as a reminder that self-levelling is disabled. Always transport the laser with the compensator locked.
8000 mAh battery, USB-C, app
The 3.7 V / 8000 mAh Li-ion battery charges through a USB-C socket in about 4 hours, also while the laser is running, and doubles as a power bank for a phone. The laser connects over Bluetooth to the NIVEL CL app for Android and iOS, where you switch planes and modes. The IP54 housing protects against dust and water splashes, and the operating temperature range is -10 °C to +50 °C. The laser weighs 920 g, measures 148 × 90 × 151 mm and has 1/4″ and 5/8″ mounting sockets.
Buy the Nivel System CL4R LCD kit at NORWIT.PL
Order the kit with the CL4R LCD laser by Nivel System online at NORWIT.PL. Other kits with a pole, tripod and sensors are in the crossline laser sets category, and the laser on its own and other models in the crossline lasers category. If you are not sure which kit to choose, contact us through the form.
Technical data
- Cat. no.
- CL4R-LCD-zestaw1
- Weight
- 920 g
- Dimensions
- 148 x 90 x 151 mm
- Bluetooth receiver
- Tak
- Brand
- Nivel System
- Power supply
- 3,7 V (Li-ion, 8000 mAh)
- Operating temperature range
- -10 °C do +50 °C
- Leveling accuracy
- ±2,0 mm / 10m
- Self-leveling range
- ±3,0°
- Slope of the planes
- Tak
- Generated planes
- 2 x poziomo (360°), 2 x pionowo (360°)
- Tripod mount
- 1/4", 5/8"
- Working range
- 30 m (70 m z czujnikiem)
- Type of laser beam
- Laser czerwony (638 nm), klasa 2
- Resistance class
- Ip54
- Kolor lasera
- Red
- Cooperation with the receiver
- CLS-5 | CLS-300 DIGITAL
- Number of laser lines 360
- 4 linie
- Display
- LCD
- Charging time
- ok. 4 h
- Set contents
- laser krzyżowy CL4R LCD | tyczka rozporowa LP-36 | tarcza TR-W | 2× tarczka podłogowa FTR-W | multiadapter CL-BR | winda LF-1 | akumulator Aku CL 8000 | ładowarka USB-C | walizka transportowa
Gwarancja
Gwarancja Nivel System: 12 miesięcy ochrony z możliwością przedłużenia
Firma Nivel System oferuje swoim klientom 12 miesięcy ochrony gwarancyjnej na wszystkie swoje produkty. Dodatkowo, istnieje możliwość przedłużenia gwarancji do 2 lat po zarejestrowaniu produktu. Dzięki temu, użytkownicy mogą cieszyć się jeszcze dłuższym okresem niezawodności i wsparcia technicznego.
Roczna gwarancja obejmuje wszystkie komponenty i podzespoły, a rejestracja produktu pozwala na wydłużenie ochrony do 24 miesięcy. To dodatkowe zabezpieczenie zapewnia bezproblemowe użytkowanie przez dłuższy czas.
Questions and answers
Which CL4R LCD kit should I choose?
The CL4R LCD kit is chosen for the type of work. The kit with the LP-36 pole (3.6 m spreader pole) is for suspended ceilings and drywall. The kit with the SJJ-M1 EX tripod (0.62–1.82 m) suits interior work at different heights. For halls and outdoor work, where the line is invisible, choose the kit with the tripod and CLS-5 sensor with LED readings or with the tripod and CLS-300 DIGITAL sensor with a millimetre readout. With a sensor the range grows from 30 to 70 m.
What is the difference between the CLS-5 and CLS-300 DIGITAL sensors?
The CLS-5 and CLS-300 DIGITAL sensors both pick up a 10 kHz beam in four colours and extend the laser range to 70 m, but they show the line position differently. The CLS-5 indicates it with LEDs and a beeper to 1.0 mm, weighs 0.15 kg and runs on 2 AAA batteries. The CLS-300 DIGITAL has a display showing the distance from zero in a 70 mm window, three accuracy modes of 1.0, 2.0 and 5.0 mm, weighs 0.3 kg and runs on 4 AAA batteries.
What is the LP-36 spreader pole used for?
The LP-36 spreader pole is an aluminium mast with a maximum length of 3.6 m that braces between floor and ceiling and holds the laser at the chosen height. It replaces a tripod where free floor space matters: installing suspended ceilings, plasterboard framing and wall cabinets. The pole needs no drilling and moves between rooms in seconds.
Which tripod is in the kit and how high will it raise the laser?
Kits 2, 3 and 4 include the Nivel System SJJ-M1 EX tripod, weighing about 3 kg, with a 3D head and height adjustment from 0.62 to 1.82 m. It lets you set the horizontal plane at worktop, window sill, socket or suspended ceiling height. The laser attaches through its 5/8 inch or 1/4 inch socket, and the LF-1 lift from the laser case handles fine height adjustment.
From what distance does a sensor pick up the CL4 LCD beam?
A CLS-5 or CLS-300 DIGITAL sensor picks up the CL4 LCD beam from up to 70 m when the laser runs in pulse mode, enabled with the PULSE button. The minimum distance between sensor and laser is 2 m, or 4 m in difficult conditions, because at close range the sensor may react to beam afterglow. Pulse mode works both in self-levelling and in slope mode.
What is in the CL4R LCD kit case, and are glasses included?
The CL4R LCD laser case contains the laser, a TR-W target, 2 FTR-W floor targets, a CL-BR multi-adapter, an LF-1 lift, an Aku CL 8000 battery and a USB-C charger. The kit also includes the LP-36 pole or the SJJ-M1 EX tripod, and kits 3 and 4 a sensor as well. The CL4 LCD series has no glasses. With a red beam, GL-R glasses are useful.
