Technical Data
- Weight: 0,25 kg
- Dimensions: 160 x 80 x 26 mm
- Automatic shutdown: Po 30 min
- Brand: Nivel System
- Power supply: 4 x AAA
Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!
Free delivery over PLN 3,000
25 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Accessories
-
Nivel System CL3R Red Crossline Laser
zł1,293.00 tax incl. 1051,22 zł tax excl. -
Nivel System CL4R Red Crossline Laser
zł1,510.00 tax incl. 1227,64 zł tax excl. -
Nivel System CL5R Red Crossline Laser
zł2,816.70 tax incl. 2290,00 zł tax excl. -
Laser krzyżowy Nivel System CLx3R czerwony
zł1,955.70 tax incl. 1590,00 zł tax excl. -
Nivel System SJJ-M10 MOTOR Motorized Laser Tripod
zł1,390.00 tax incl. 1390,00 zł tax excl.
Description

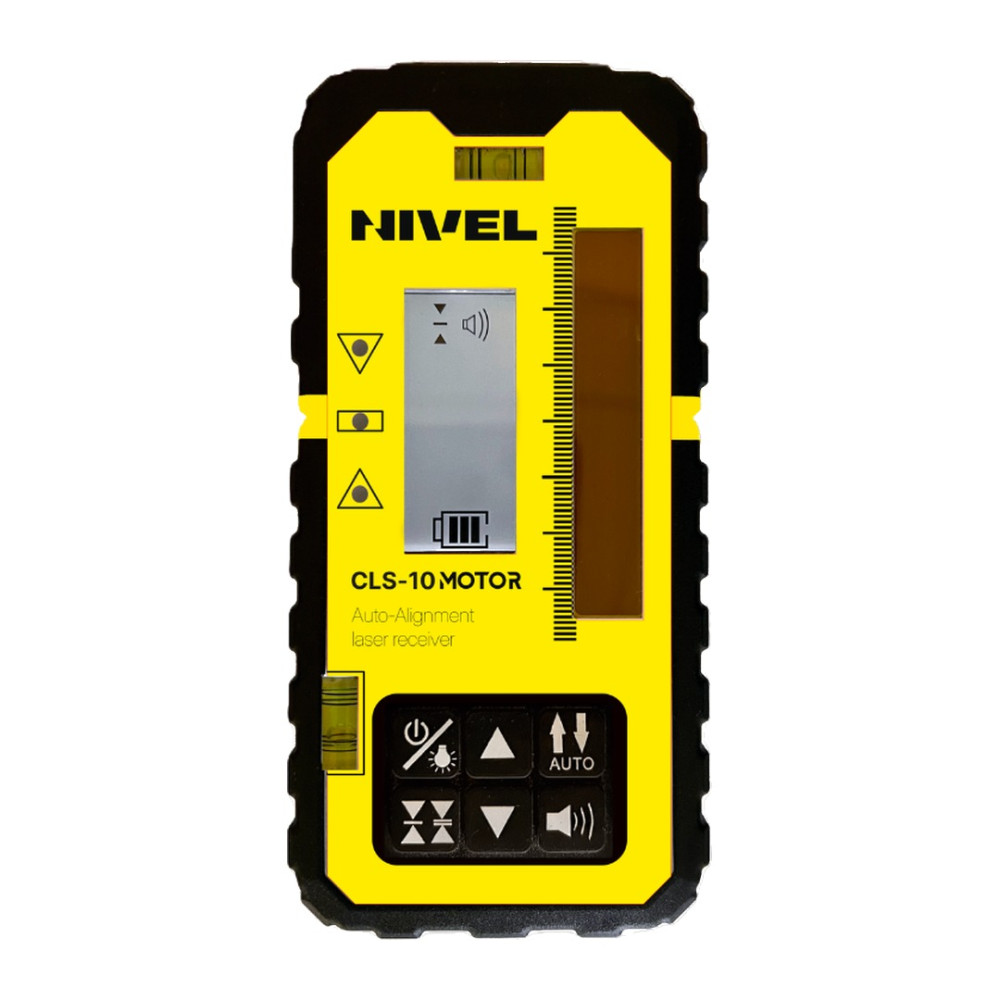

Nivel System CLS-10 MOTOR laser sensor – auto-alignment with the SJJ-M10 tripod
The Nivel System CLS-10 MOTOR is a laser sensor (receiver) for cross-line lasers that supports automatic beam alignment together with the motorized SJJ-M10 MOTOR tripod. It works with Nivel System CL series cross-line lasers (red, green, blue and violet beams).
Auto-alignment and wide range
The sensor communicates with the tripod by radio and aligns the beam to its centre point over up to 20 m. A 70 mm reception band, two accuracy modes — ±1 mm/10 m (precise) and ±2 mm/10 m (rough) — with an audible hit indicator.
Compatibility and power
Compatible with CL1/CL2/CL3/CL4/CL5 cross-line lasers at 5 kHz and 10 kHz. Powered by 4 × AAA, auto shut-off after 30 min, operating range -10 °C to 50 °C, dimensions 160 × 80 × 26 mm, weight 0.25 kg. Rod bracket included.
Order the CLS-10 MOTOR sensor at NORWIT.PL
Match the sensor to the motorized tripod and work solo. See the receivers and detectors and the Nivel System range at NORWIT.PL.
Product Details
Indeks:
CLS-10 MOTOR
- Weight
- 0,25 kg
- Dimensions
- 160 x 80 x 26 mm
- Automatic shutdown
- Po 30 min
- Brand
- Nivel System
- Power supply
- 4 x AAA
- Operating temperature range
- -10 °C - 50 °C
- Leveling accuracy
- 1,0 / 2,0 mm
- Detection range
- 70 mm
- Laser beam reception
- Wiązka czerwona, zielona, niebieska i fioletowa
- Auto-fit function
- Tak — ze statywem SJJ-M10 MOTOR (do 20 m)
- Kompatybilność
- CL1 | CL2 | CL3 | CL4 | CL5 (5 kHz / 10 kHz)
Questions and answers
What is the CLS-10 MOTOR sensor for?
The CLS-10 MOTOR is a laser receiver that, together with the motorized SJJ-M10 MOTOR tripod, automatically aligns the laser beam to the sensor centre point over up to 20 m.
Which lasers does the CLS-10 MOTOR work with?
It works with Nivel System CL1/CL2/CL3/CL4/CL5 cross-line lasers at 5 kHz and 10 kHz, with red, green, blue and violet beams.
What is the auto-alignment range?
Beam auto-alignment works up to 20 m — the sensor communicates with the tripod by radio and signals a hit audibly. The reception band is 70 mm.
What accuracy does the CLS-10 MOTOR offer?
The sensor works in two modes: precise ±1 mm/10 m and rough ±2 mm/10 m, letting you match accuracy to the task.
What power and dimensions does it have?
Power 4 × AAA, auto shut-off after 30 min, operating range -10 °C to 50 °C, dimensions 160 × 80 × 26 mm, weight 0.25 kg. Rod bracket included.
How does the CLS-10 differ from the CLS-310 DIGITAL?
The CLS-10 MOTOR aligns with the motorized SJJ-M10 tripod, while the CLS-310 DIGITAL is a digital receiver with auto-alignment for CLx3 MOTOR lasers and a numeric height-difference readout.
