Toolsa · Cat. no. TA-DV30

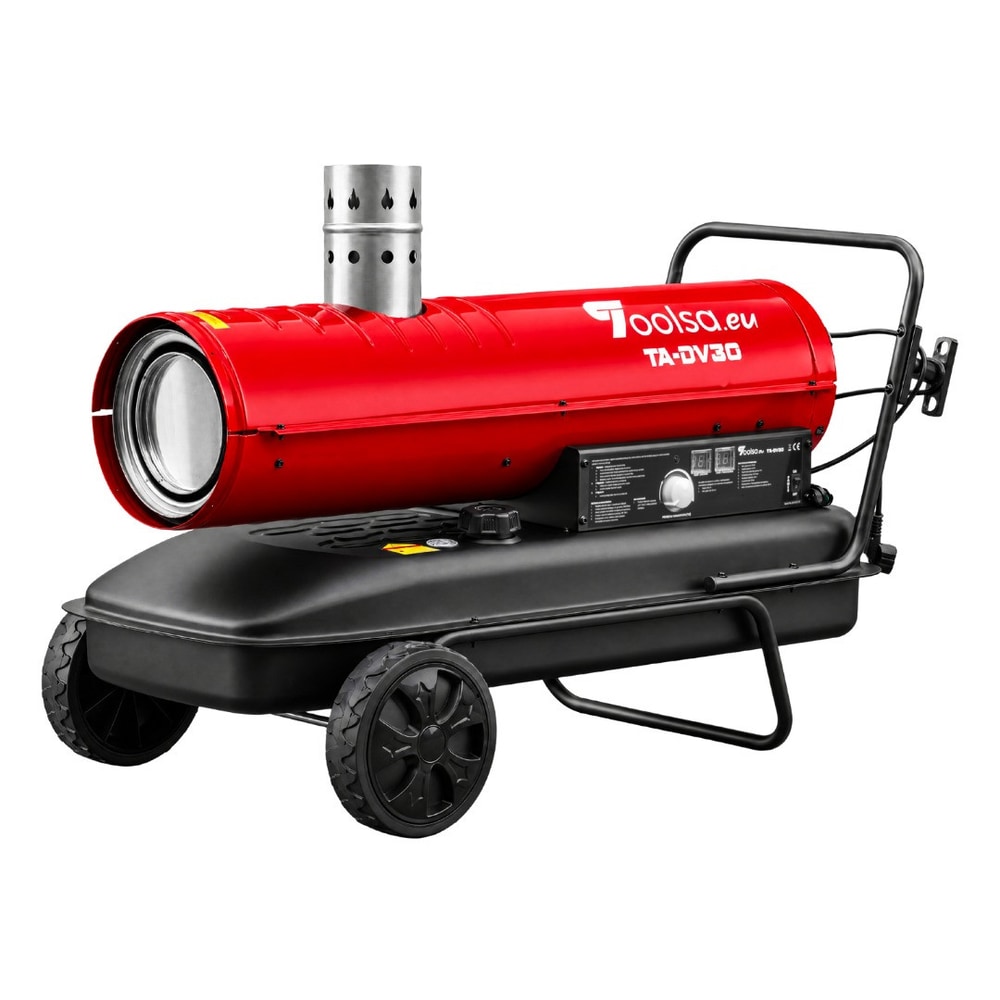

Toolsa TA-DV30 Indirect Diesel Heater (30 kW)
- 30.5 kg
- 1100 x 550 x 600 mm
- 50 Hz
- 230 V
zł2,200.00 net
zł2,706.00 gross
Leasing for businesses
from zł73.47 net / month
Indicative calculation · you set the terms
ING leasing is not available for this amount — call us and we will arrange financing +48 732 081 091
In stock
25 pcs in stock
Same-day dispatch
order by 13:00
Arrives next day
on working days
Prefer to talk? +48 732 081 091
- 25 years on the market
- Own warehouse 1200 m²
- Returns up to 14 days
- Free delivery over PLN 3,000
Accessories
Toolsa TA-ER2C Electric Heater
Toolsa Electric Heater TA-ER3C
Toolsa TA-DV20 Indirect Diesel Heater (20 kW)
Toolsa TA-DV50 Indirect Diesel Heater (50 kW)
Toolsa Flue Pipe for Heaters (⌀110 mm × 1 m, TA-DV20 | TA-DV30 | TA-DV50)
Toolsa Flue Rain Cap for Heaters (⌀110 mm, TA-DV20 | TA-DV30 | TA-DV50)
Toolsa 90° Flue Elbow for Heaters (⌀114 mm, TA-DV20 | TA-DV30 | TA-DV50)
Toolsa Flexible Heater Ducting ⌀250 mm × 10 m with Hose Clamp (TA-DV20 | TA-DV30)- Need a different part?We will match it to your machine+48 732 081 091
Description
Toolsa TA-DV30 indirect diesel heater with flue — 30 kW of clean heat for large halls
If you need to heat a space of up to 480 m³ and want to keep combustion gases out of it, the Toolsa TA-DV30 is built for exactly that. It runs on diesel fuel, delivers 30 kW of heat output and has a flue outlet for a separate chimney pipe — only warm, clean air stays inside the room.
Toolsa TA-DV30 up close
Clean heat with no fumes indoors
Indirect diesel heater rated at 30 kW for heating halls, workshops and buildings under construction.
- Power
- 30 kW
- Fuel consumption
- 2.9 l/h
- Fuel tank
- 50 l
Heat output for frosty days
30kW
Heat output matched to spaces of up to 480 m³ — choosing a heater starts with the hall volume.
Compare Toolsa heaters
- 10 kW more heat output
- 1 l/h higher fuel consumption
- 401 zł more (net)
- 1.7 l/h lower fuel consumption
- 800 zł less (net)
- 20 kW less heat output
TA-DV30 advantagewhat you pay for it
Clean heat in, flue gases out
Only warm air reaches the heated space, while combustion gases leave through the flue pipe. Combustion efficiency is approx. 80%.
2.9l/h
Economical running on one fill-up
The 50 l tank with a fuel level gauge lets the heater run through a full shift without topping up.
Flue gas outlet
The chimney stub takes a ⌀110 mm flue pipe that carries combustion gases out of the heated room.
Powerful heat output
The fan drives air around the combustion chamber and blows it out at the front, straight into the work area.
Easy repositioning
Wheels and a rear handle let you roll the cooled-down heater to a new spot on site.
Motor and fan
A high-power motor drives the fan, and the guard protects its blades from contact.
Assemble the flue system
The pipe, elbow and cap fit every model in the series, and a flexible duct can be connected to the hot-air outlet.
Temperature under control
The thermostat knob sets the temperature, while the displays show the set point and the current room temperature.
Heat exactly where needed
- Toolsa TA-DV20
- TA-DV30
Safety features as standard
photocell monitors the flameoverheat protectionfuse-protected electrics
If the flame goes out, the photocell cuts the power and shuts the heater down, and the thermal cut-out stops it if it overheats.
Predictable servicing
fuel filter: twice a seasonnozzle and photocell: once a seasonspark plug: every 600 htank flush: every 200 h
The maintenance schedule from the manual lets you plan servicing before the heating season and avoid downtime in frosty weather.
Complete site heating
Complete the flue with heater accessories, and heat open areas with a direct heater.
Technical data
- Cat. no.
- TA-DV30
- Weight
- 30.5 kg
- Dimensions
- 1100 x 550 x 600 mm
- Frequency
- 50 Hz
- Voltage
- 230 V
- Power
- 30 kW
- Fuel
- Diesel
- Fuel tank
- 50 l
- Fuel consumption
- 2.9 l/h
- Ignition
- Continuous spark ignition
- Thermostat control
- Yes
- Recommended area
- up to 480 m³
- Air flow
- 1,100 m³/h
In the box
1 pcsToolsa TA-DV30 Indirect Diesel Heater (30 kW)
1 pcsUser manual
Documents
Questions and answers
How much fuel does the Toolsa TA-DV30 heater use?
The Toolsa TA-DV30 oil-fired heater consumes 2.9 l of diesel fuel per hour at a heat output of 30 kW. It sits in the middle of the Toolsa range of flued heaters: the smaller Toolsa TA-DV20 heater rated at 20 kW uses 1.9 l/h, and the more powerful 50 kW TA-DV50 uses 4.6 l/h. Thermostat control reduces consumption in practice, because the heater switches itself on and off once the set temperature is reached instead of running continuously.
How many hours does the TA-DV30 fuel tank last?
The fuel tank of the Toolsa TA-DV30 holds 50 l, which at a consumption of 2.9 l/h gives around 17 hours of continuous operation on a single fill. This is calculated from the tank capacity and the rated fuel consumption. The actual time depends on the set temperature, as the thermostat switches the heater on and off by itself. In practice, one fill lasts a full working day in a hall, workshop or warehouse with a volume of up to 480 m³.
Can the TA-DV30 heater be used in an enclosed room?
The Toolsa TA-DV30 is an indirect (flued) diesel heater that directs combustion gases into a separate chimney pipe led outside, so only warm, clean air remains in the room. This makes it suitable for heating enclosed production halls, workshops and warehouses with a volume of up to 480 m³ at 30 kW, and you can stay next to the running heater all day. The condition is a correctly connected flue pipe.
What is the difference between a flued heater and a heater without a flue?
A flued (indirect) heater such as the TA-DV30 separates combustion gases from the heated air and removes them through a chimney pipe, so it is suitable for enclosed rooms. A heater without a flue (direct-fired), e.g. the Toolsa TA-D215 diesel heater rated at 63 kW, releases all its heat together with the combustion gases into the surroundings and is intended for open or well-ventilated spaces. The TA-DV30 delivers 30 kW of clean heat for a volume of 480 m³, while the TA-D215 heats up to 1260 m³ on a construction site or in a hangar.
Which duct fits the TA-DV30 heater?
The Toolsa TA-DV30 heater takes the Toolsa ⌀250 mm flexible duct, 10 m long, designed for the TA-DV20 and TA-DV30 models. The duct connects to the hot air outlet and lets you direct the stream of heat to the exact spot in a hall or workshop where it is needed most. It is a duct for distributing warm air, not for exhausting combustion gases. For the TA-DV50 heater, a 300 mm diameter duct is intended.
